Description:

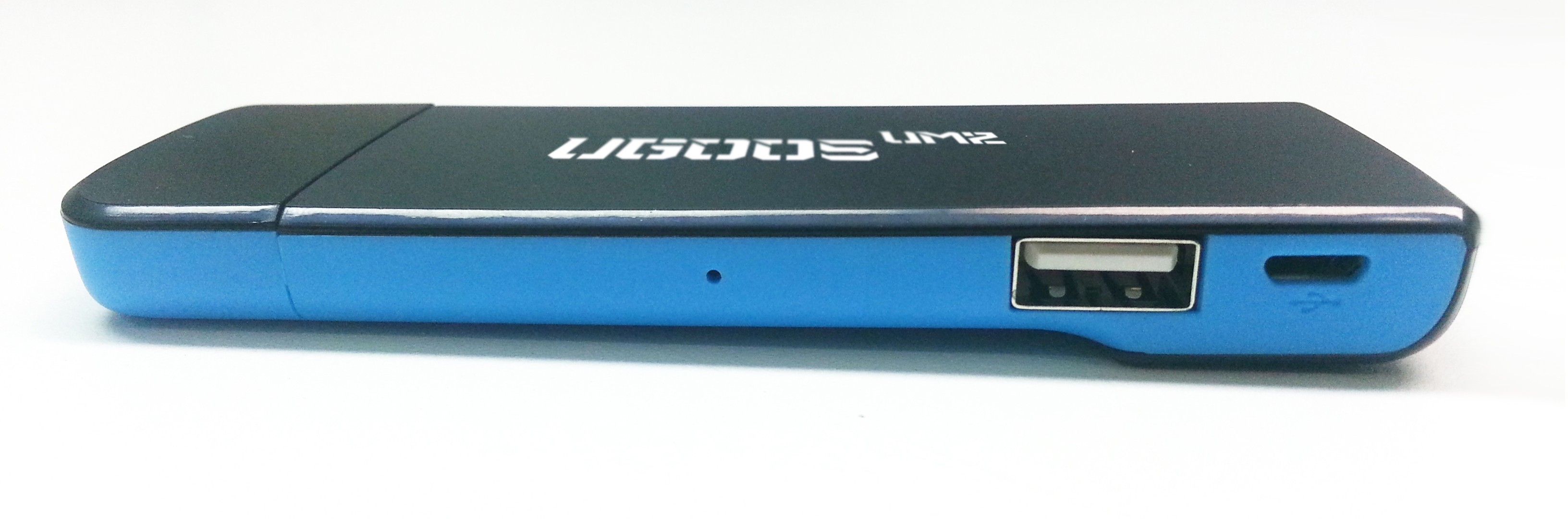

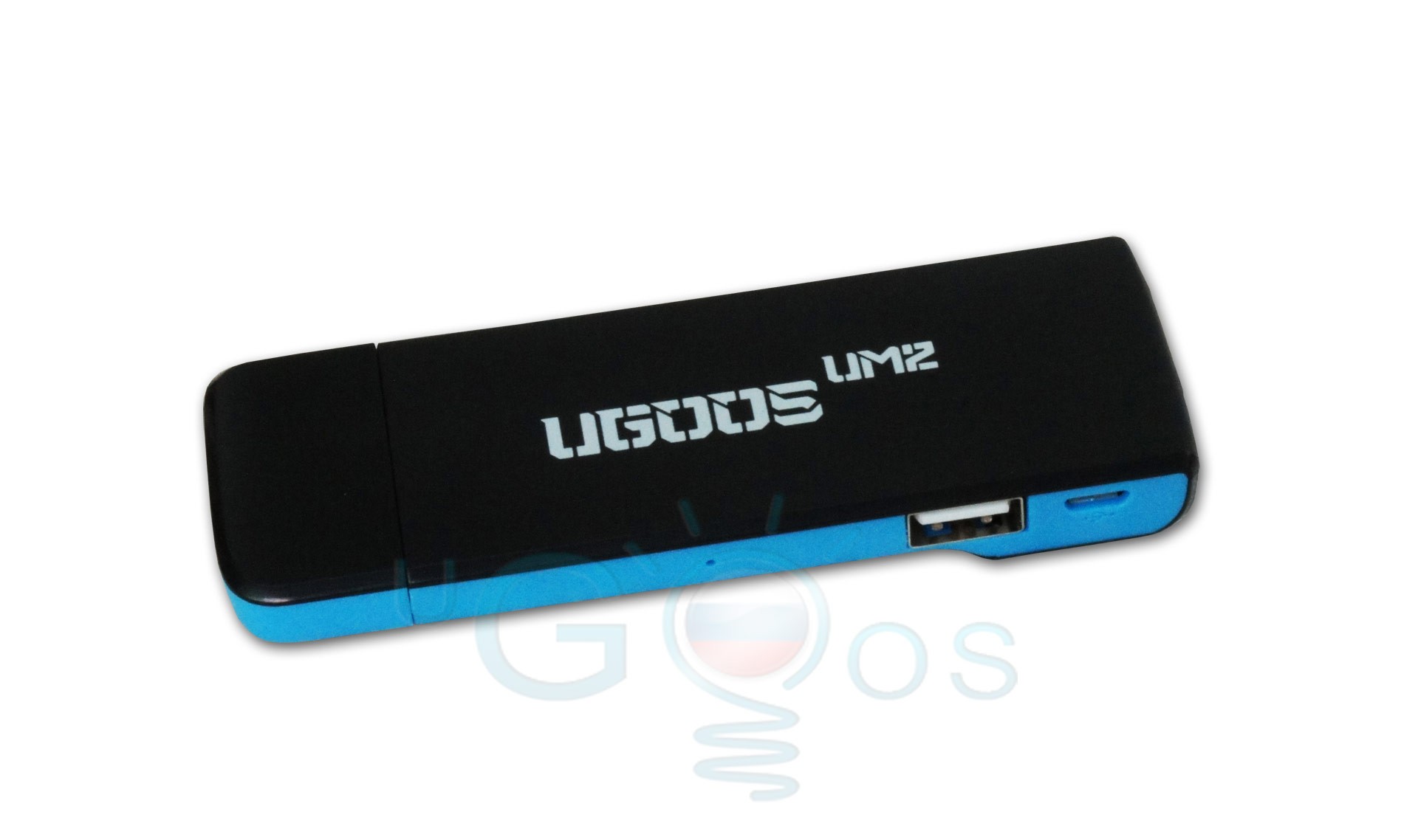

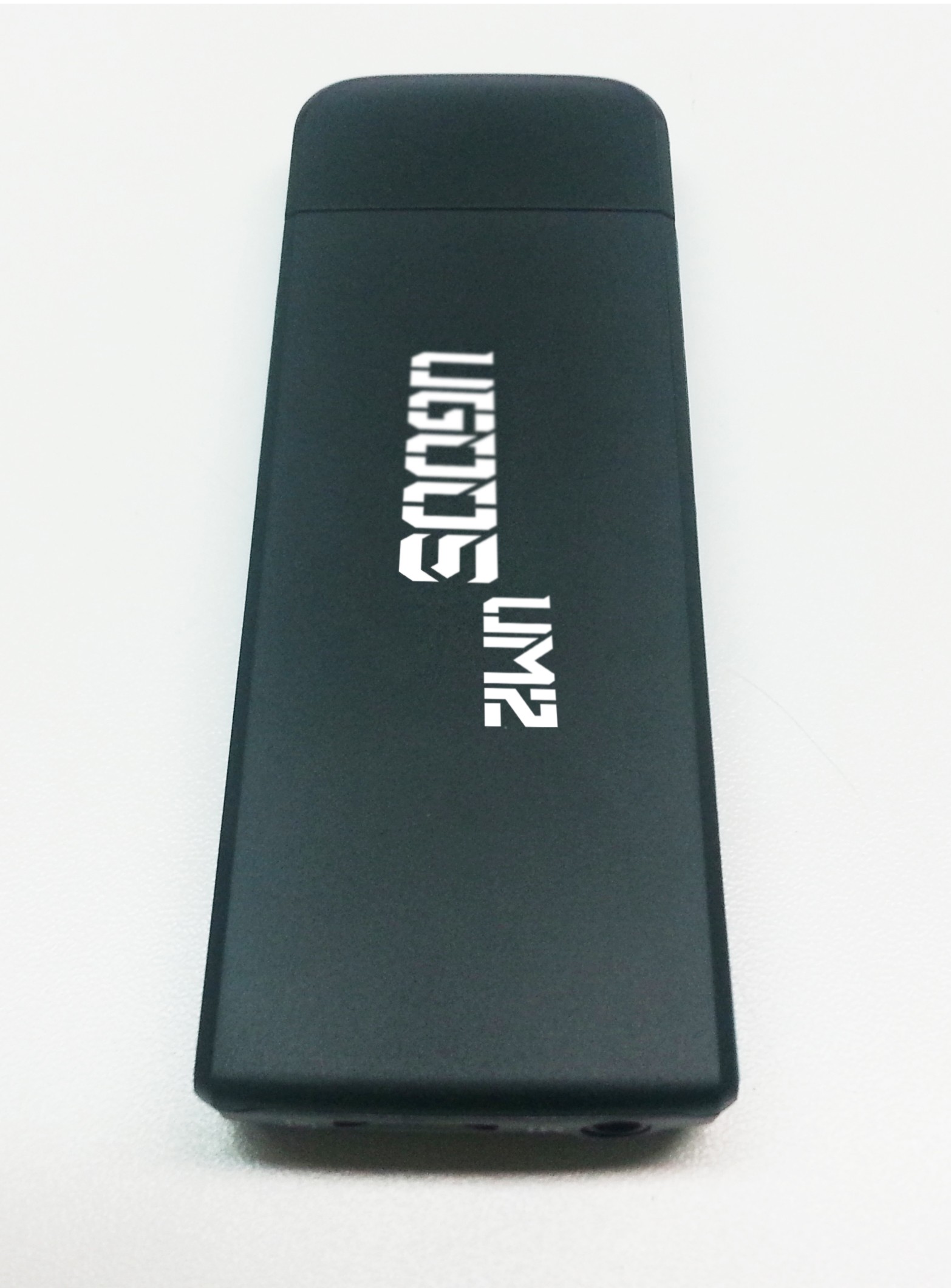

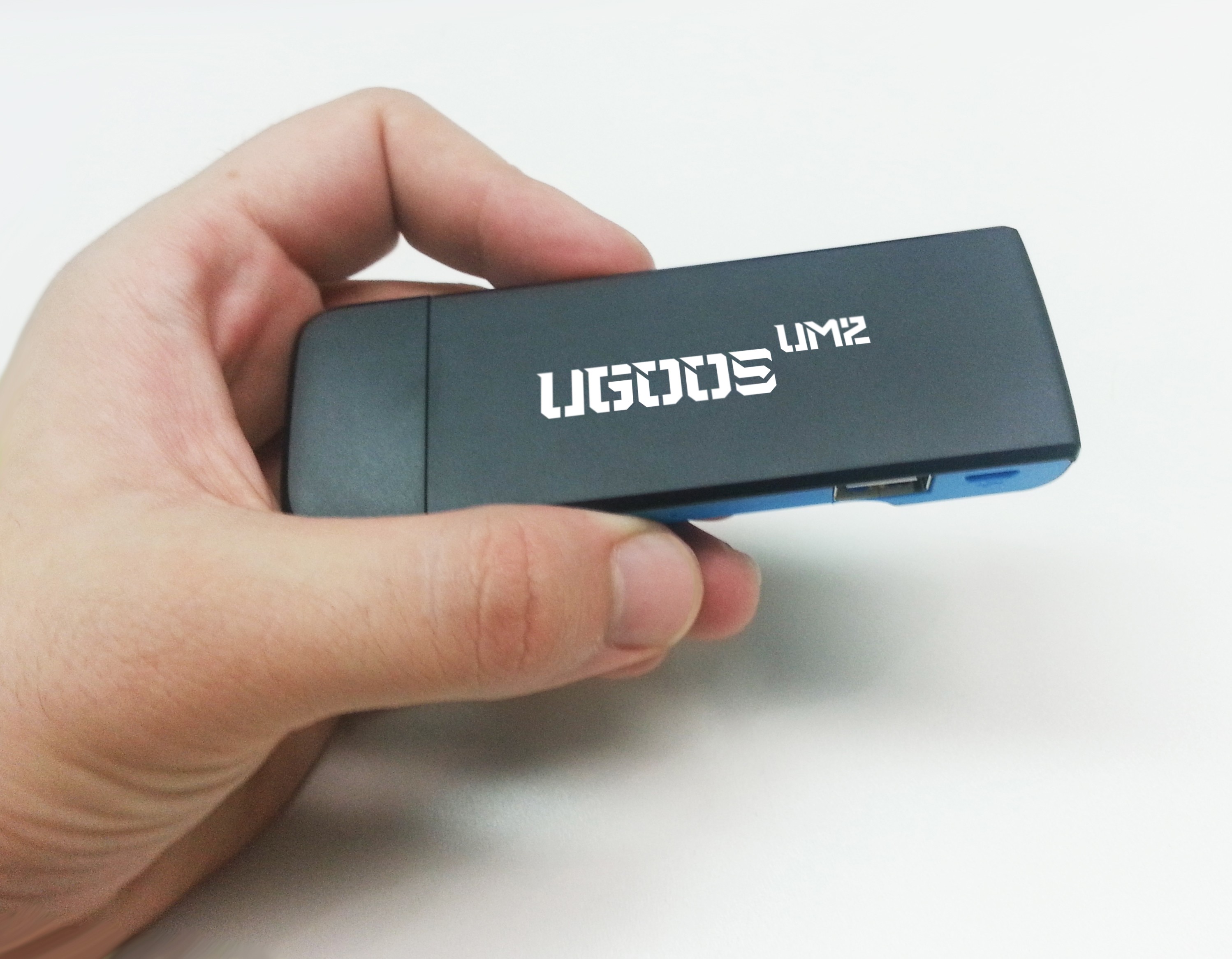

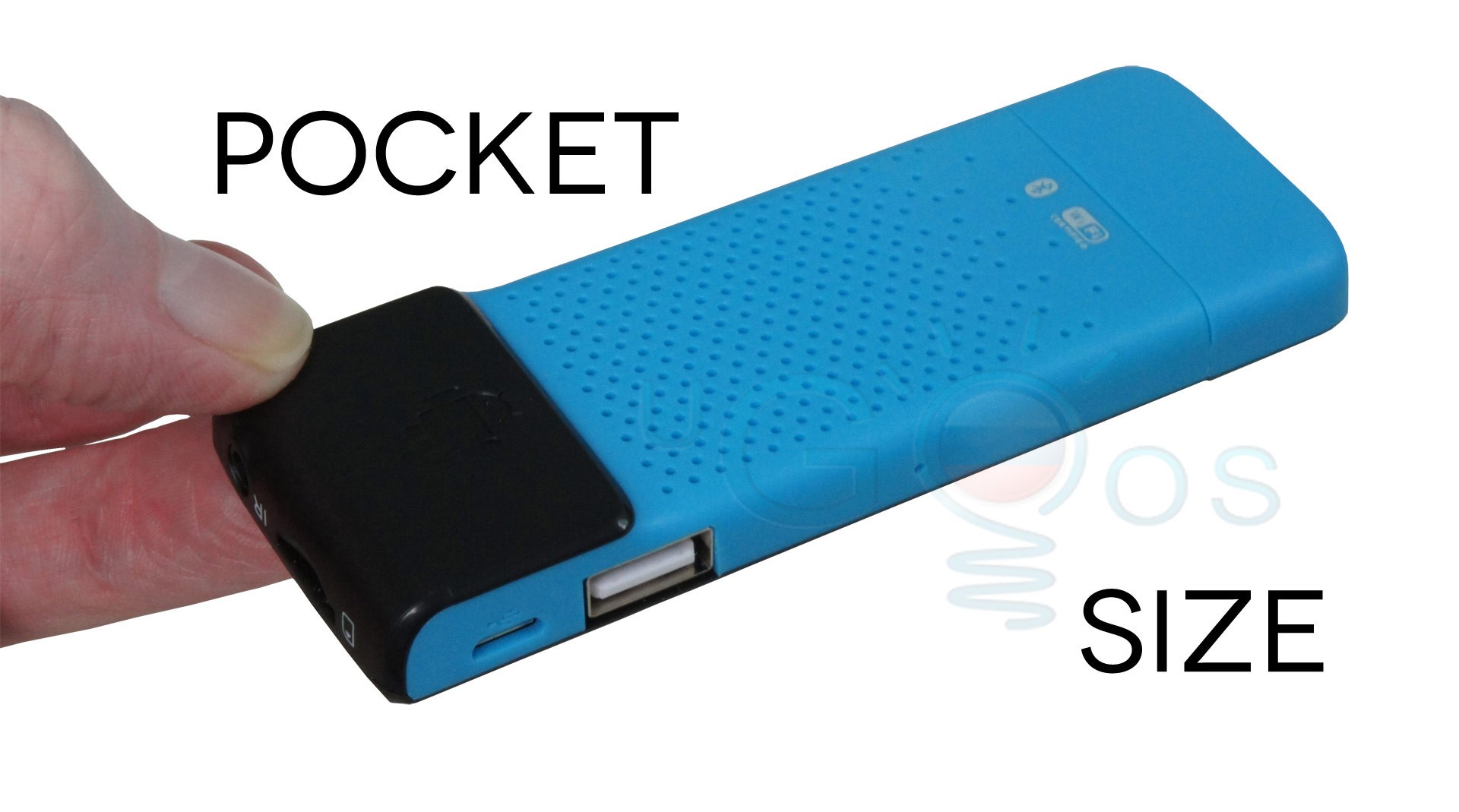

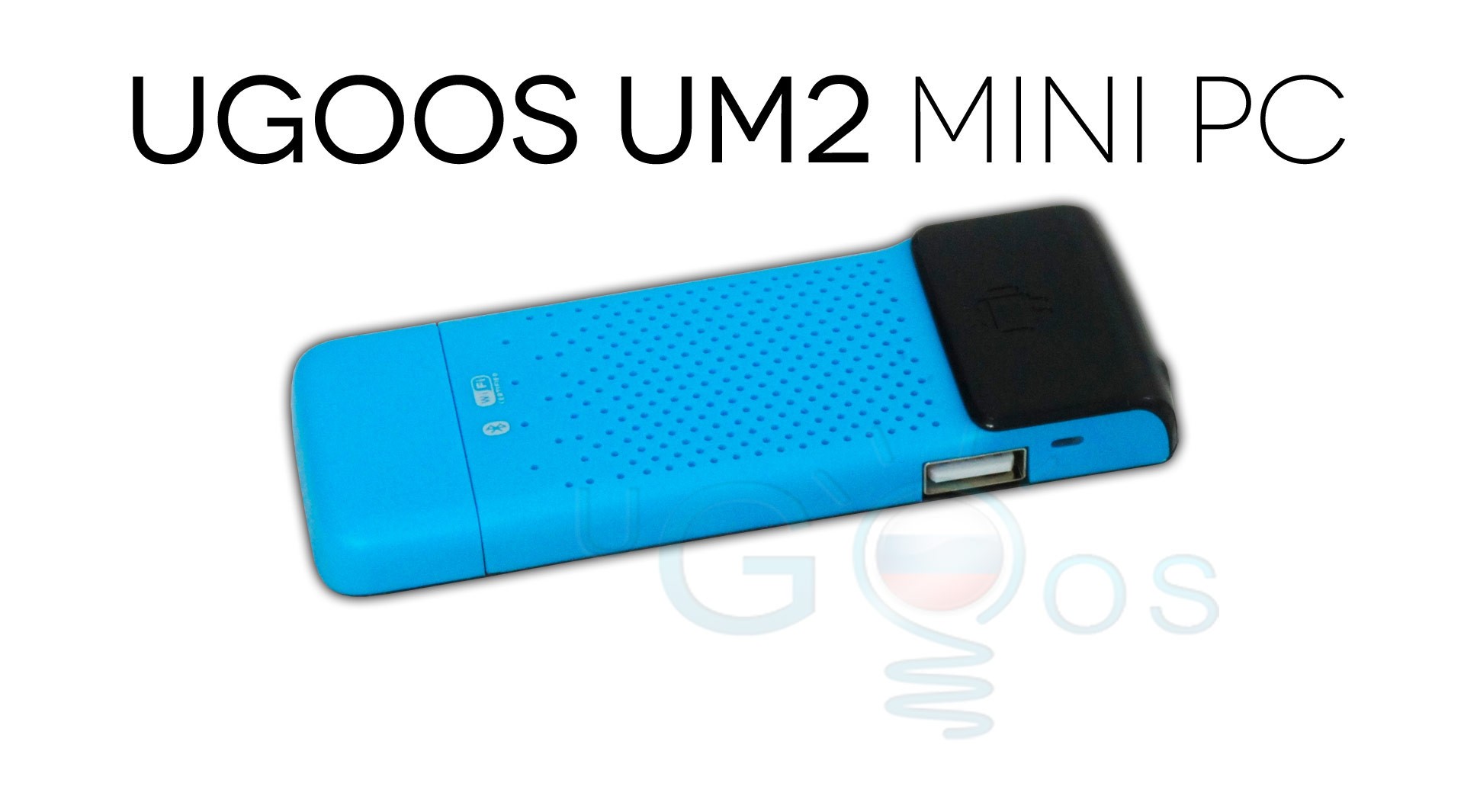

Ugoos Brand UM2 Dongle - New 1.6GHz 2G+8G Android 4.2 Quad Core RK3188 Smart TV Box
| Hardware Spec: | |
| Operation System | Android 4.2(optional:Andriod 4.4) |
| Language | Chinese,English...Multi-Language support |
| Chipset | RK3188 28nm Cortex-A9 Quad core1.6ghz |
| GPU | Embedded 3D GPU Mali 400, High frequency 500Mhz, Support OpenGL ES 1.1/2.0 and OpenVG 1.1. |
| SDRAM | DDR3 2GB (optional:1GB) |
| Nand Flash | 8GB Nand Flash (Optional:16G) |
| Storage Extension | Support Micro SD(TF), Up to 32GB |
| Network | 2.4GHz Wi-Fi 802.11 b/g/n, Bluetooth |
| Power Supply | DC 5V/2A |
| Interface: | |

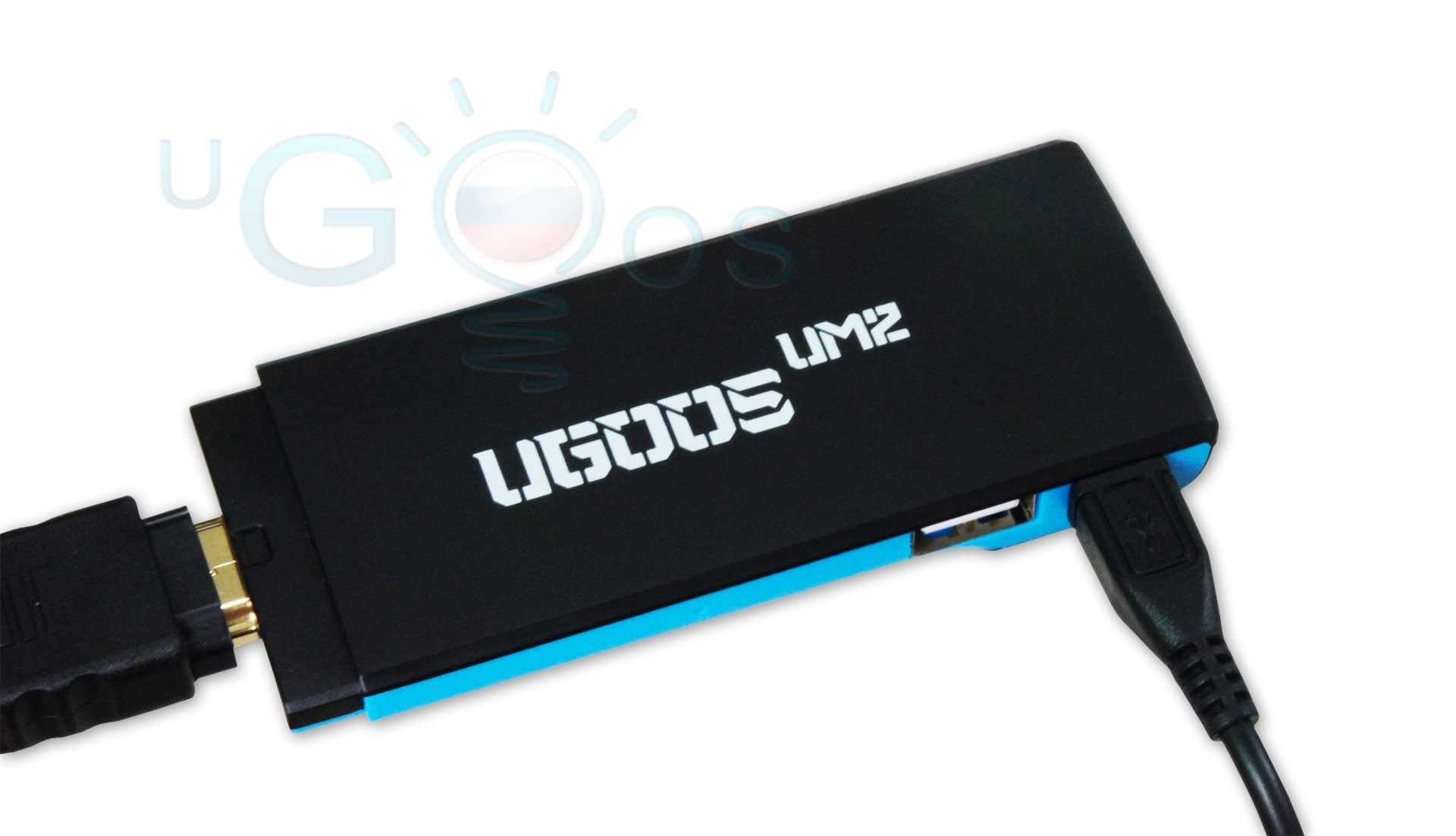

| HDMI Out | 1 x HDMI(A type Male),HDMI1.3 Full HD 1920x1080P |
| USB Port | 2 x USB Host |

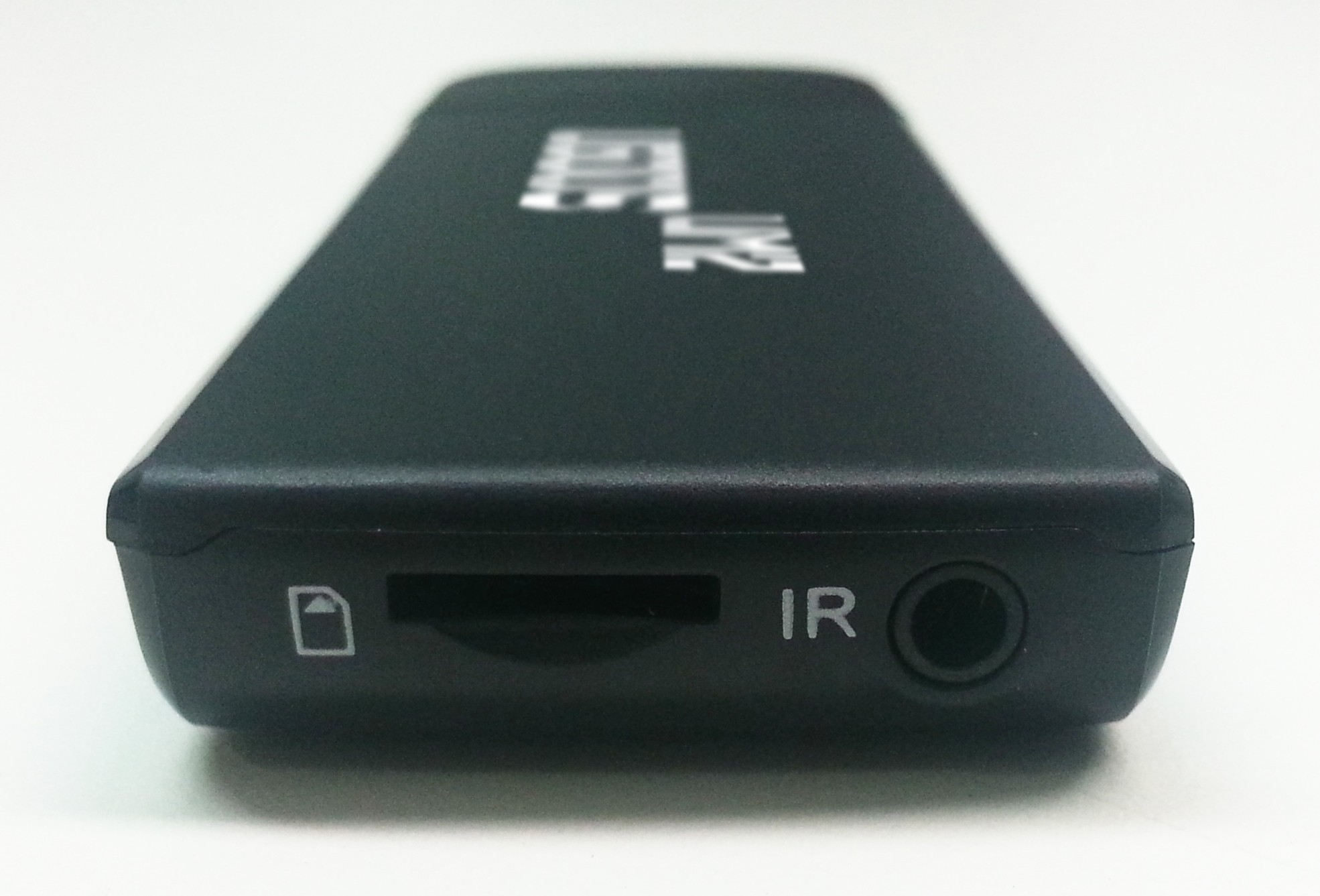

| Card Reader | 1 x Micro SD card (TF card) reader |
| Power Supply | 1 x USB Power Adapter |
| Media Parameter: | |
| Audio Container: | Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc Audio formats.Muliti -EQ mode，Support Synchronized lyrics and full-page lyric display. |
| Audio Out | HDMI Data Output |
| Video Decoder | MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, |
| RV, VP6/VP8, Sorenson Spark, MVC 1920x1080P 60FPS | |
| Video Encoder | H.264, VP8，MVC(1080P) |
| Resolution | FullHD1080P@30fps |
| H.264 Data Rate: | Up to 60Mbps |
| Image Browser | Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8192x8192. |
| Text-Reading | Support TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install)。 |
| Software Extension | Support Google Play APK install |
| DLNA,Wimo Protocol | Support DLNA,Wimo Protocol |
| Remote Control | Support Smart phone remote control、2.4GHZ wireless air mouse/Remote controller. |
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK install) |
| Office Software | WORD/EXCEL/PDF(Depends on APK install) |
| Certificate | CE, RoHS |
| Others Parameters: | |
| Operationg Temperature: | -10~40℃ |
| Storage Temperature: | -20~50℃ |
| Humidity environment | 5%-90%(No condensation) |
| Package: | |
| Dimension | 142x95x21mm |
| Net Weight | TBD |
| Carton Box Size | L412*W362*H294mm |
| Gift Box Size | L172*W130*H78mm |

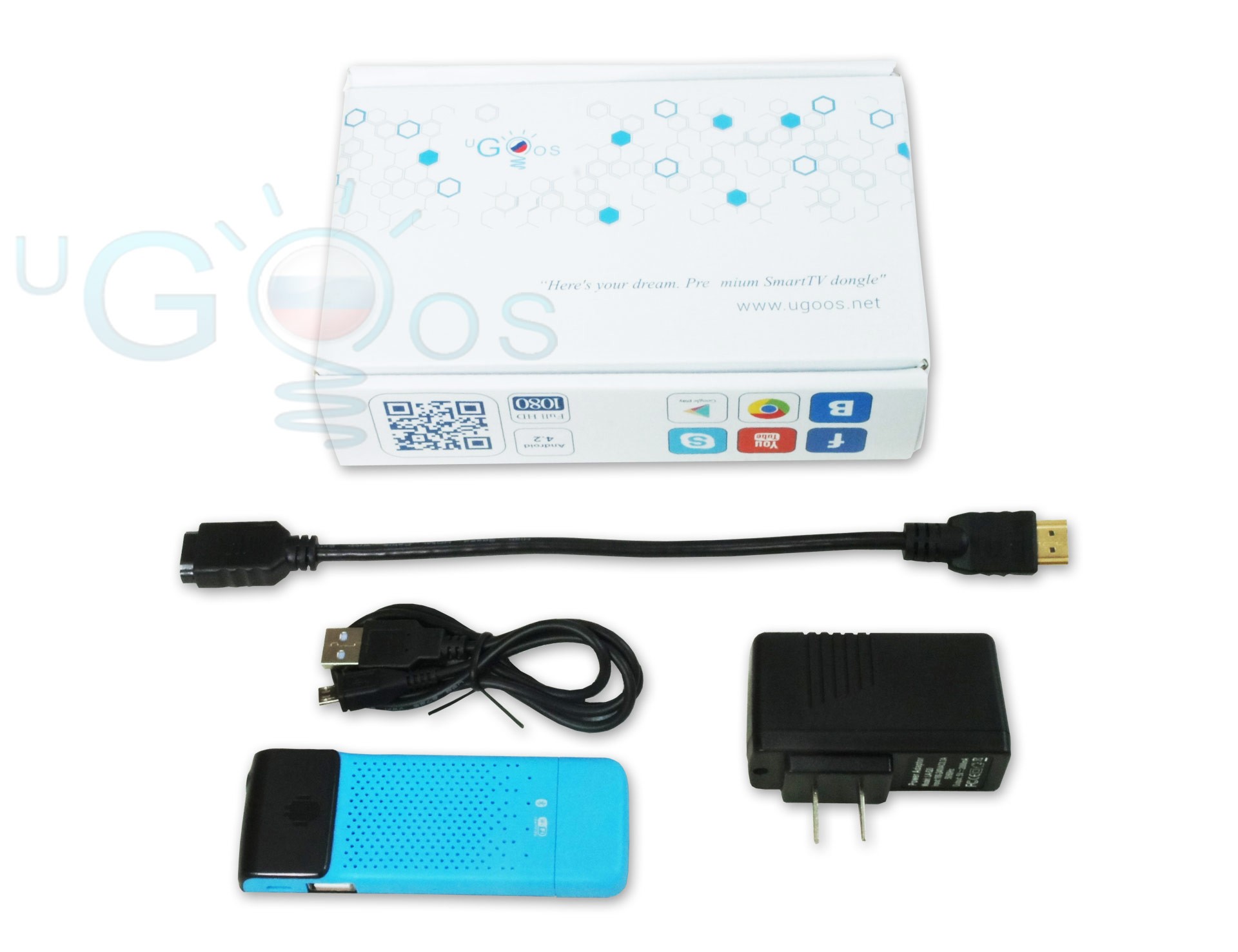

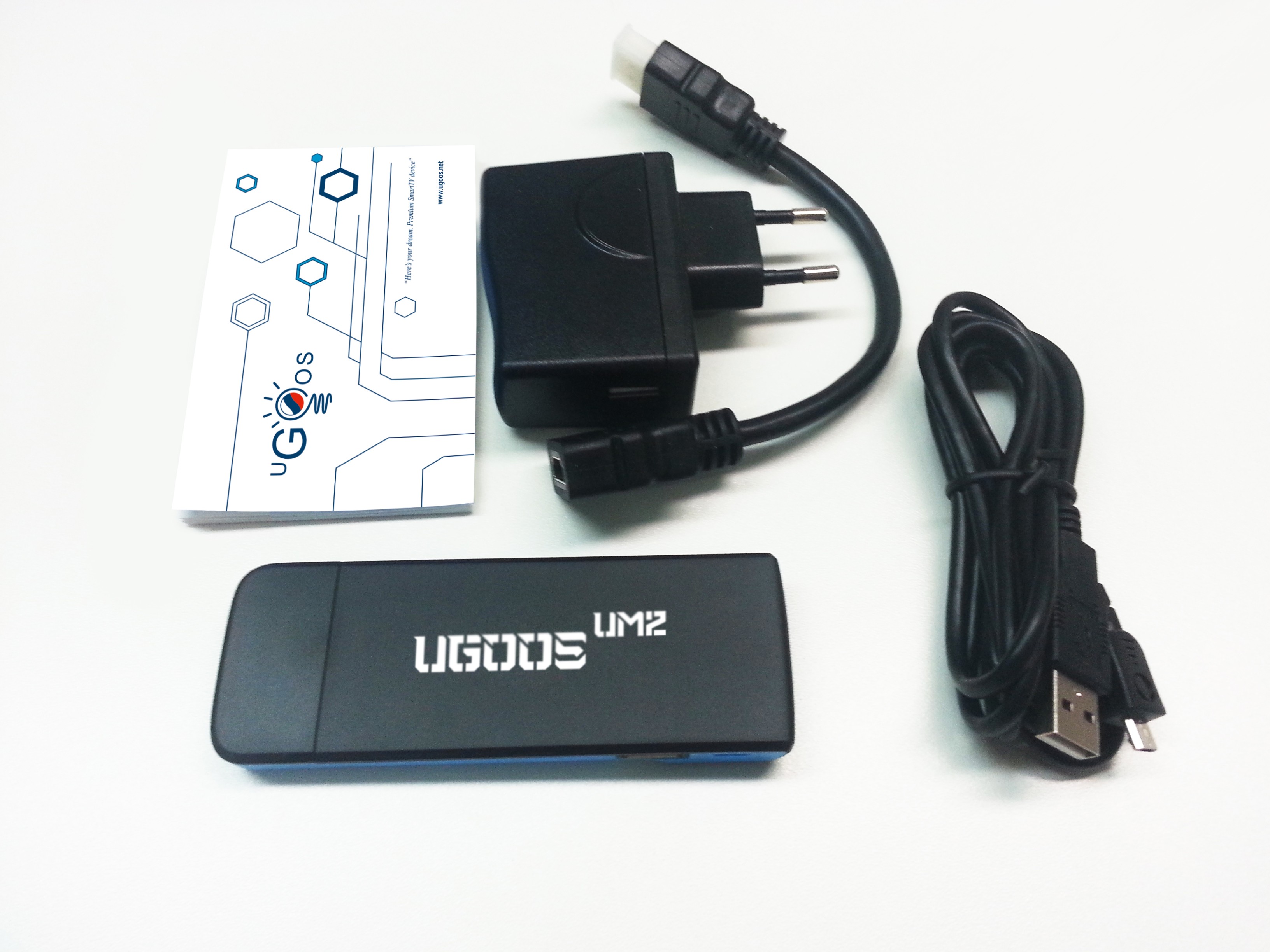

Accessory List:
- Standard Package: 1xQSG, 1xAdapter(DC 5V/2A), 1xHDMI Cable
- Optional Package: 2.4G Wireless Air Mouse, 2.4G Wireless mouse and keyboard, USB Cable
