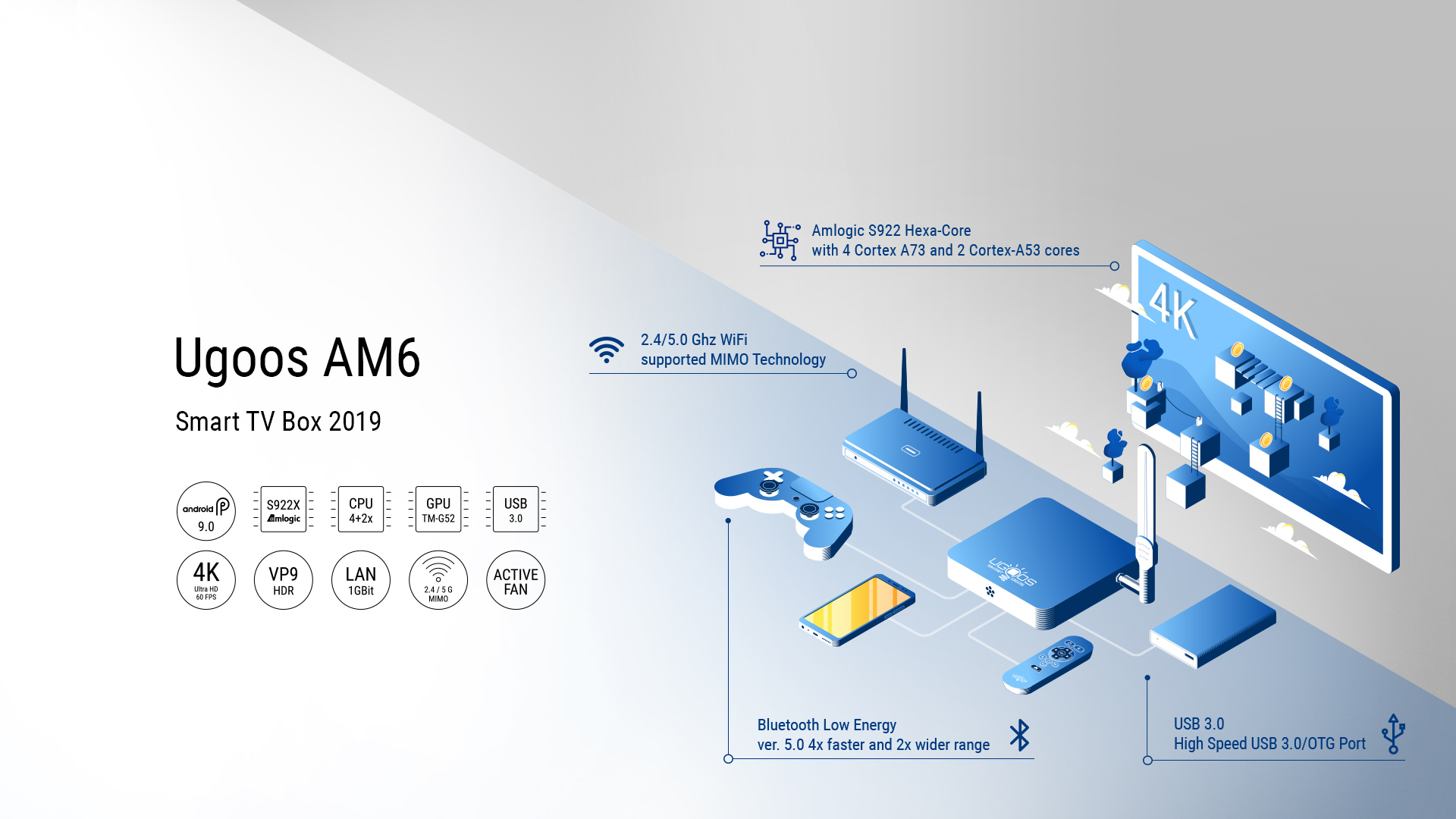

Ugoos AM6 TV Box Pre-release

New TV Box combines all the best hardware and software solutions from previous models and abilities of Amlogic next-gen processor.

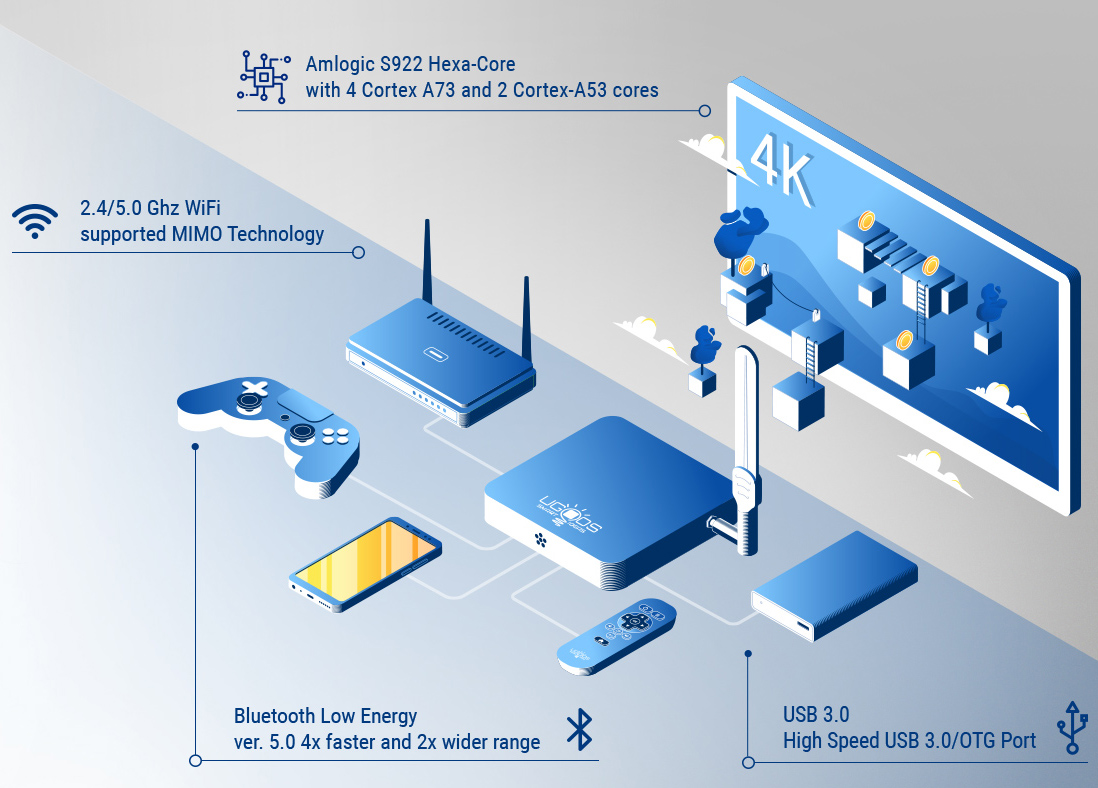

AM6 will get USB 3.0 Fast USB, Bluetooth 5.0, WIFI 5.0/2.4 GHz with MIMO RSDB Technology Support, Wake on LAN function, active fan with control and other improvements.

Device will come with latest Android 9 OS on board.

Hardware specification

CPU:

Amlogic S922X with 12nn  2.0G HZQuad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU

GPU:

ARM MaliTM-G52 MP6(6ppc)

Operating system:

Android 9.0

RAM:

2GB  LPDDR4 3GB/4Gb optional)

Storage capacity (flash memory):

16GB EMMC(8GB/32Gb optional)

WIFI:

AP6398S 2.4G+5G SISO Receiver
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN

Bluetooth:

Bluetooth  5.0 with LE technology

Network:

1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII
interface

SPDIF:

YES

CEC:

support

RTC:

support

HDR:

support

External storage:

USB HOST 3.0*1
USB HOST 2.0*3

HDMI:

HDMI 2.1 Type-A 4Kx2K@60fps max resolution

AV output:

AUX+CVBS 480i/576i

Key output:

Power

Port:

TF Card x1

POWER INPUT:

DC 12V/2A
