Ugoos AM7

DESCRIPTION SPECIFICATION DOWNLOADS (12)

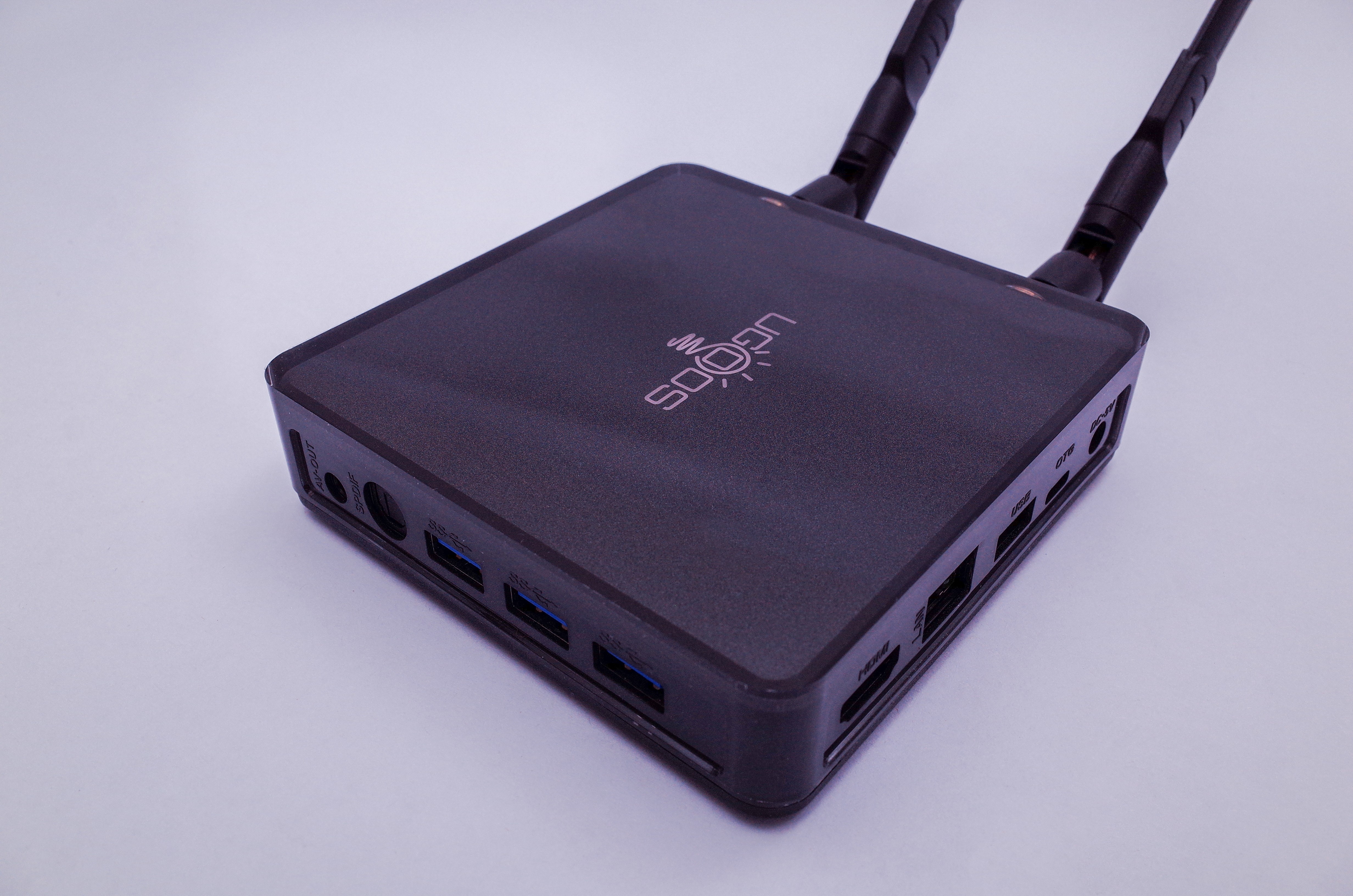

Ugoos AM7

First Amlogic S905x4 Ugoos device gets AM7 abbreviation

Description:

Ugoos AM7 gets 4GB Memory and 32GB internal storage, works on Android 11 OS. Device can support AV1 and other well-know Video Formats. Internet connection works due to fast 1Gbit LAN and WIFI 6 MIMO chipset and two Dual-band antennas on board. For different accessories connections, AM7 uses Bluetooth 5.0 LE.

Hardware Spec:

Hardware Specs*:
Operation System	Android 11.0
Language	English, Chinese ...Multi-Language support
CPU	Amlogic S905x4 with，Quad core ARM Cortex-A55 CPU
GPU	ARM Mali G31 MP2 GPU
SDRAM	DDR4 4GB
Storage Capacity (Flash)	32GB （EMMC）
WIFI	2.4G+5G The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO standard
Bluetooth	Bluetooth 5.0 with LE technology
Power Supply	DC 5V/3A
HDR	Support
Interfaces:
HDMI Output	HDMI(2.1 and 2.0 ) to support maximum 4K@60fps output(HDCP2.2)
USB Port	3USB 3.0 Fast Speed, 1USB 2.0 Host, 1*TypeC (OTG)
Optical Output	1*SPDIF
Led Work Light	Support
Network	1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet)
Power Supply	1*DC Jack
Media Parameter:
Audio Container	MP3,AAC,WMA,RM,FLAC,OGG
Audio Out	Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing I2S audio interface supporting 2-channel input and 8-channel (7.1) output Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC	AV1 Codec Support VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVCMP-10@L5.1 up to 4K2K@60fps H.264 AVC HP@L5.1 up to4K2K@60fps H264 MVC up to1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 5P/MP/AP up to 1080P@60fps AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps(ISO-13818) MPEG-1 MP/HL up to 1080P@60fps(ISO-11172) Realvideo 8/9/10 up to 1080P WebM up to VGA Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixe resolution decoding(ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Support .mkv,.wmv,.mpg,.mpeg,.dat,.avi,.mov,.iso,.mp4,.rm and *.jpg file formats
Software Extension	Support Google Play & APK install
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol
Remote Control	Bluetooth Remote controller with voice search + Gyro
IM Software	Support Skype/QQ/MSN/GTALK (Depends on APK ）
Office Software	WORD/EXCEL/PDF(Depends on APK install)
Other Parameters:
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC
Package:
Dimensions	11711718.5mm
Net Weight	300g
Gift Box Size	16216280mm

* Devices' parts or equipment may be changed without additional notification.

Downloads:

Android 11 firmware V. 1.2.4 for Ugoos AM7

1. Added video picture settings: noise reduction, sharpness
2. Added setting for change number of volume regulator steps
3. Fixed some issues with high-resolution audio playback
4. Added support for some TrueHD streams in native video players
5. Fixed support of some DTS-HD audio tracks
6. Added support for DTS-HD audio passthrough in native video players
7. Added Uplayer v.0.2.0 as preinstalled application
8. Hide AOSP keyboard when pressing DPAD_UP button
9. Added UR02 update service
10. Video codecs update
11. GPU driver update
12. Improved Samba server stability
13. Added ability to take bug reports from settings (About page), quick settings on the top panel and as a menu button option
14. Added long press event for Home button
15. Added ATV applications support to Launcher3
16. Added ATV applications to select in automatic frame rate feature
17. Added network and VPN names to hardware monitor
18. Fixed slow playback after rewinding for some H.264 streams
19. Added UI mode setting for applications
20. Added ability to disable media file scanning for CIFS and NFS clients
21. Fixed issues with some applications
22. Some other system changes

2024-11-12 08:35:31

Download 705.7Mb

Android 11 firmware V. 1.2.0 for Ugoos AM7

1. Automatic frame rate function:
    - fixed some rare system crashes
    - new frequency switching policy
    - fixed some problems with returning display mode
2. Fixed HDMI volume control when CEC disabled
3. Added setting to disable volume regulator in applications
4. Added split screen function to recent applications window
5. Fixed Gallery application crash
6. Automatic detection of default density based on framebuffer size
7. Removed Lock UI setting
8. Added support for 1080p 120Hz display mode
9. Fixed issue with resetting the display color mode
10. Added Dolby Vision mode setting (X4Q Extra)
11. Magisk updated to version 27.0
12. Some other changes

2024-04-22 07:03:14

Download 657,4 MB

Android 11 firmware V. 1.1.9 for Ugoos AM7

1. Allowed transfer of all file types via Bluetooth
2. Added video picture settings
3. Added ability to open video picture settings using Menu button
4. Magisk updated to version 26.3
5. Some other changes

2023-11-02 07:31:23

Download 705.7Mb

Android 11 firmware V. 1.1.7 for Ugoos AM7

1. Added option to turn off always visible Bluetooth
2. Fixed Bluetooth remote controller connection lost after shutdown by air mouse
3. Fixed text input by mouse in settings
4. Fixed focus reset in application selection window
5. Fixed support of some applications
6. Changed screen saver and energy saver timers setting
7. Now one-shot timer always resets after any power action
8. Added framebuffer size setting
9. Changed logic of lock UI size option
10. Added font and density settings
11. Fixed rare bug when new audio passthrough track can't be start
12. Fixed playback of FLAC and WAV audio tracks
13. Added PCM format setting for choose supported formats
14. Added AC3 decoder
15. Added USB audio settings
16. Added always SDR policy
17. Added new option: enhanced HDR to SDR
18. Some other changes for system stability

2023-05-11 08:14:43

Download 658,4 MB

Android 11 firmware V. 1.1.4 for Ugoos AM7

1. Fixed random disconnect Bluetooth remote controller and some other problems
2. Added ability to set sleep timer once; added option to power menu
3. Fixed problem that caused color mode to reset after sleep
4. Fixed some HDMI hotplug errors
5. Fixed synchronization Google account problem

2022-12-21 14:01:46

Download 631.7 MB

Android 11 firmware V. 1.1.0 for AM7

1. Fixed no sound problem after sleep

2. Fixes of setting for power connect action

3. Some improvements for system automatic frame rate function

4. Fixed playback problems and device reboots on some IPTV channels

5. Fixed no sound in GeForce Now application for Bluetooth devices (need re-pair)

6. Changed key layout for G20 BTS PRO

7. Magisk updated to version 25.1

2022-07-18 14:57:56

Download 615 MB

Android 11 firmware V. 1.0.7 for AM7

Changelog:
1. Fixed formatting some SD cards as device storage
2. Fixed excessive CPU loading after hibernation
3. Fixed voice search after hibernation
4. Fixed AC3 pass-through support for some TVs
5. Fixed system crash when pressing Menu frequently
6. Now music playback does not stop in sleep mode if a Bluetooth or USB audio device is used
7. In system update added option to get pre-release versions
8. Added mouse as a touch input option (Input & devices - Mouse)
9. Changed Magisk dialog in settings
10. Magisk updated

2022-02-05 12:52:56

Download 615 MB

Android 11 firmware V. 1.0.6 for AM7

1. Improvements of automatic frame rate function
2. Fixed error where video size might not fit the screen
3. Fixed GeForce Now freezes
4. Added power indicator settings
5. Added Bluetooth settings
6. Added DTS-HD and TrueHD audio pass-through for hardware audio decoder
7. Fixed synchronization of DTS-HD and TrueHD audio pass-through
8. Improvements of video codecs
9. USearch changes:
    - added sorting and deleting of search results
    - changed results design
    - added settings menu
    - added application launch after clicking on icon (results row)
    - fixed problem of long search for applications
10. Many other changes for system stability

2022-01-14 06:06:56

Download 614.9 MB

Android 11 firmware V. 1.0.5 for AM7

1. Improvements of IPTV playback
2. Improved automatic frame rate function for H.264 codec
3. Improved work of volume control via HDMI CEC

2021-12-11 09:48:50

Download 589.7Mb

Android 11 firmware V. 1.0.4 for AM7 IMG File

1. Added samba server, NFS client, CIFS client (Storage)
2. Added configuration for G20 BTS air mouse
3. Improves of automatic frame rate function
4. Improved Ethernet stability
5. Fixes of HDMI hotplug
6. Fixes of power modes work
7. Fixed pairing bluetooth devices in additional settings
8. Fixed kernel crash for videoplayback with bad frames
9. Fixed kernel crash for HDR10+ videos
10. Fixed work of USearch with some applications
11. Fixed snapshots in recent applications window

2021-12-07 07:32:09

Download 609Mb

Android 11 firmware V. 1.0.3 for AM7 IMG File

1. Added new voice input application
2. Fixed problem with install Google application
3. Fixed problem with broken cursor after hiding notifications
4. Removed 120 Hz display mode
5. Fixed button manager issue for some remote controllers
6. Fixed problem with authorization in Google applications
7. Audio pass-through improvements
8. Improvements of video codecs
9. Many other changes for system stability

2021-12-07 07:30:32

Download 609Mb

Android 11 firmware V. 1.0.2 for AM7 IMG File
