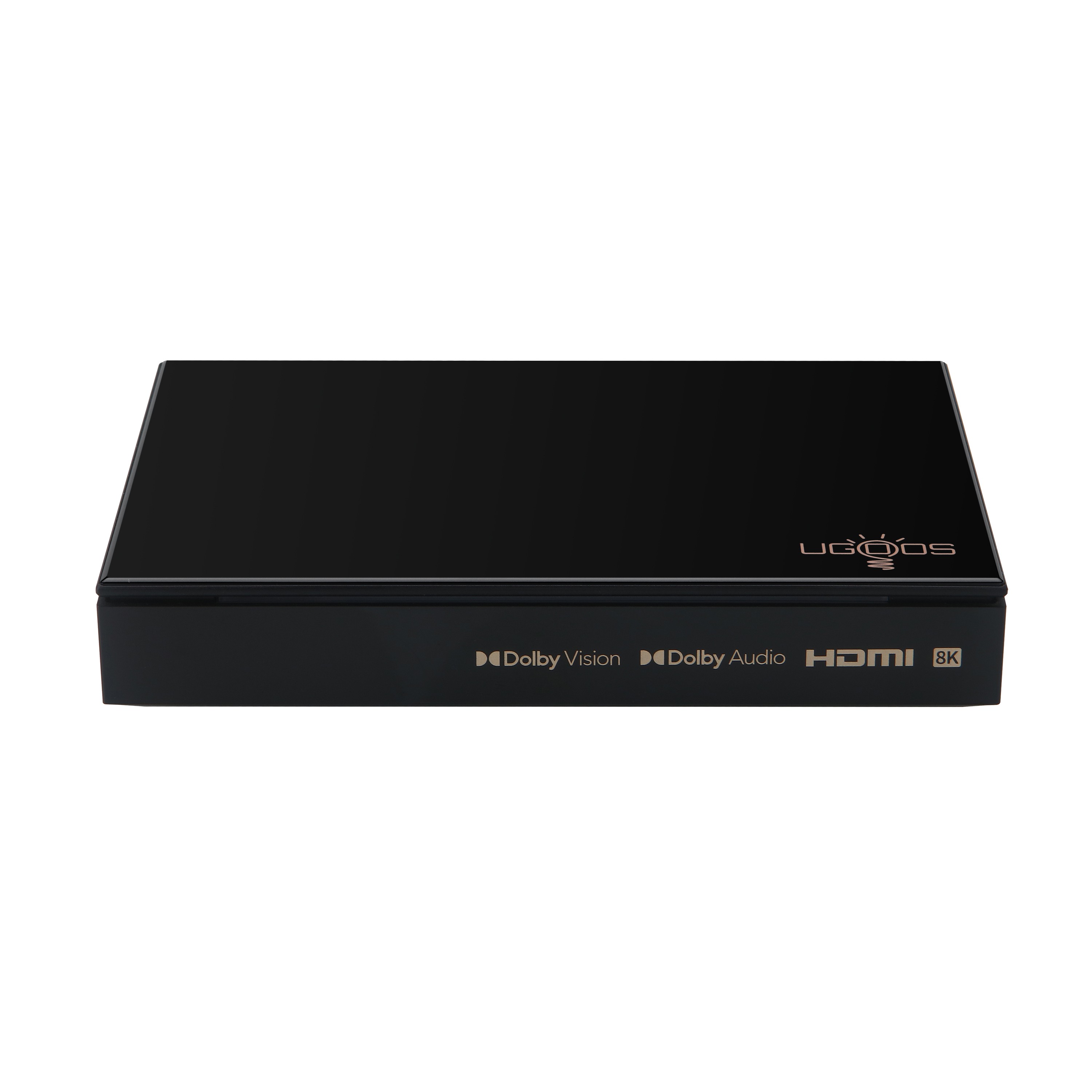

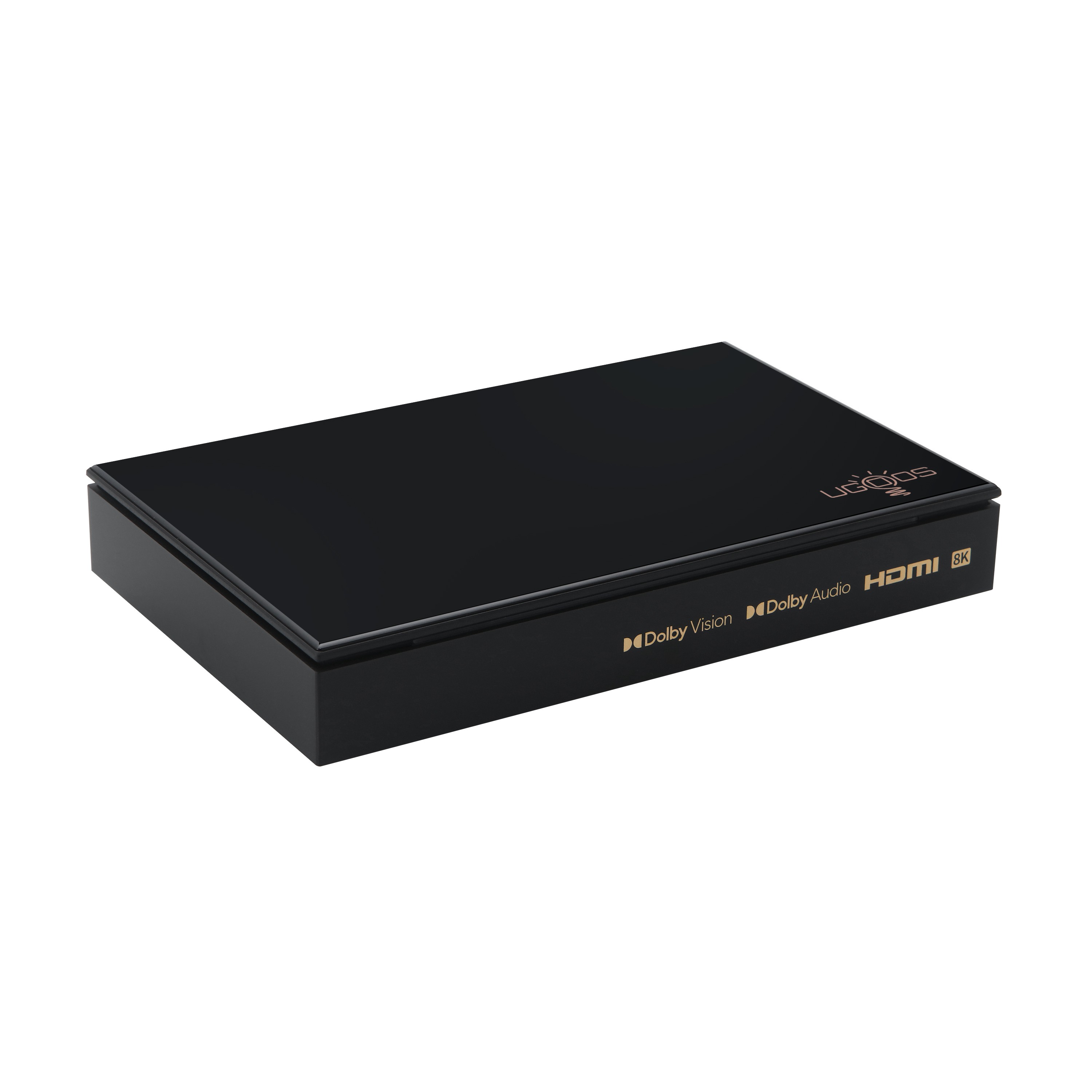

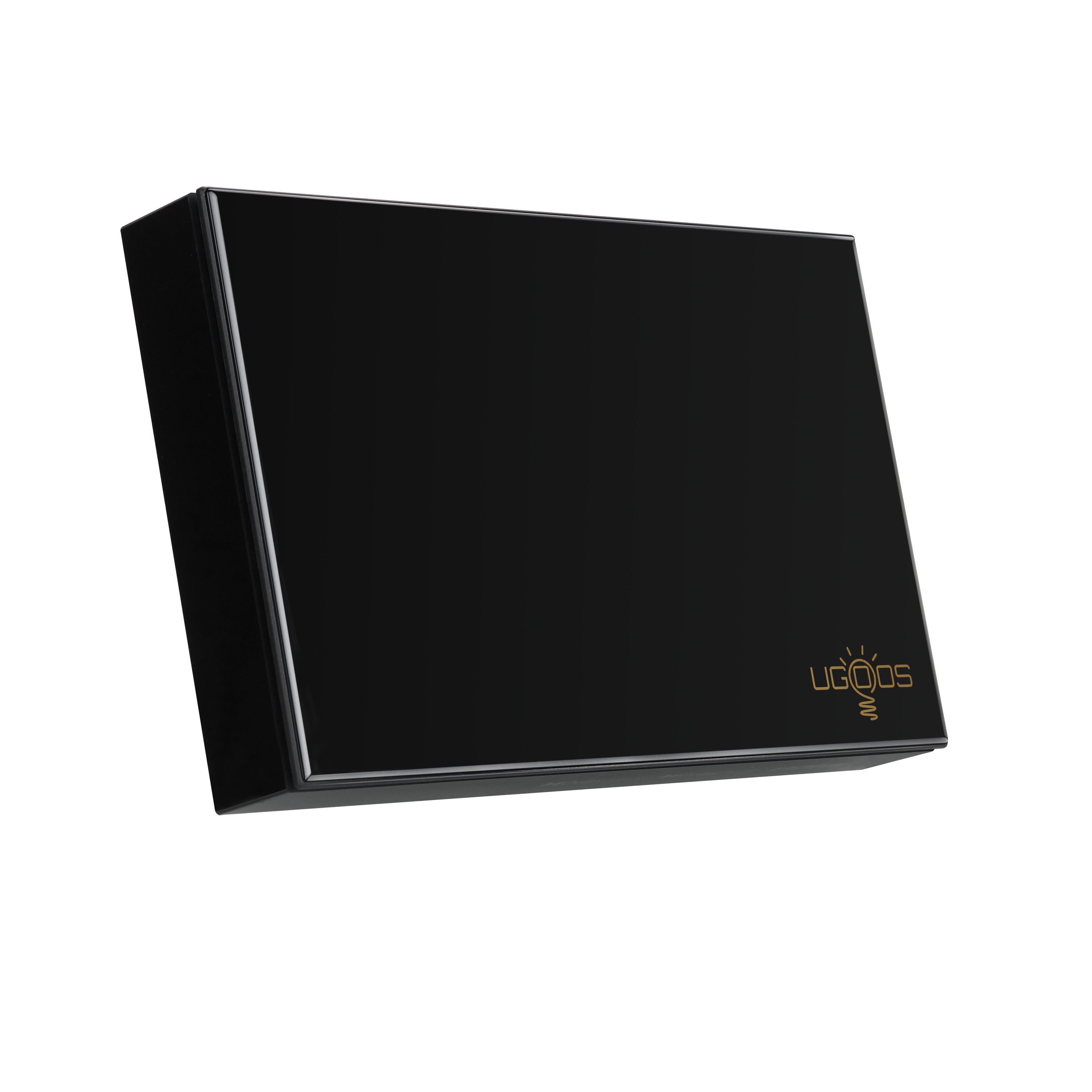

Ugoos SK3 8/128

DESCRIPTION SPECIFICATION DOWNLOADS (0)

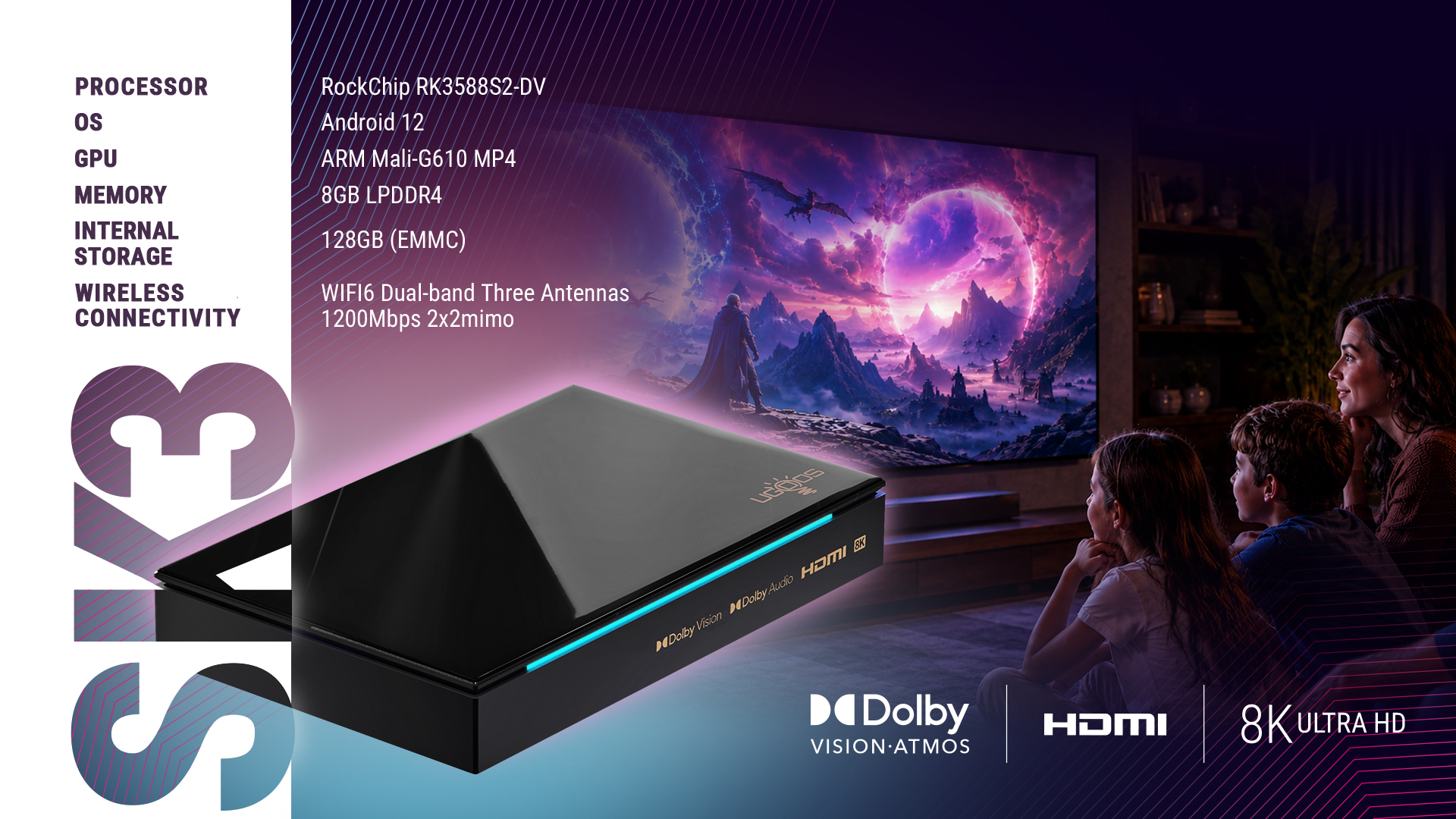

Ugoos SK3 8/128

The first Rockchip SoC with Dolby Vision — a real milestone for the platform and something no other Rockchip box has offered before.
The first device with an 8K UI — not just 8K playback, but a full 8K interface.

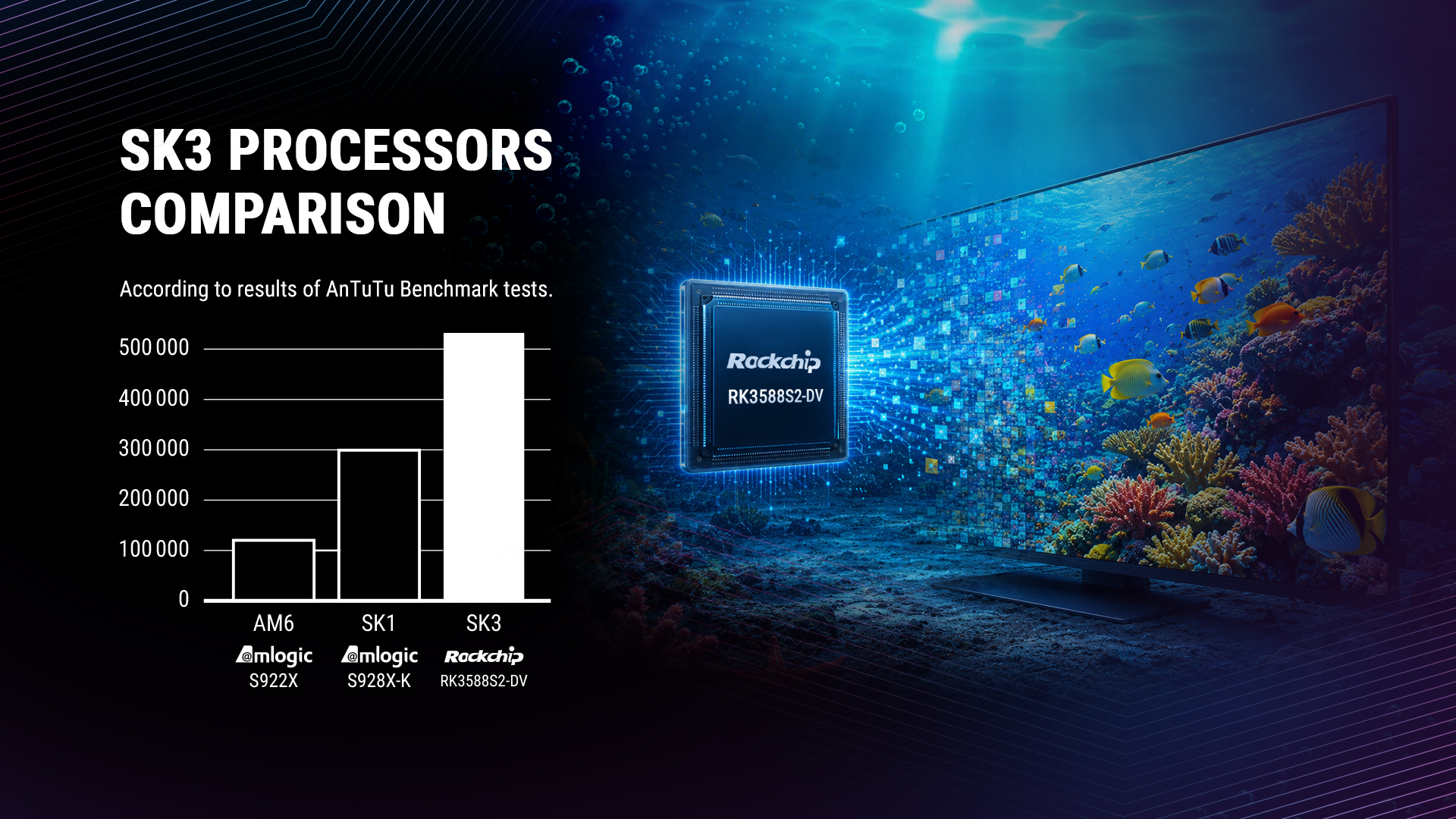

An AnTuTu score of 500,000+ — placing it firmly in flagship territory.

Description:

Hardware Spec:

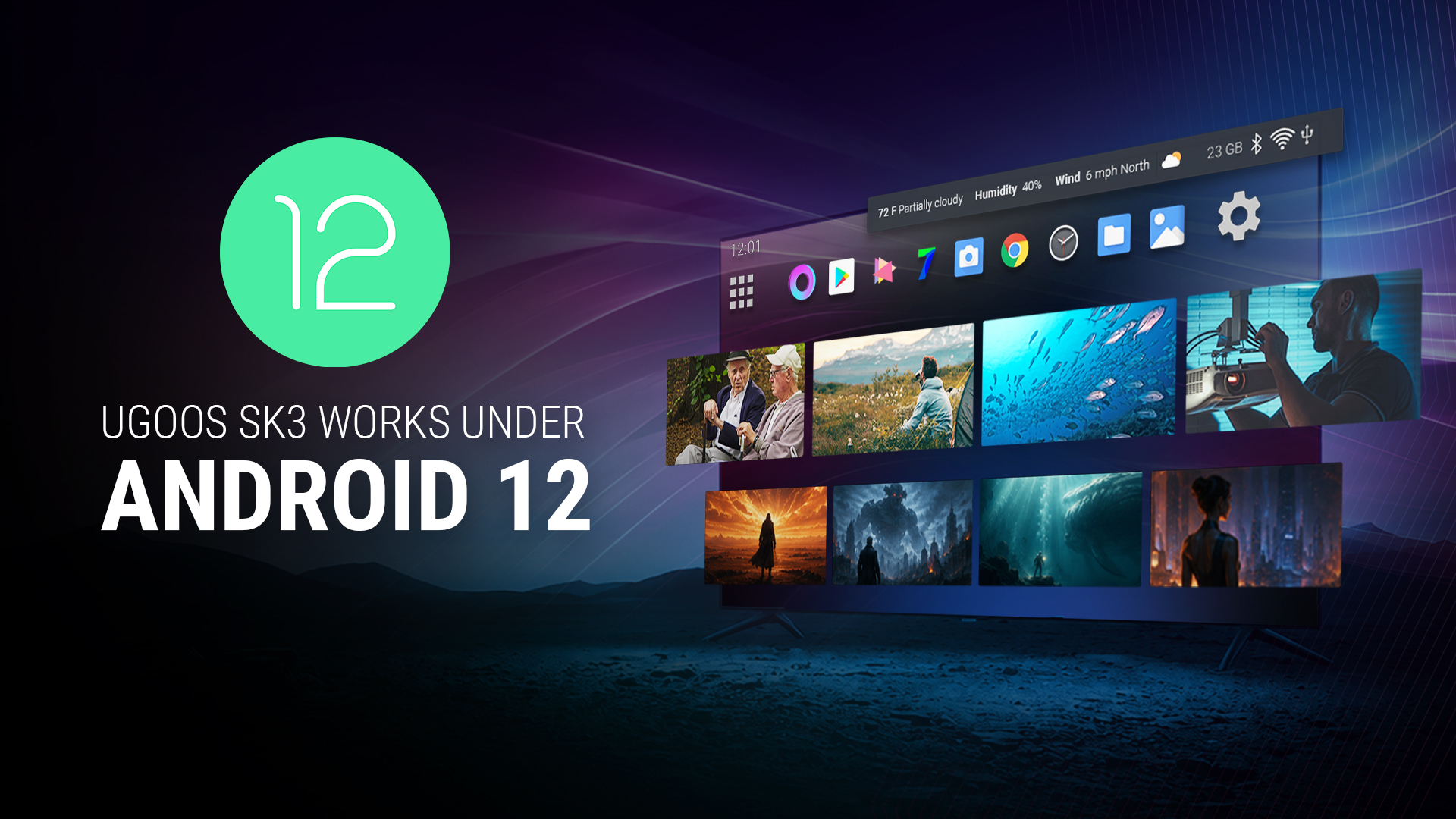

Operation System	Android 12.0
Language	English, Chinese ...Multi-Language support
CPU	RockChip RK3588S2-DV Octa-core 64-bit(4×Cortex-A76+4×Cortex-A55)
GPU	ARM Mali-G610 MP4
RAM	LPDDR4 8GB
Storage Capacity (Flash)	128GB （EMMC）

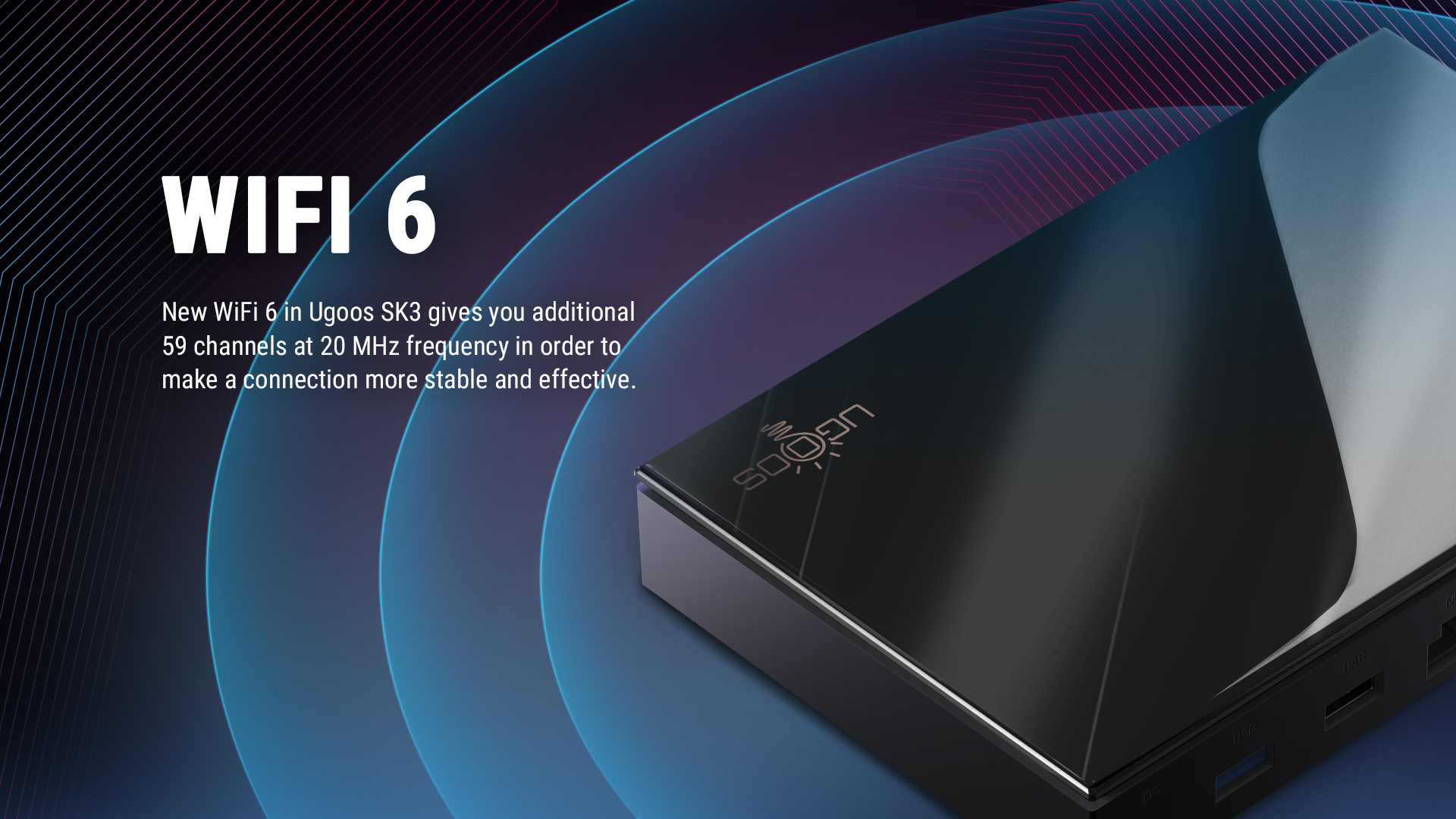

WIFI	WIFI6 Dual-band Three Antennas 1200Mbps 2x2mimo

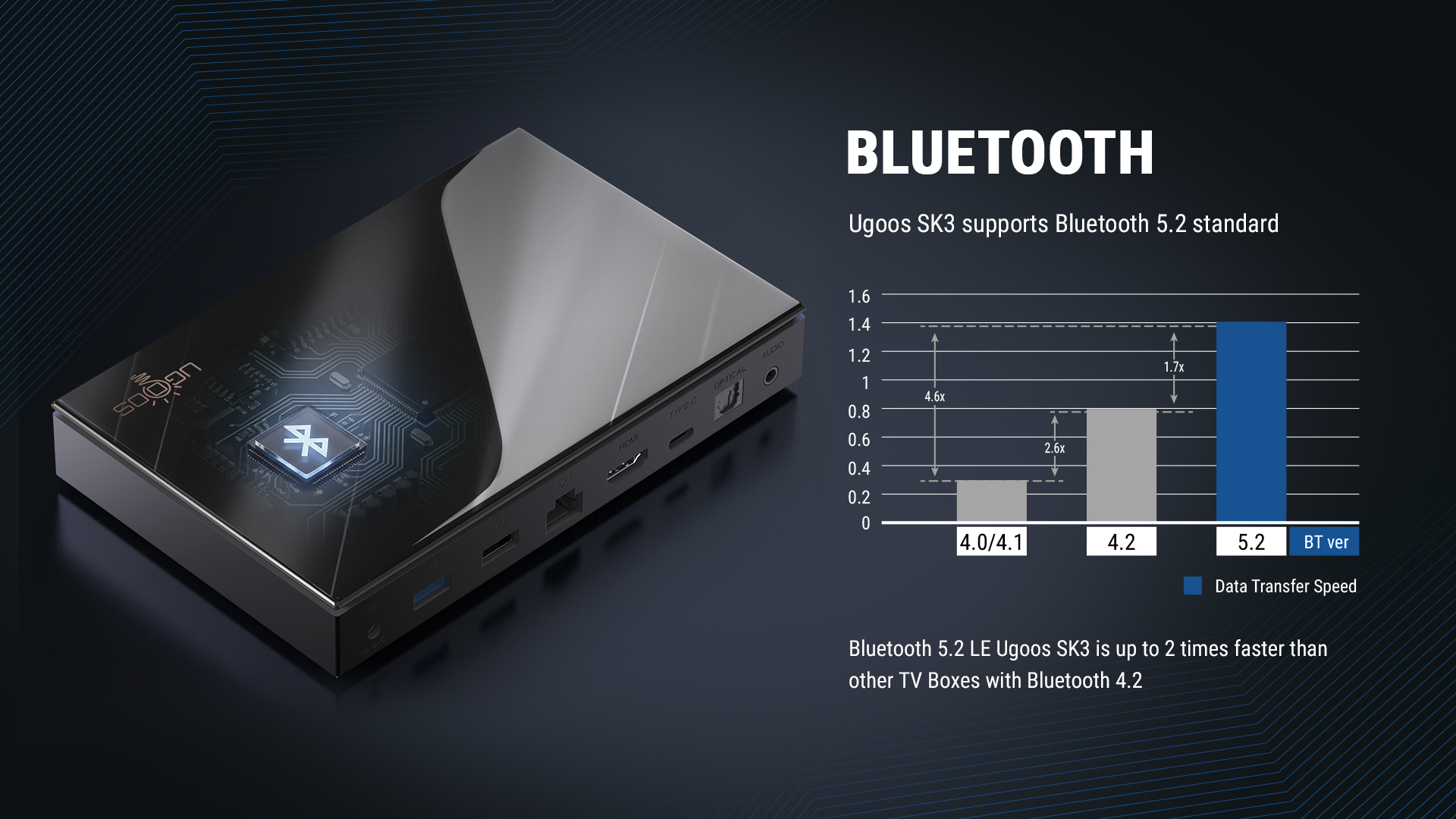

Bluetooth	Bluetooth 5.2 with LE technology
Power Supply	DC Power adapter 12V/2.0A
HDR	HDR10, HDR10+, HLG
Licenses	Dolby Audio, Dolby Vision

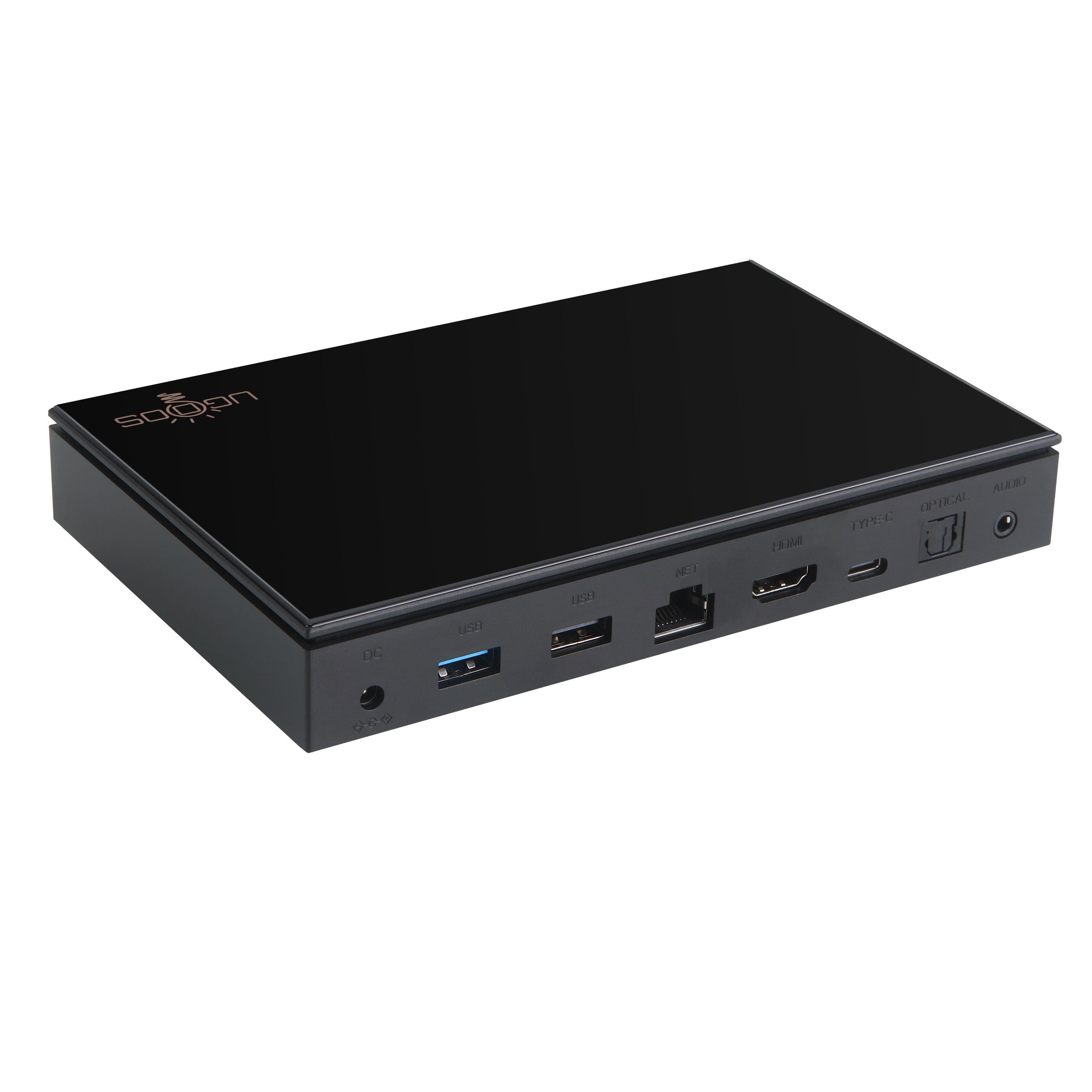

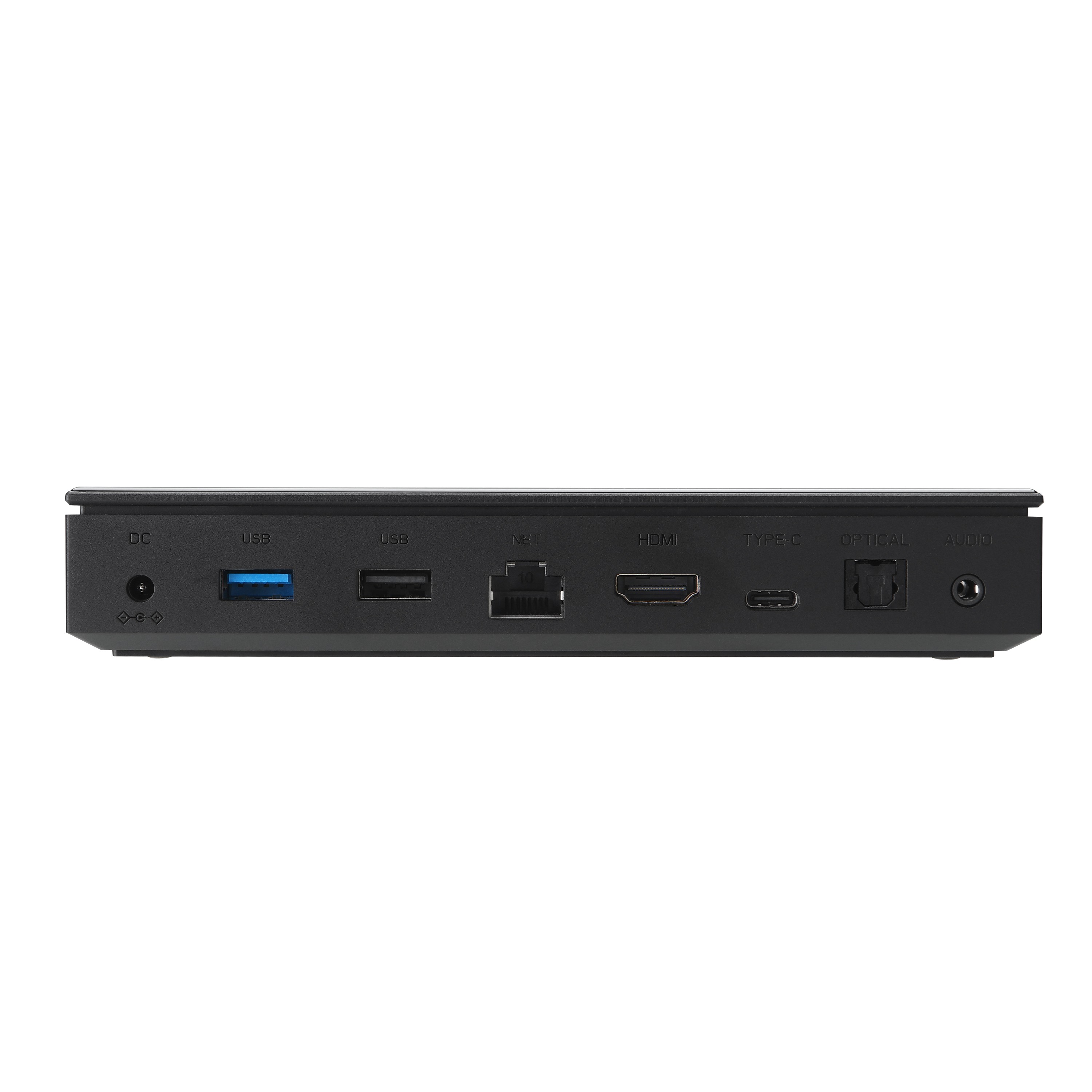

Interfaces:
Video Output	HDMI 2.1 Type-A 8Kp60, S/PDIF out and AUX out, USB Type-C DP 1.4: up to 4K@60Hz
USB Port	USB A 3.01 OTG USB A 2.01 USB Type-C*1 (USB 3.1 Gen1, up to 5Gbps; DP 1.4 Alt Mode video output)
Optical Output	1*SPDIF
Audio Output	3.5mm R/L Audio output
Led Work Light	Support
Network	1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface
Media Parameters:
Audio Container	Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS Truvolume, Dolby Audio Optional, DTS Optional and programmable with 7.1/5.1 down-mixing (via passthrough)
Audio Out	Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC	− AV1 MP-10@L6.1 up to 8Kx4K@60fps − VP9 Profile-2@6.1 up to 8Kx4K@60fps − H.265 HEVC MP-10@L6.1 up to 8Kx4K@60fps − AVS3 Phase 1 up to 8Kx4K@60fps − AVS2-P2 Profile up to 8Kx4K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension	Support Google Play & APK install
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol

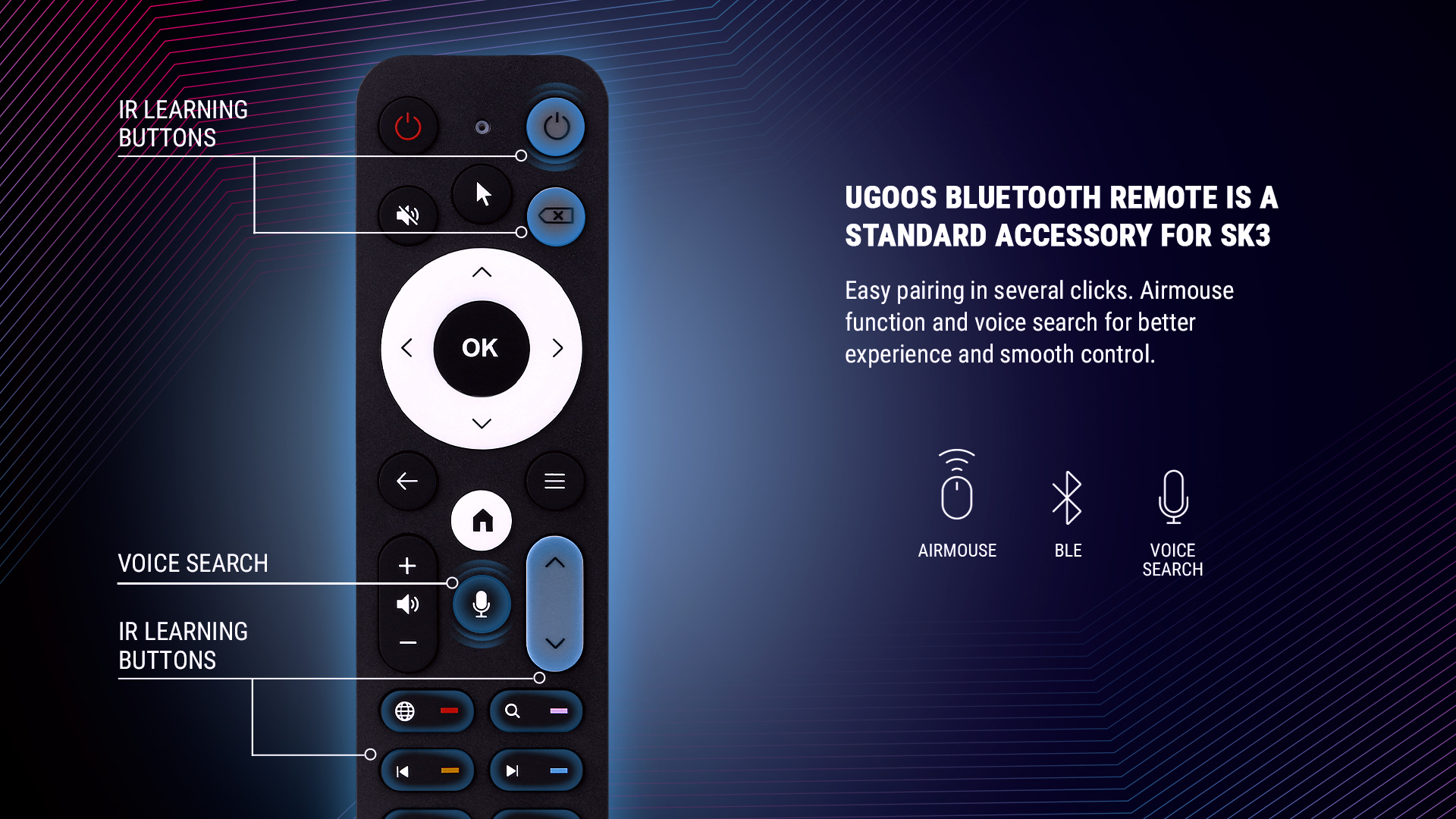

Remote Control	UR-02 remote with Voice+Gyro
Other Parameters:
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC

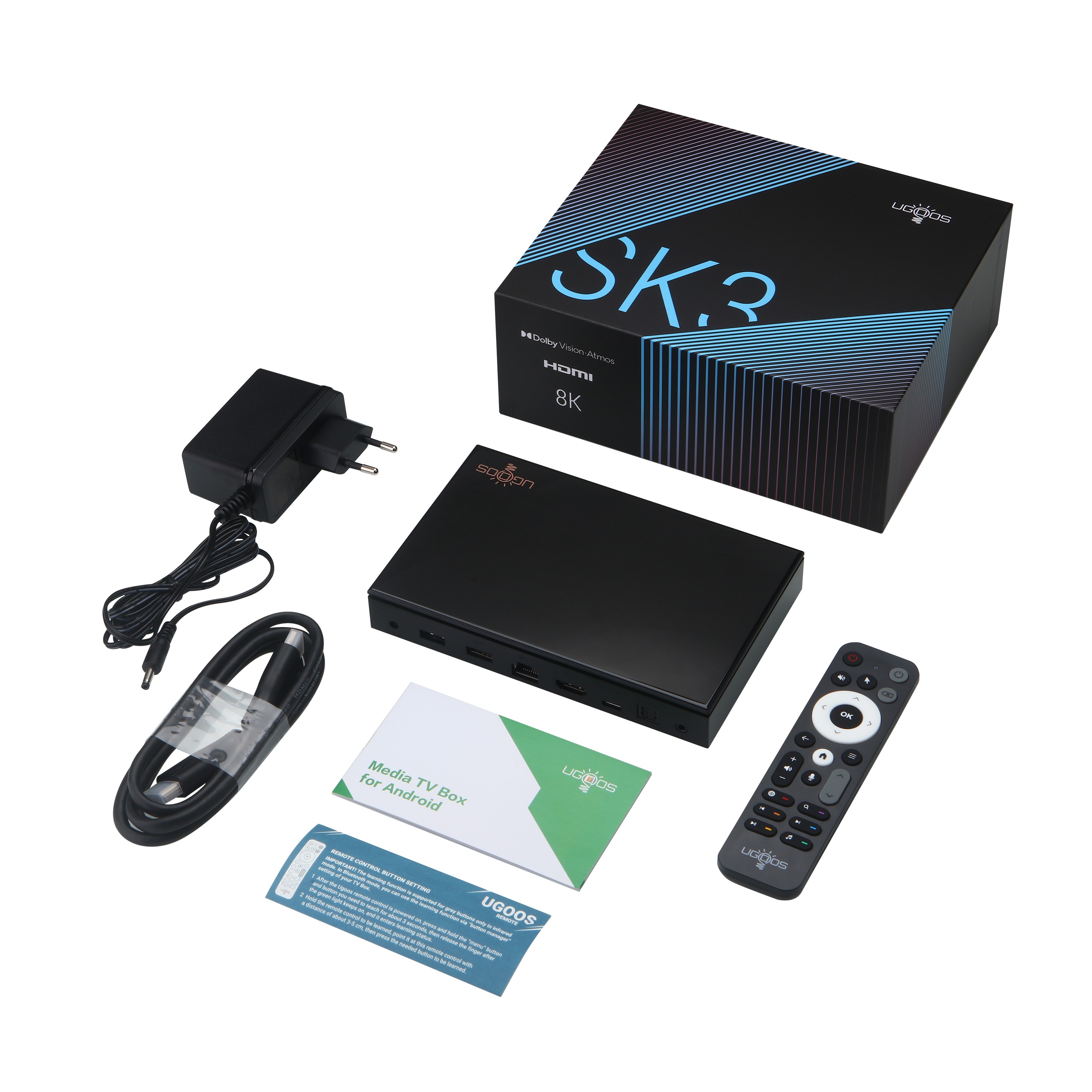

Package:
Dimensions	16.9X10.8x3 CM
Net Weight	1030g
Gift Box Size	20.5x16.7x7.9 CM
