| Hardware Spec: |
| Display Technology |
DLP |
| Display Chip |
0.3 720P DMD+RGBLED |
| Image Brightness |
150 ANSI lumen |
| Light Source |
LED(R,G,B) |
| Brightness uniformity |
90% |
| Contrast ratio |
500:1 |
| Resolution |
WVGA 854*480 |
| Lamps Type/Life |
10000 hours |
| Operation System |
Android 7.1, Android TV coming soon |
| Language |
Multi-Language support |
| Chipset |
RK3328 Cortex-A53 Quad core |
| GPU |
Embedded 3D GPU Mali 450MP2, Support OpenGL ES 1.1/2.0 and OpenVG 1.1. |
| SDRAM |
DDR3 2GB |
| Nand Flash |
16GB Nand Flash |
| Storage Extension |
Support MicroSD(TF), up to 32gb |
| Network |
2.4G/5G Wifi |
| Projection: |
| Throw Ratio |
1.4:1 (31 inch@1M) |
| Projection Size |
40”-300” |
| Projection Distance |
0.5m - 8m |
| Screen Ratio |
4:3/16:9/16:10 |
| Keystone Correction |
Automatic, vertical: ± 40 degrees |
| Focus mode |
Manual focus |
| Projection mode |
Front projection |

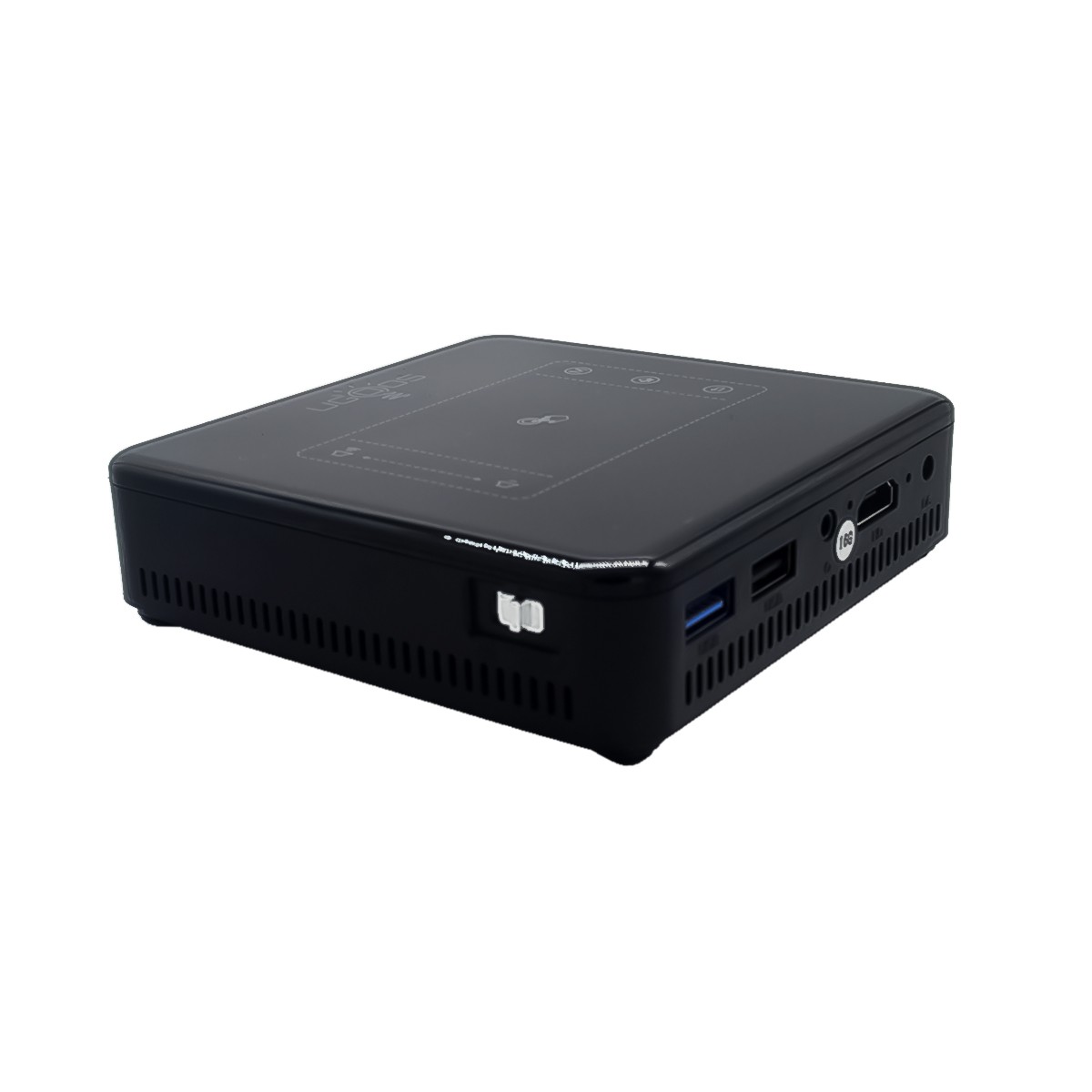

| Interfaces: |
| HDMI IN |
HDMI 1.4, 480P, 576P, 720P, 1080P |
| USB Port |
2XUSB Host, 1x USB2.0 + 1x USB3.0 |
| Earphone Jack |
3.5mm |
| Remote |
support IR and 2.4G wireless remotes |
| Card Reader |
1X Micro SD card (TF card) reader |
| Speaker |
3w speaker |
| Bluetooth |
BT 4.0 |
| Media Parameters: |
| Audio Container: |
Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc |
| Audio Out |
3w speaker or Earphone Jack 3.5mm |
| Video Decoder |
MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, |
| RV, VP6/VP8, Sorenson Spark, MVC, etc |
| Image browser |
Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8192x8192. |
| Text-Reading |
Support TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install)。 |
| Software Extension |
Support Google Play APK install |
| DLNA,Wimo Protocol |
Support DLNA,Wimo Protocol |
| Remote Control |
Support Smart phone remote control、2.4GHZ wireless air mouse/Remote controller. |
| IM Software |
Support Skype/QQ/MSN/GTALK (Depends on APK install) |
| Office Software |
WORD/EXCEL/PDF(Depends on APK install) |
| Others Parameters: |
| Operationg Temperature: |
-10~40℃ |
| Storage Temperature: |
-20~50℃ |
| Humidity environment |
5%-90%(No condensation) |
| Certification |
CE,FCC |
| Package: |
| Dimension |
114x114x29mm |
| Net Weight |
TBD |
| Carton Box Size |
L412*W362*H294mm |

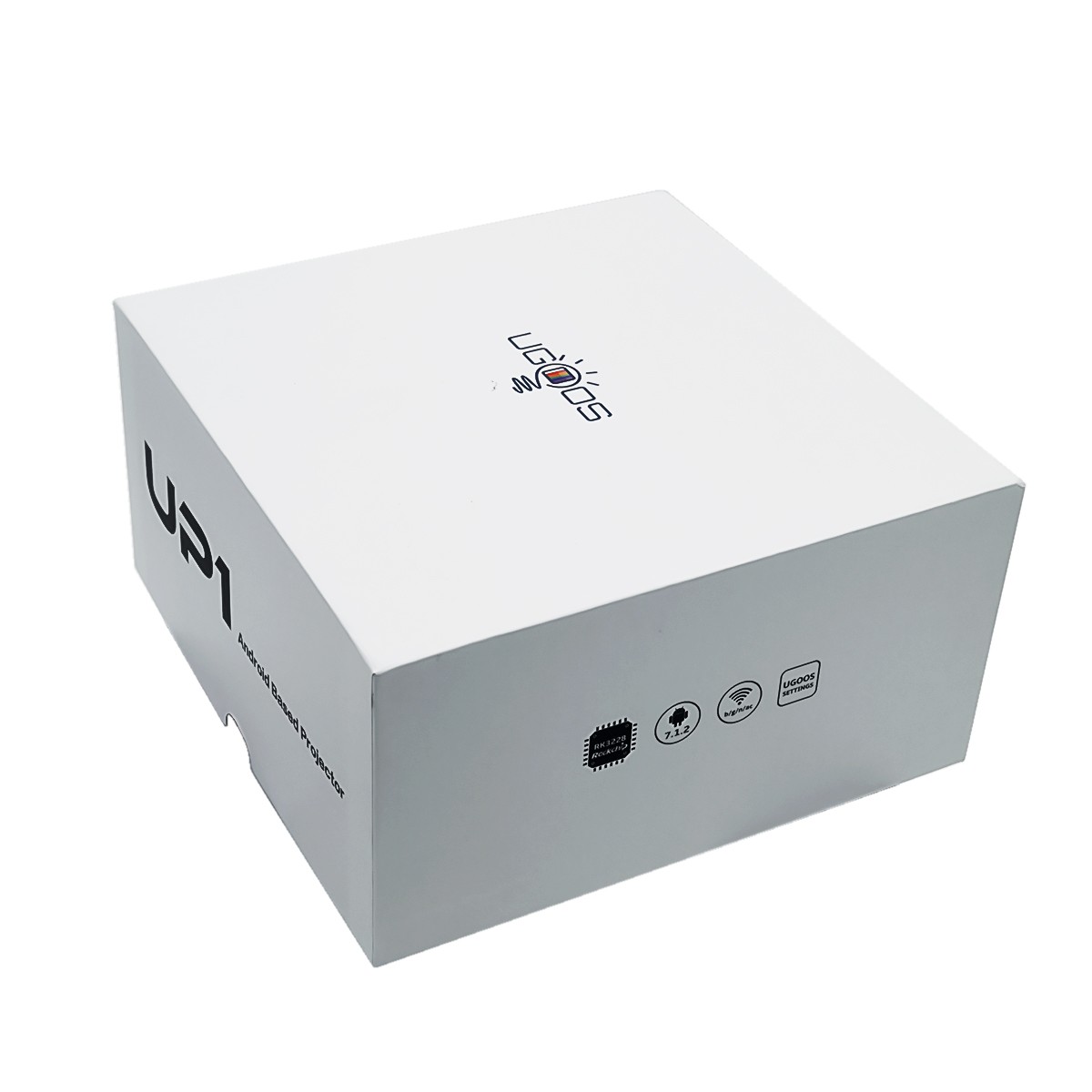

| Gift Box Size |
L180*W180*H95mm |
