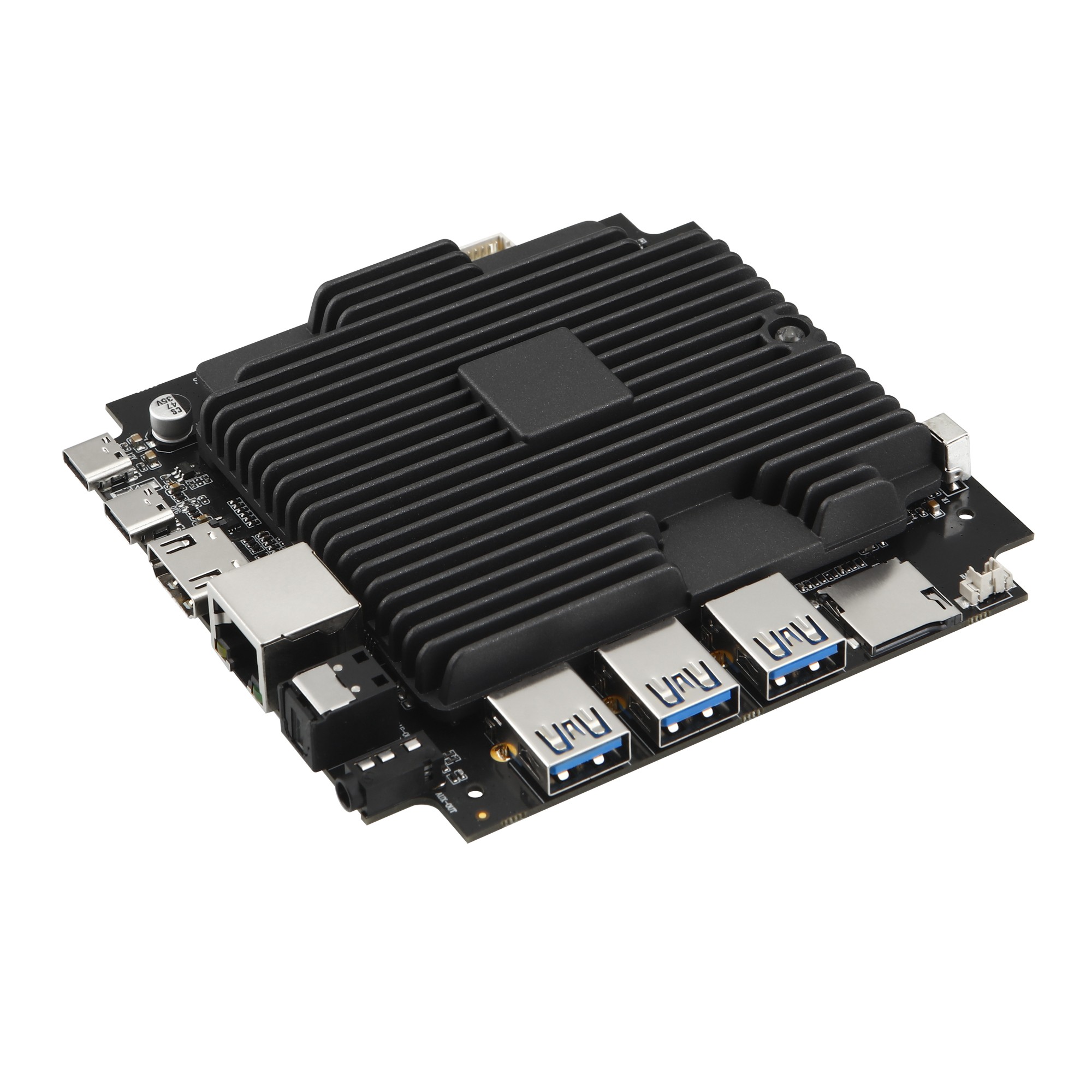

Ugoos AM8 PRO

Hardware Spec:



Operation System	Android 11.0
Language	English, Chinese ...Multi-Language support
CPU	Amlogic S928X-J with 12nm 2.0G HZ，A big core ARM Cortex-A76  and Quad core ARM Cortex-A55 CPU
GPU	Mali G57 MC2
RAM	LPDDR4 8GB
Storage Capacity (Flash)	64GB （EMMC）
WIFI	AP6276P(WIFI6) 2.4G+5G+6G the wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 Access Points with MIMO
Bluetooth	Bluetooth 5.3 with LE technology
The Extended Storage	TF Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply	TYPE-C 12V/1.67A
HDR	Support
Interfaces:
HDMI Output	HDMI 2.1a Type-A 8Kx4K max resolution
USB Port	USB A HOST 3.0*3 USB TYPE-C OTG 2.0*1
Optical Output	1*SPDIF
Led Work Light	Support
Network	1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII  interface)
Media Parameter:
Audio Container	Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS Truvolume, Dolby Audio Optional, DTS Optional and programmable with 7.1/5.1 down-mixing
Audio Out	Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC	− AV1 MP-10@L6.1 up to 8Kx4K@60fps − VP9 Profile-2@6.1 up to 8Kx4K@60fps − H.265 HEVC MP-10@L6.1 up to 8Kx4K@60fps − AVS3 Phase 1 up to 8Kx4K@60fps − AVS2-P2 Profile up to 8Kx4K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension	Support Google Play & APK install
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol
Remote Control	BT remote with Voice+Gyro
Other Parameters:
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC
Package:
Dimensions	11.5X11.5x2.4 CM
Net Weight	300g
Gift Box Size	19.2x19.2x7 CM
