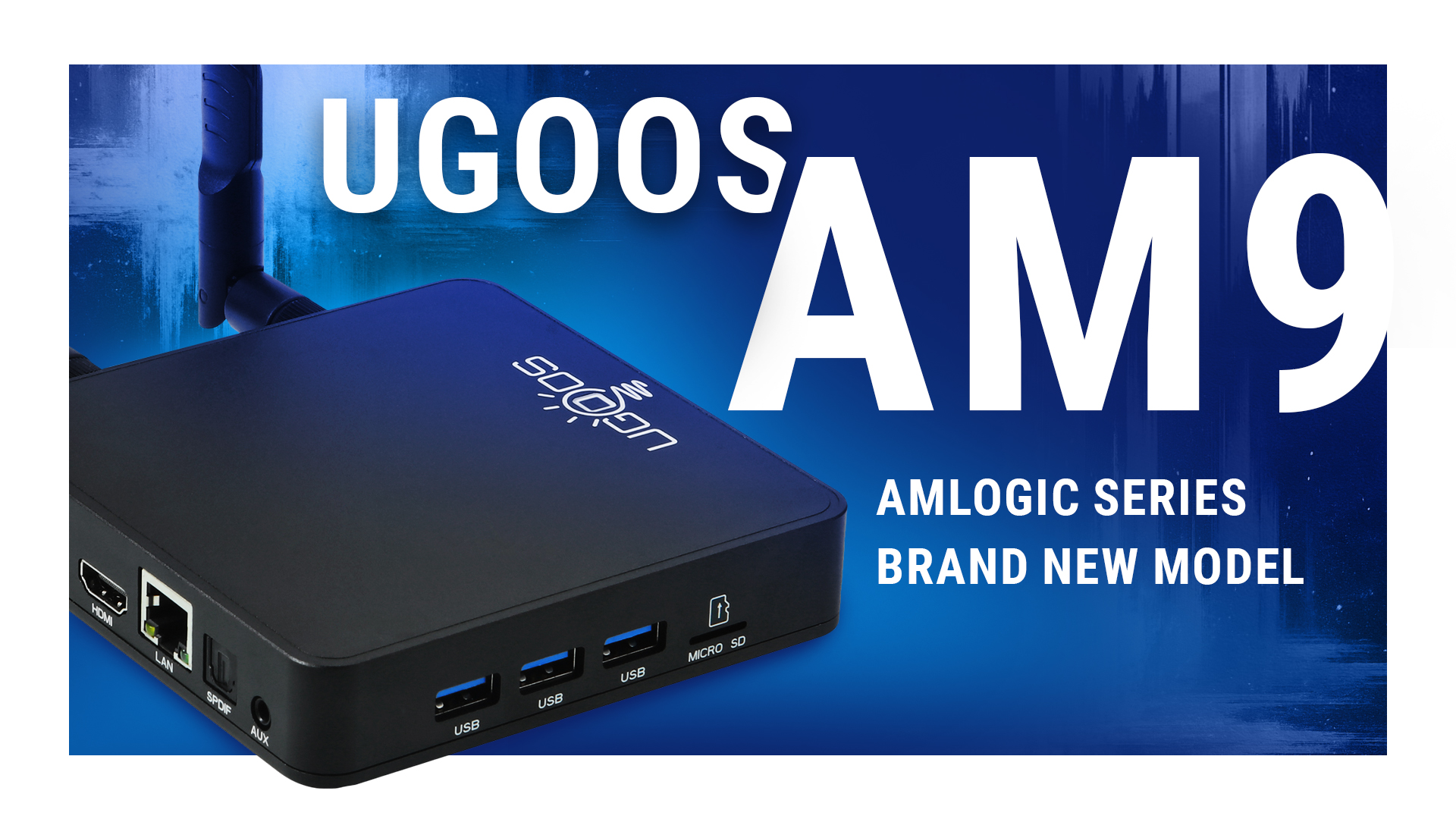

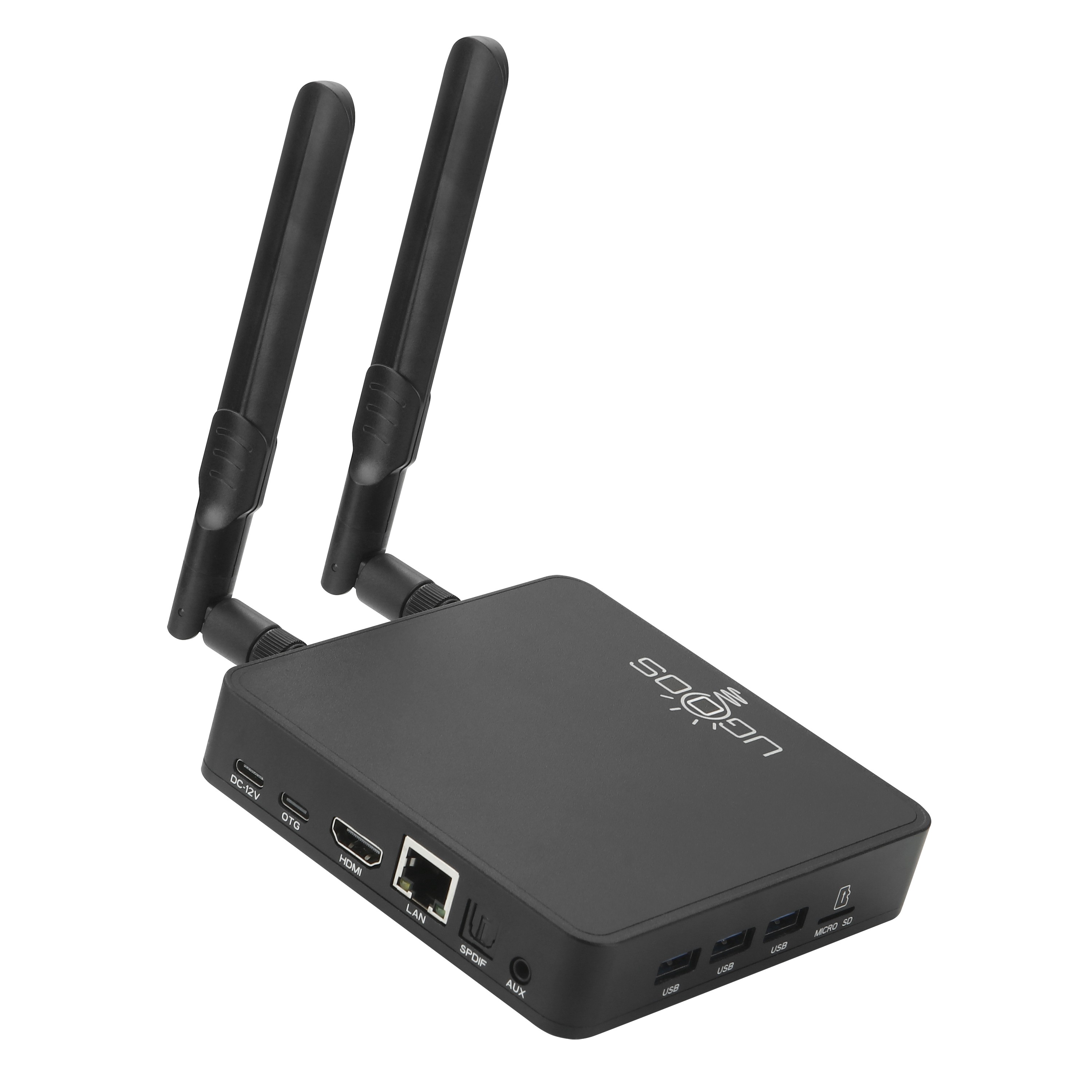

Ugoos AM9 64bit

AM 9 is a next-generation device. Amlogic S905x5 CPU enhanced capabilities include following improvements:

a 6nm manufacturing process and advanced video codecs like AV1 and H.266.

SoC also boasts a Mali-G310 GPU, improved AI capabilities.

Description:

Hardware Spec:

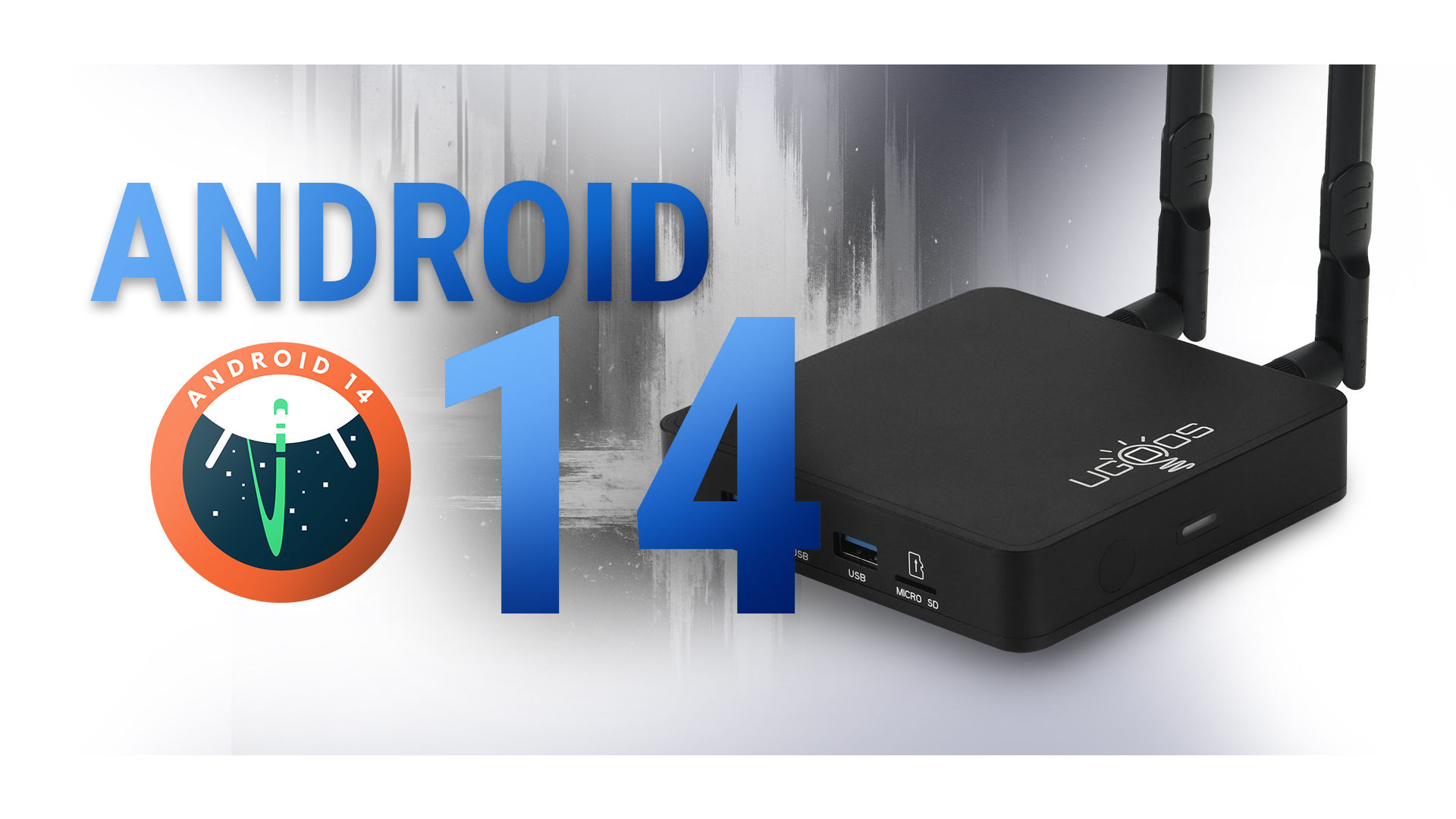

Operation System	Android 14.0
Language	Multi-Language support

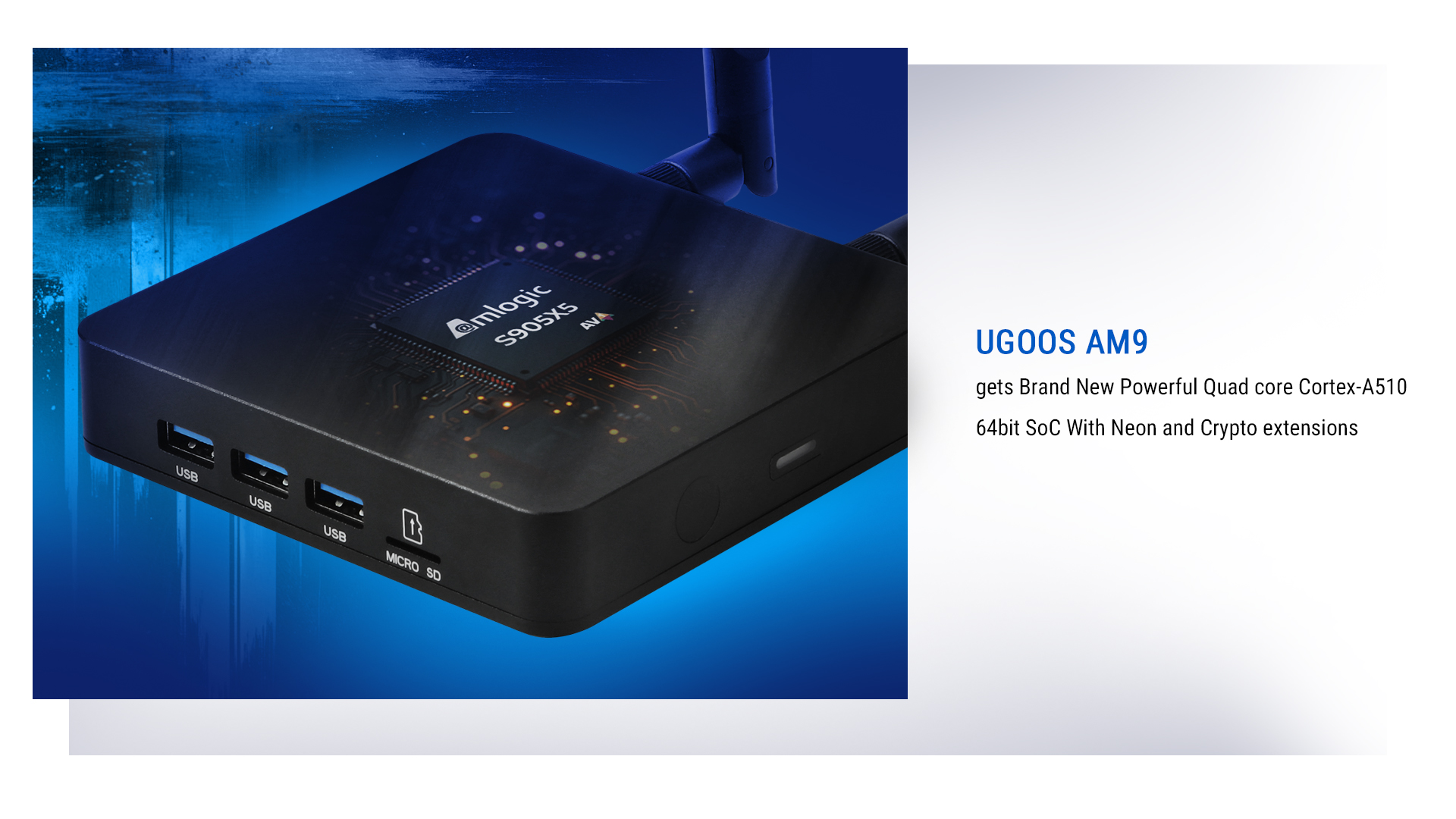

CPU	Amlogic S905x5 Quad core ARMv9.0 Cortex-A510 CPU
GPU	Mali G310 V5
NPU	- Neural network accelerator (NNA) with Tensor programmable engine (TPU) architecture - 512KB Internal RAM and SMMU address re-mapper - Supports all major deep learning frameworks including Tensorflow, Tensorflow Lite, ONNX, Pytorch, Darknet, MxNet, and Caffe 4,3.2~4 TOPS
RAM	LPDDR4X 4GB
Storage Capacity (Flash)	64GB （EMMC）
WIFI	11a/b/g/n/ac/ax 2T2R IEEE802, Max: 1201 Mbps
Bluetooth	Bluetooth 5.2 Module
The Extended Storage	TF Card (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply	TYPE-C 12V/1.67A
HDR	Support

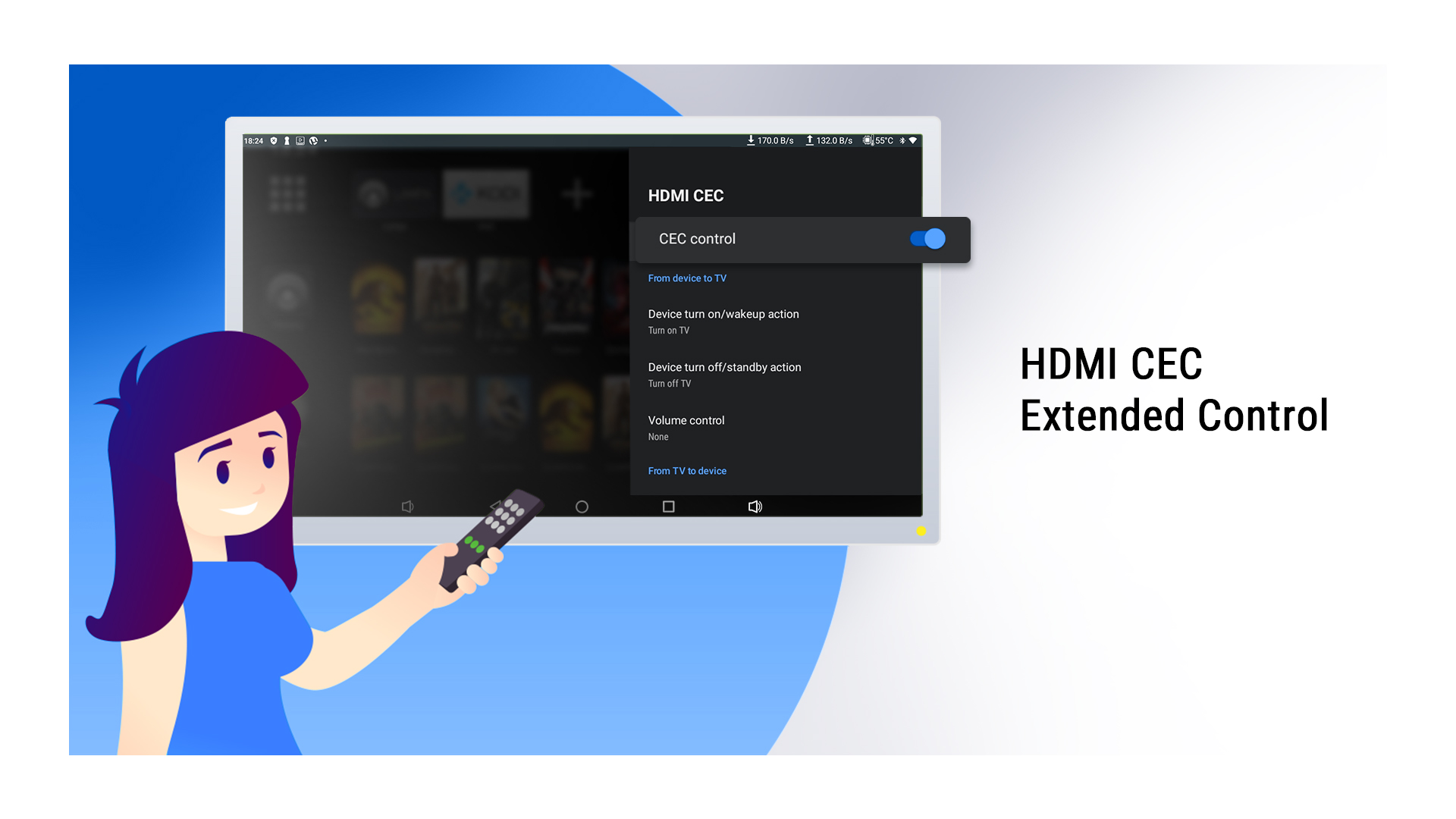

CEC	Support

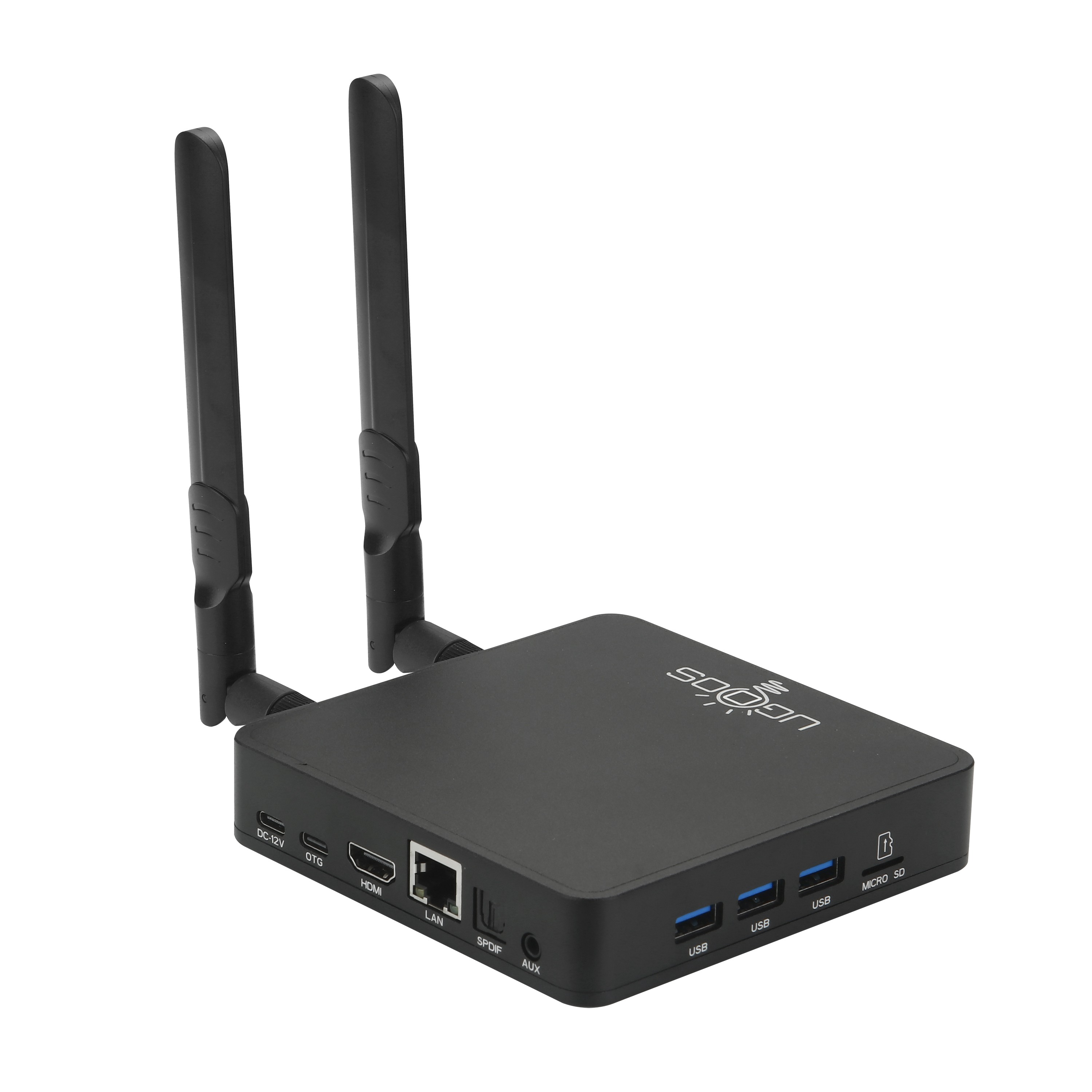

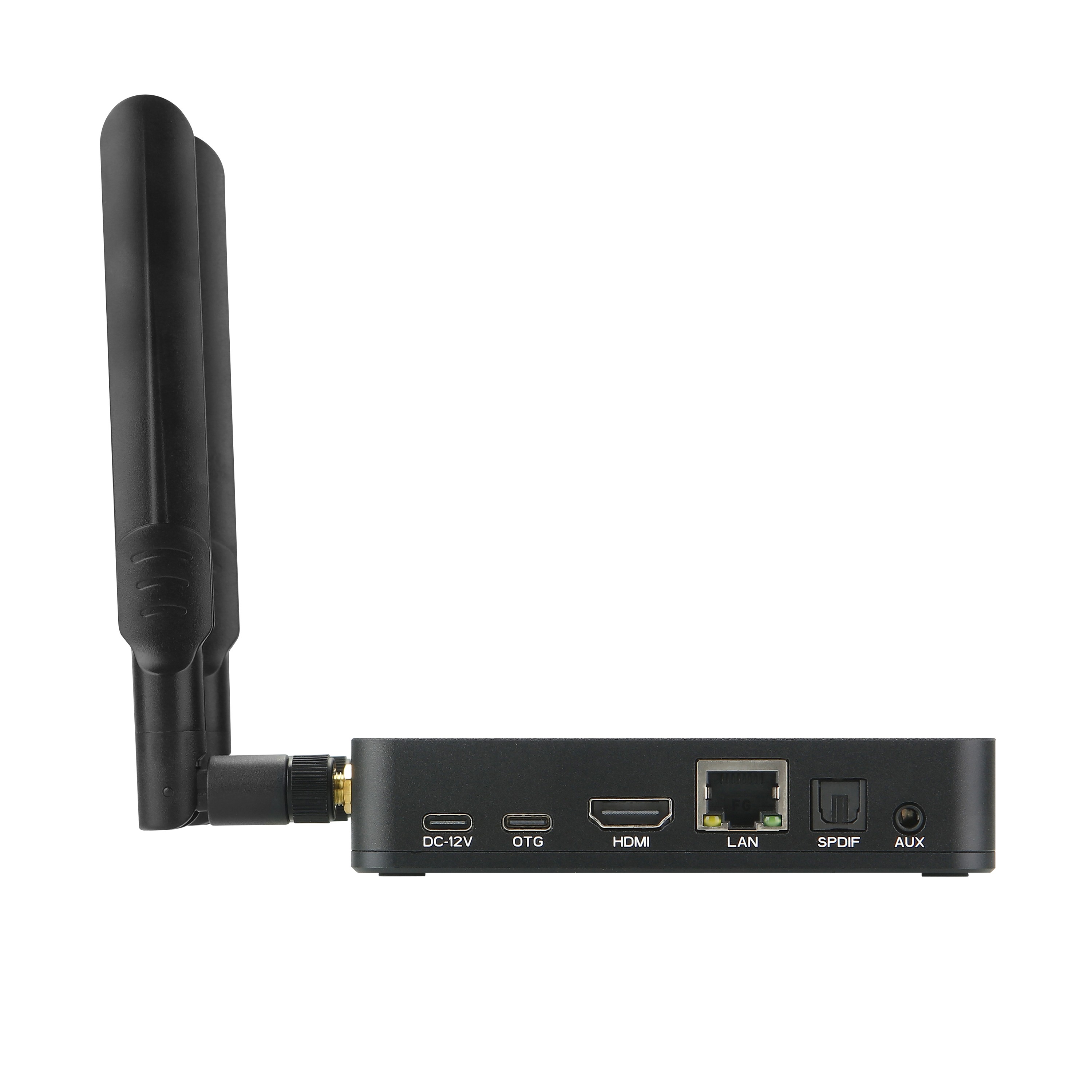

Interfaces:
HDMI Output	Built-in HDMI 2.1b transmitter including both controller and PHY supporting eARC, CEC, ALLM,VRR, QMS, Dynamic HDR and HDCP 2.2/2.3, 4Kx2K@60fps max resolution output

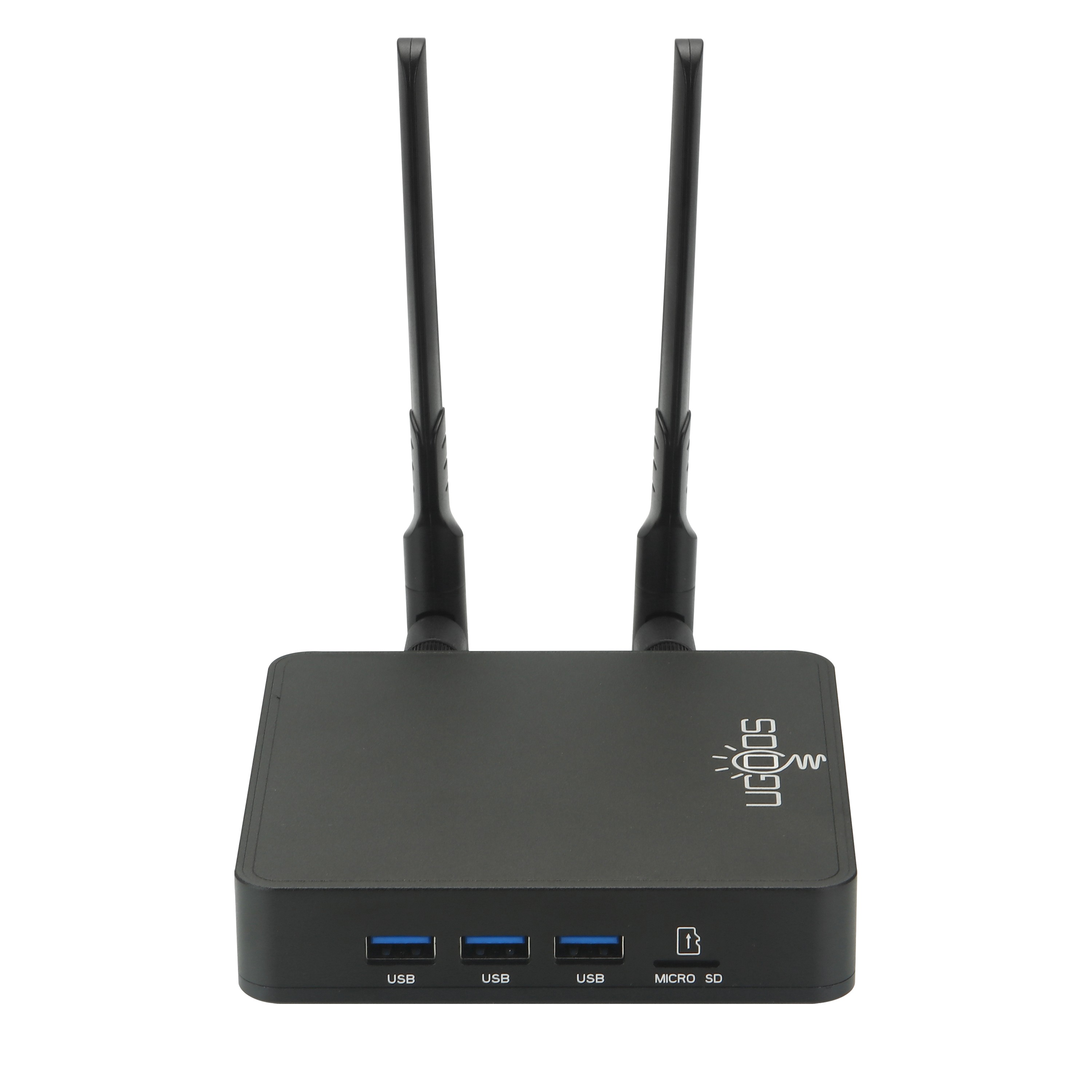

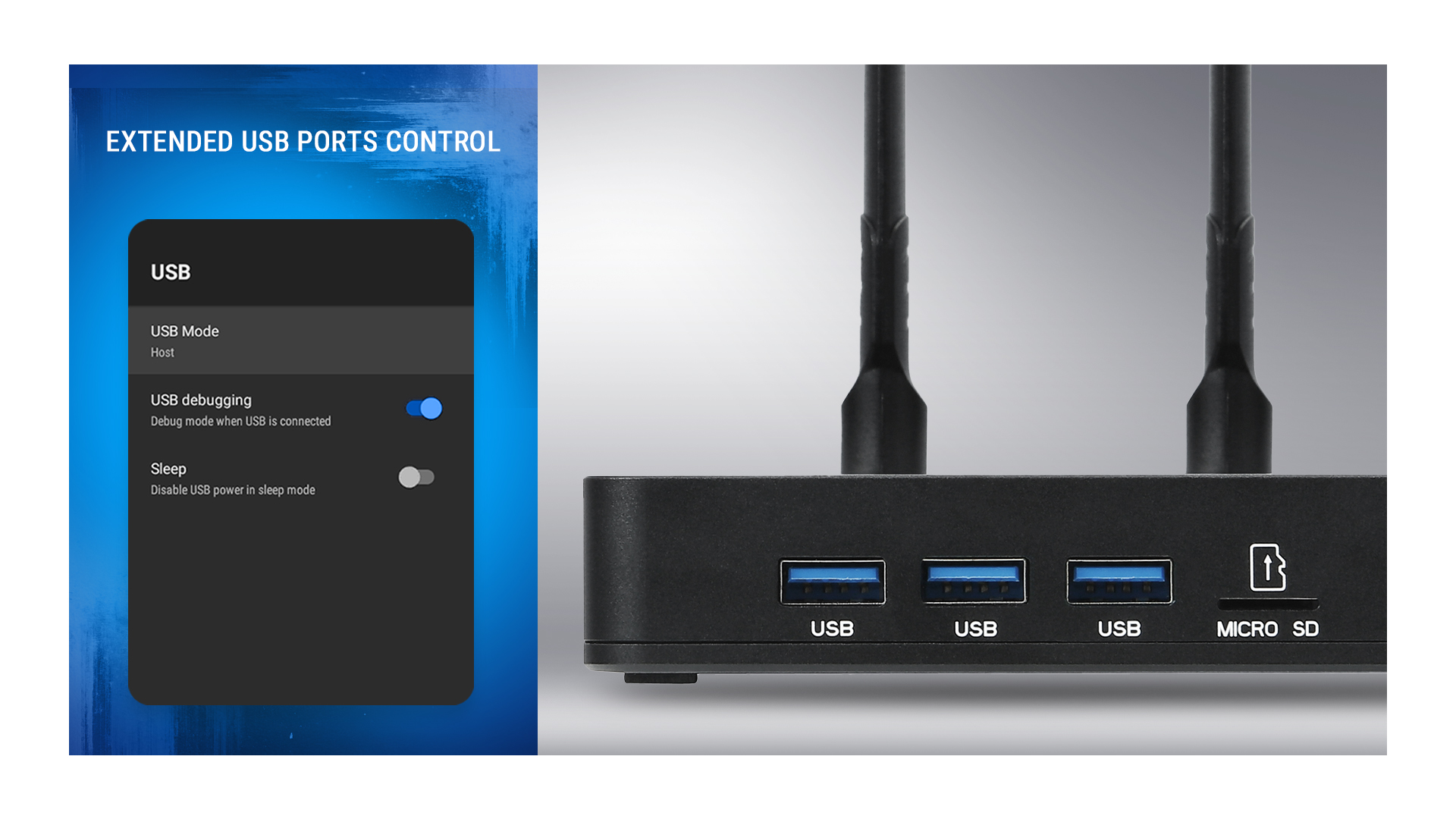

USB Port	USB A HOST 3.03 USB TYPE-C OTG 2.01
Optical Output	1*SPDIF
Led Work Light	Support

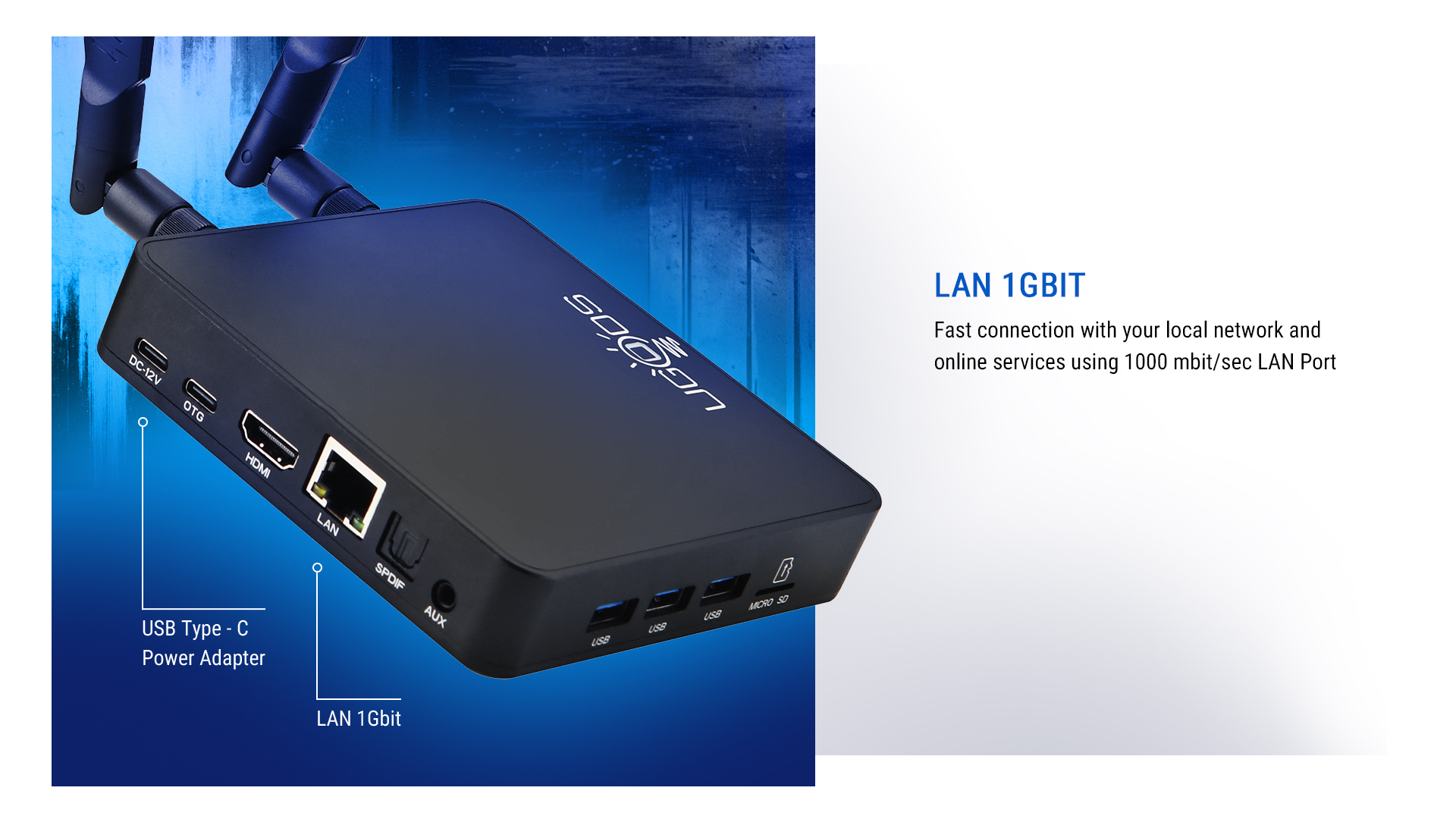

Network	1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface)
Media Parameters:
Audio Containers	Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS TruVolume, Dolby Audio Optional, DTS Optional and programmable with 7.1/5.1 down-mixing
Video Output	Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4KX2K
Video CODEC	− H.266 VVC main 10@L5.2 up to 4Kx2K@120fps − AV1 MP-10@L5.2 up to 4Kx2K@120fps − VP9 Profile-2 up to 4Kx2K@120fps − H.265 HEVC MP-10@L5.2 up to 4Kx2K@120fps − AVS3-P2 Profile up to 4Kx2K@120fps − H.264 AVC HP@L5.2 up to 4Kx2K@60fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension	Support Google Play & APK install
Other Parameters:

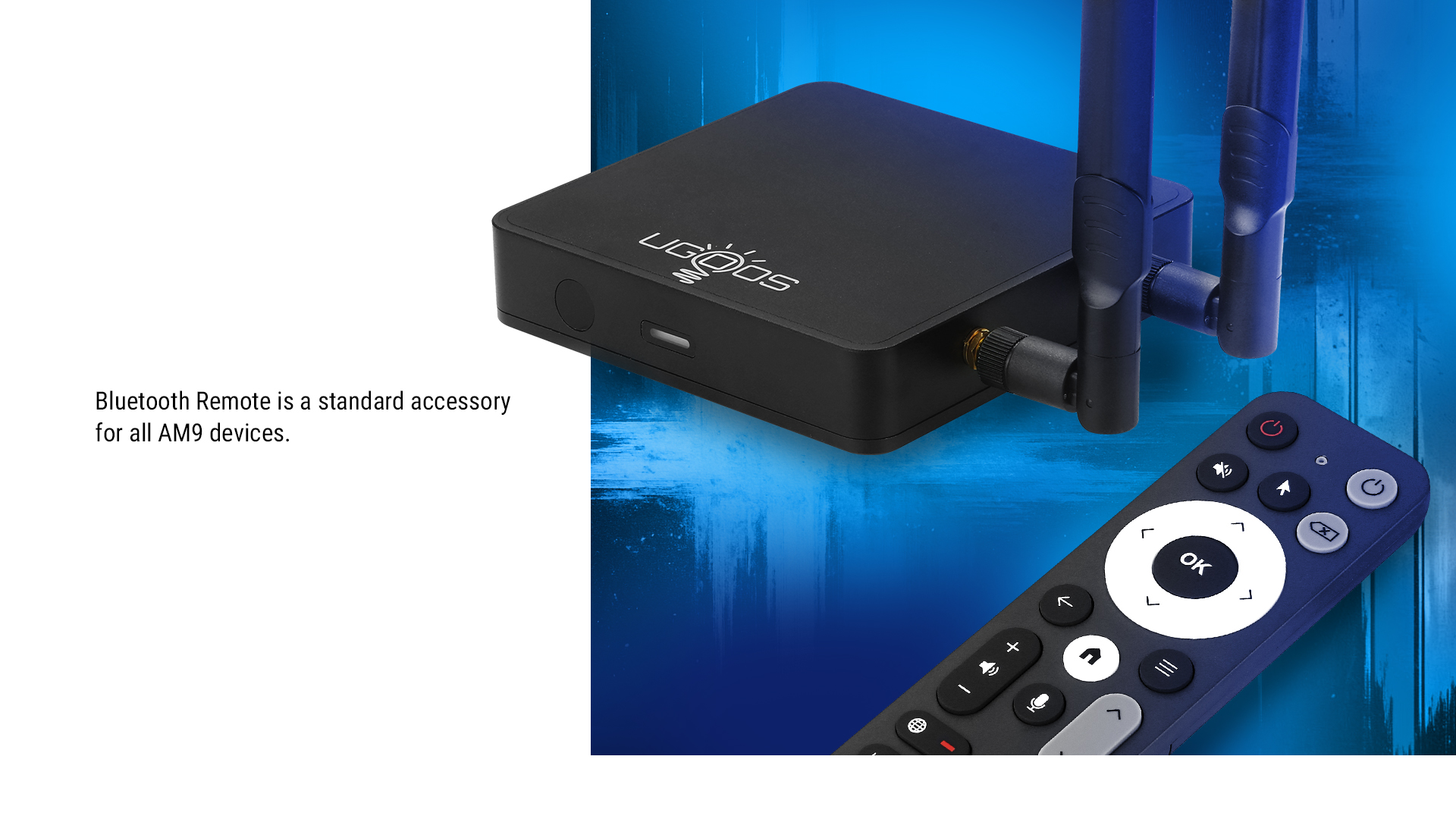

Remote Control	BT remote with Voice+Gyro
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC
OEM Options	Ugoos AM9 available with 4G Lte module/SSD port for OEM orders

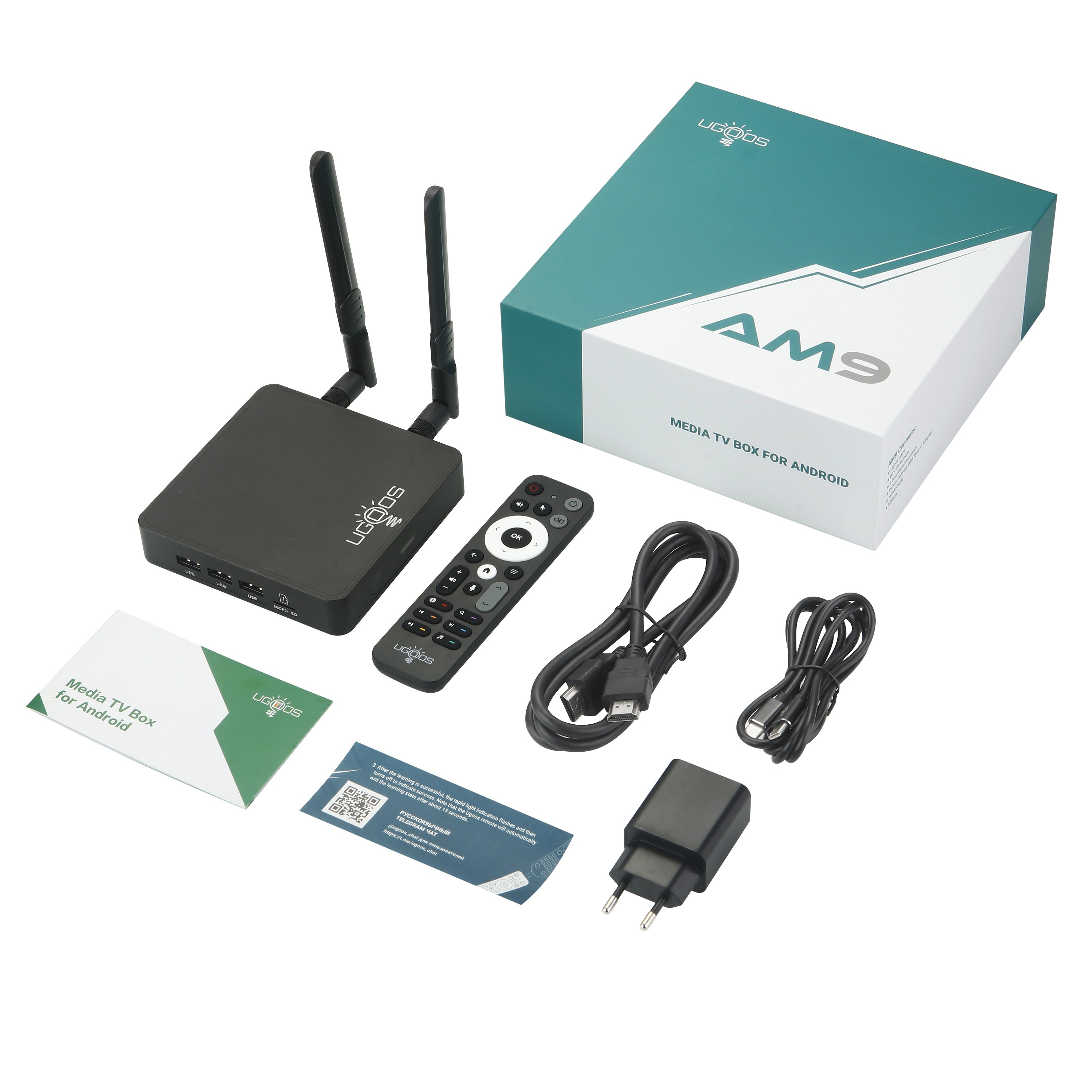

Package:
Dimensions	11.6X11.6x2.8 CM
Gift Box Size	15x16x9 CM
