Ugoos SK2

DESCRIPTION SPECIFICATION DOWNLOADS (0)

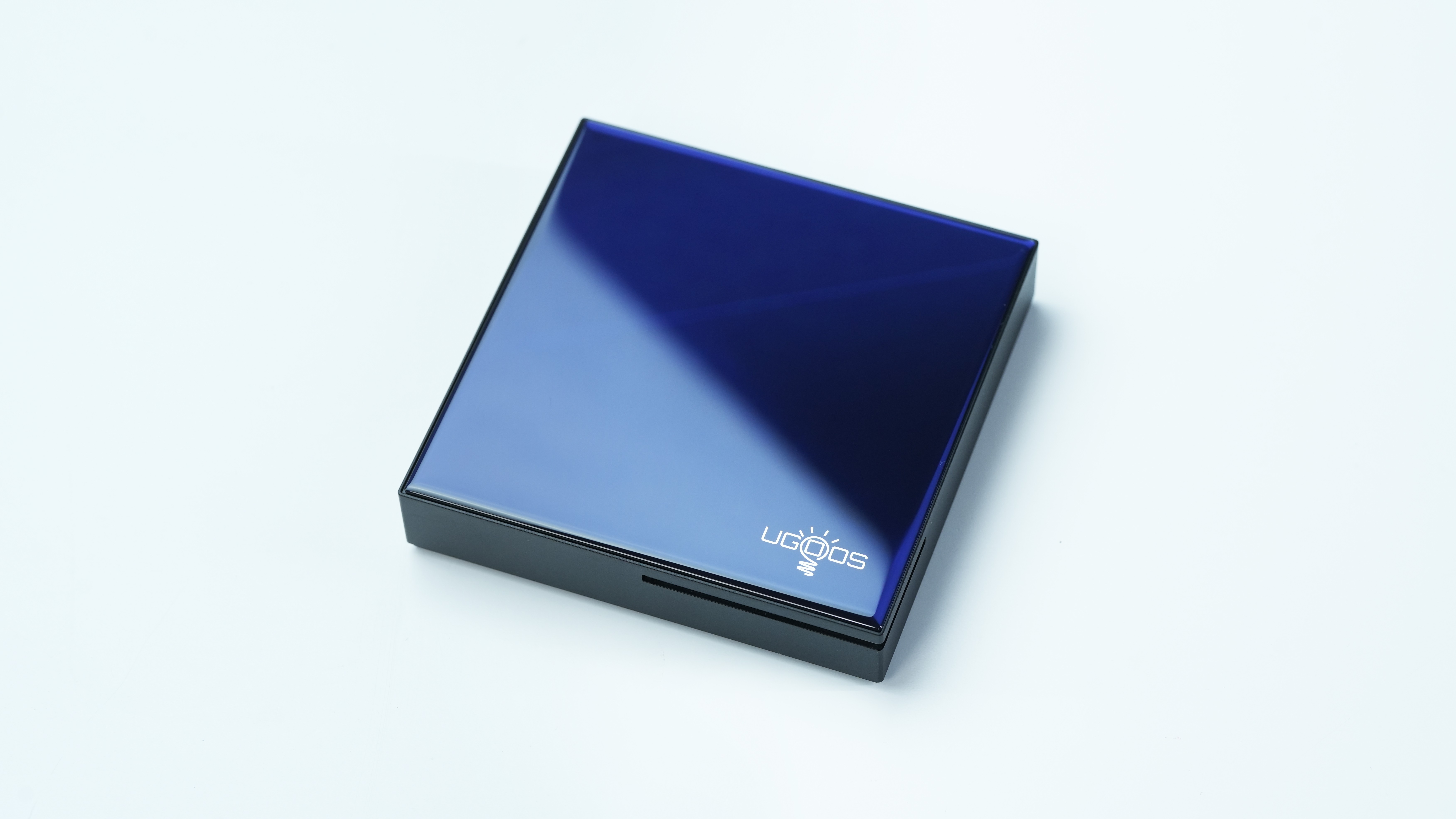

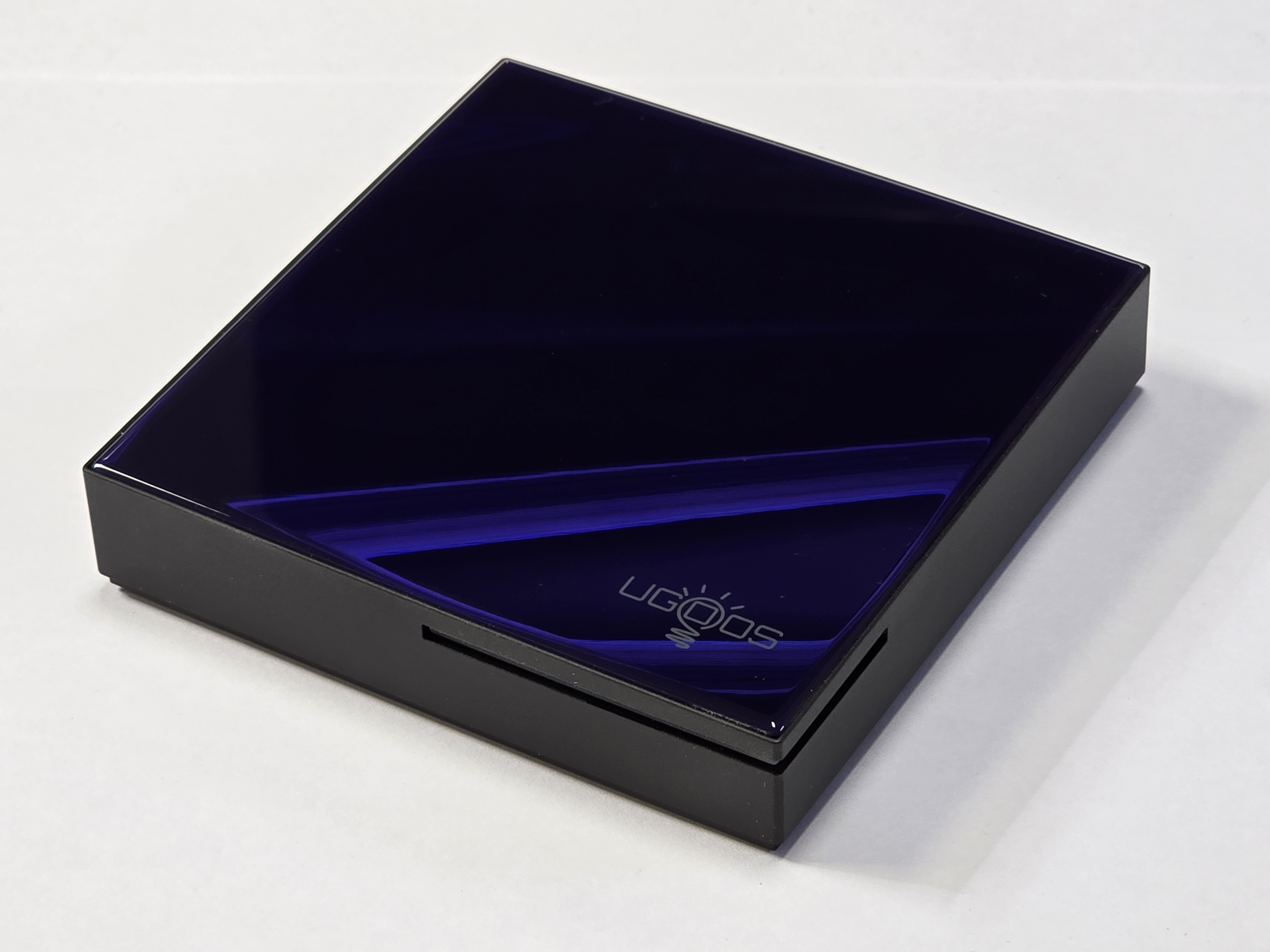

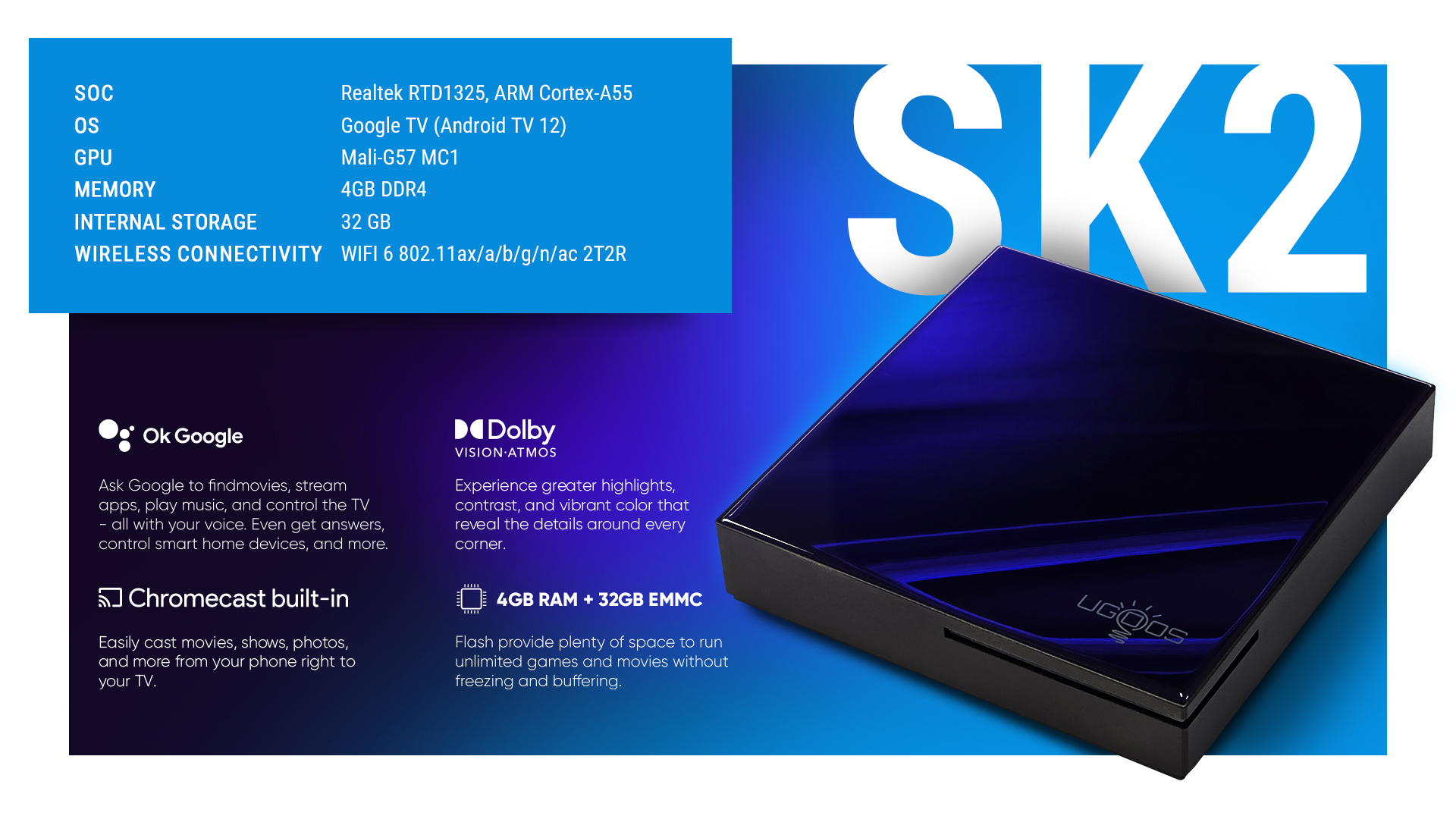

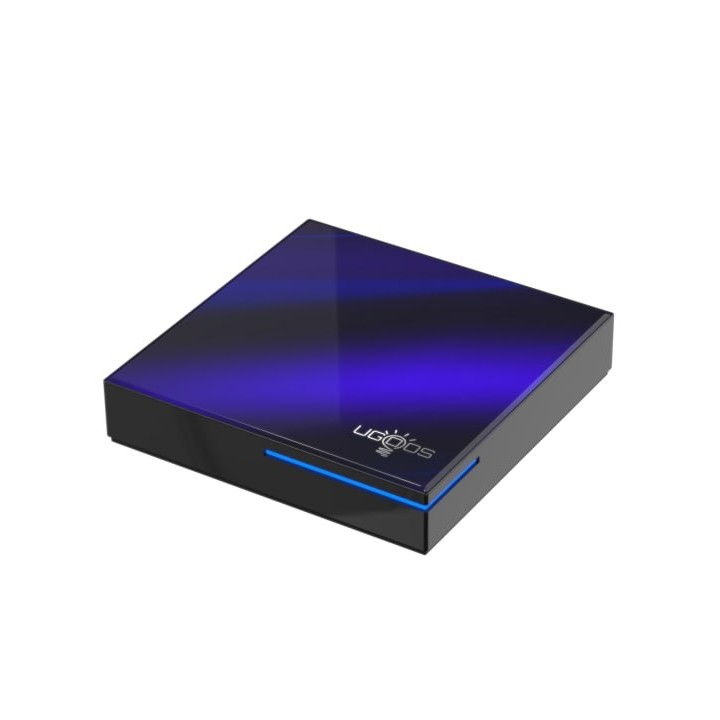

Ugoos SK2

The first Google TV Box by Ugoos is ready for launch!

Netflix / Disney / Hulu / HBO / Disney+ / Paramount + / Prime Video

and other world streaming platforms' content is available in original quality

Description:

Hardware Spec:

Operation System	Google TV (Android TV 12)
Language	Multi-Language support
CPU	Realtek RTD1325, ARM Cortex-A55 Quad-Core processor with floating-point unit and NEON SIMD engine embedded, supporting the 64/32-bit ARMv8.2 architecture
GPU	Mali-G57 MC1, GPU supports Open GL E5 3.2,Vulkan 1.3
RAM	LPDDR4 4GB
Storage Capacity (Flash)	32GB （EMMC）
WIFI	WIFI 6 2.4/5/6Ghz complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 Access Points with MIMO standard
Bluetooth	Bluetooth 5.2 with LE technology
Power Supply	DC Power adapter 12V/1.0A
Licenses	Google TV, Widewine L1 Support, Dolby Audio, Dolby Vision, DTS Audio

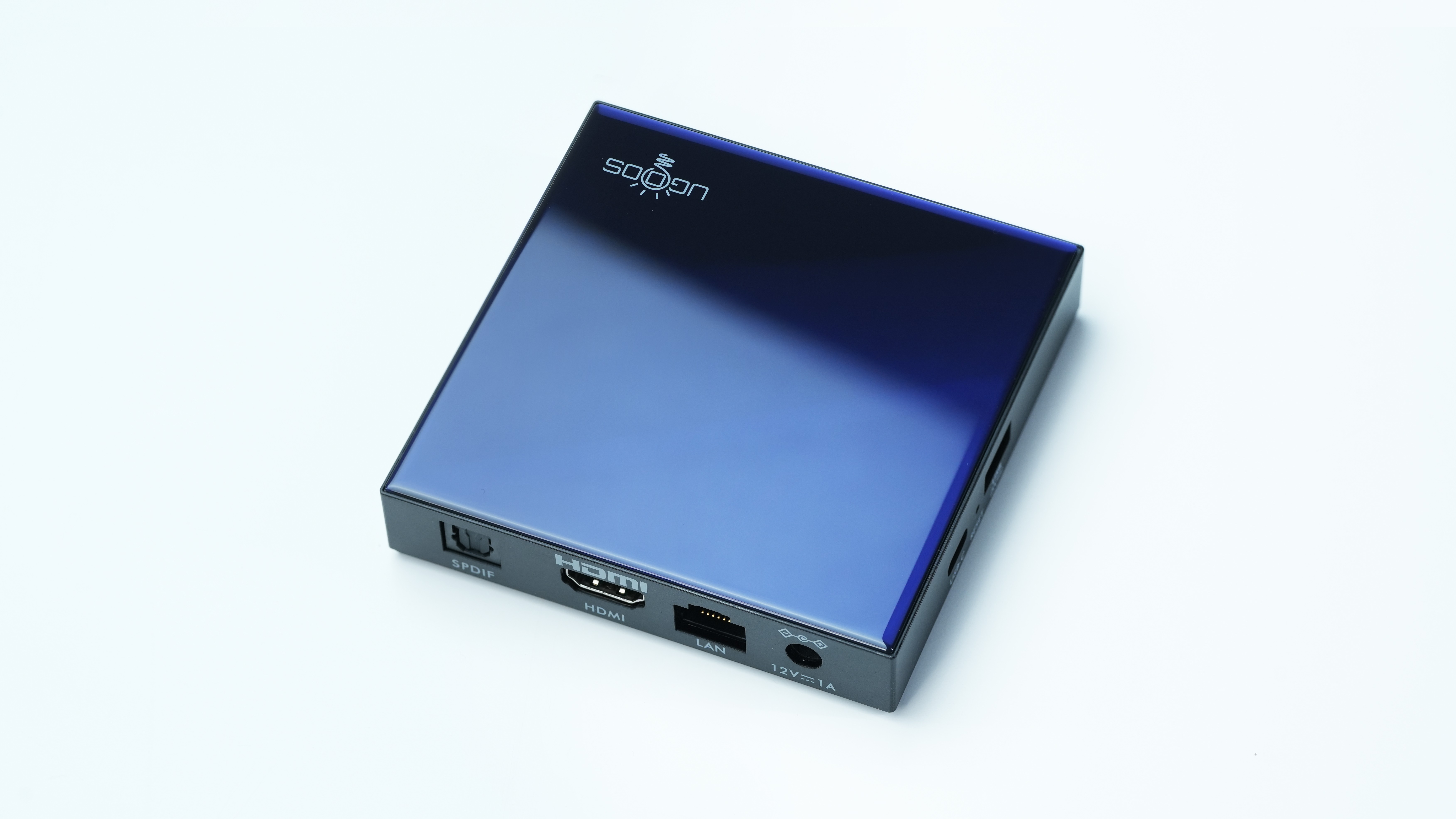

Interfaces:
HDMI Output	HDMI 2.1a Type-A 4K max resolution

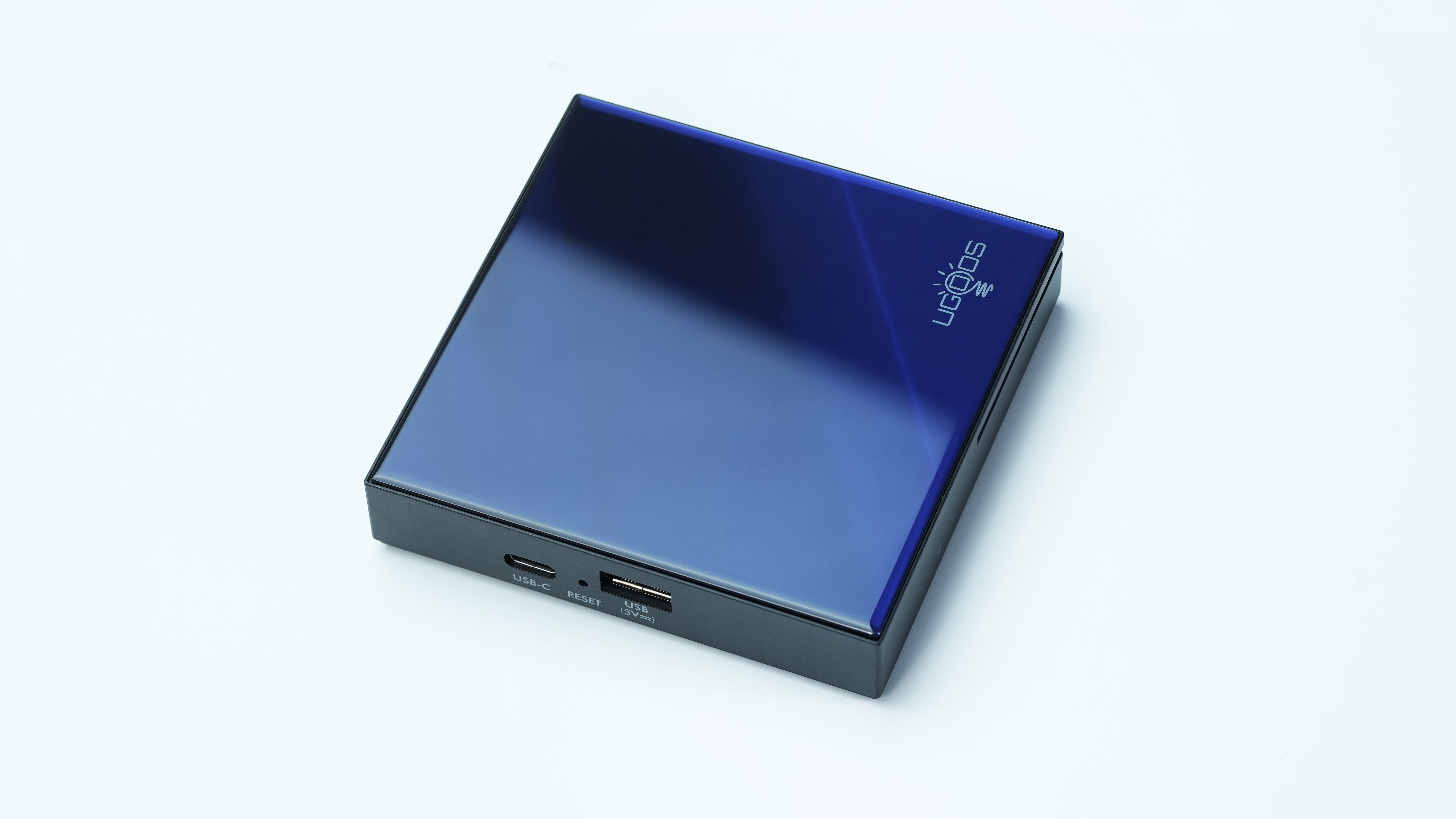

USB Port	1USB 2.0 & 1USB Type C
Optical Output	1*SPDIF
Led Work Light	Support
Network	1*RJ45 100M (100M Ethernet Integrated IEEE 802.3 10/100M Ethernet MAC with RGMII interface)
Media Parameters:
Audio Container	Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS Truvolume, Dolby Audio Optional, DTS Optional and programmable with 7.1/5.1 down-mixing
Audio Out	Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC	− AV1 MP-10@L6.1 up to 8Kx4K@60fps − VP9 Profile-2@6.1 up to 8Kx4K@60fps − H.265 HEVC MP-10@L6.1 up to 8Kx4K@60fps − AVS3 Phase 1 up to 8Kx4K@60fps − AVS2-P2 Profile up to 8Kx4K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension	Support Google TV Play & APK install
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol
Remote Control	Android TV supported Remote with apps buttons and Voice search
Other Parameters:
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC

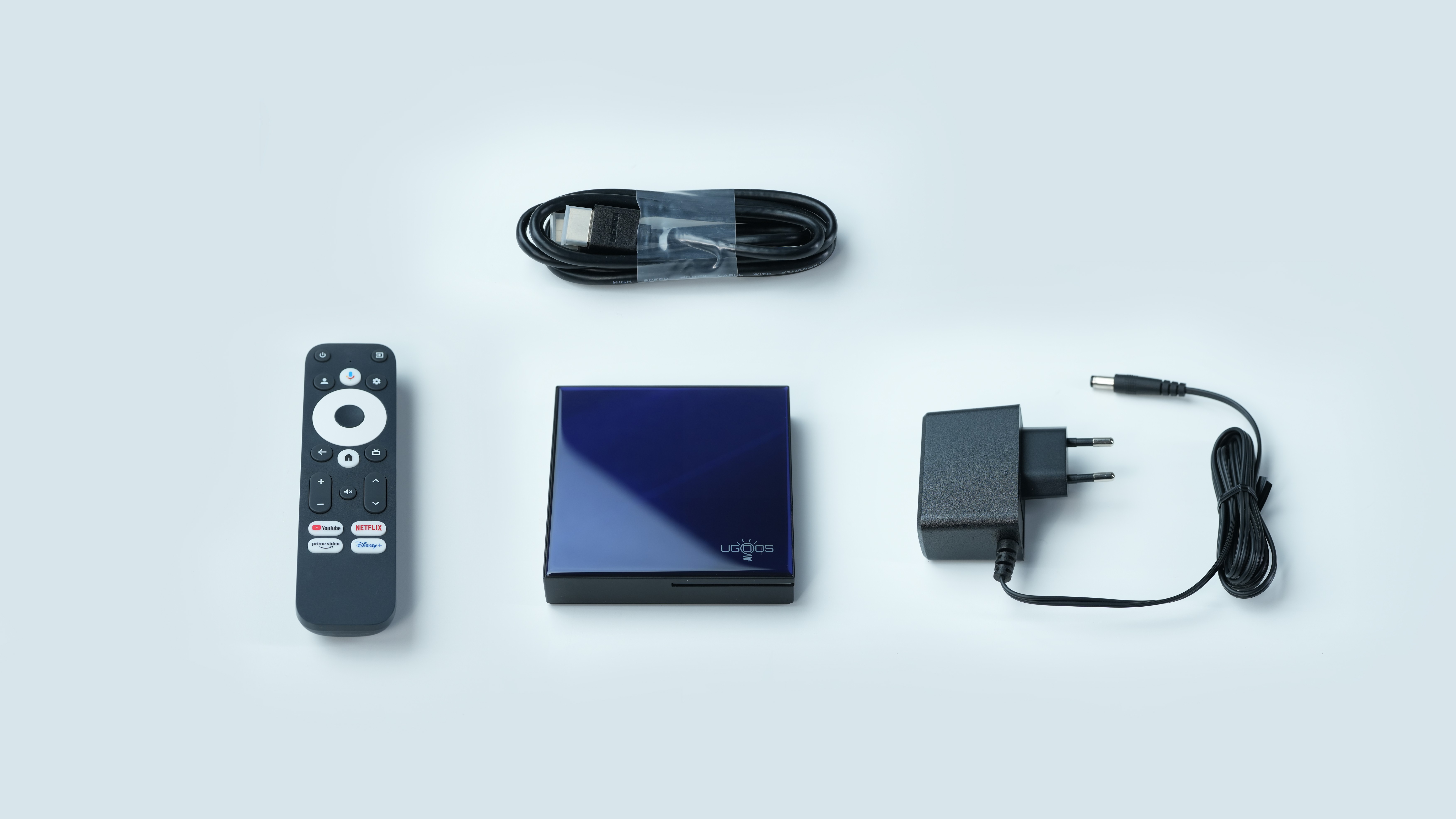

Package:
Dimensions	96x96x19mm
Net Weight	730g
Gift Box Size	16716762.5 mm
