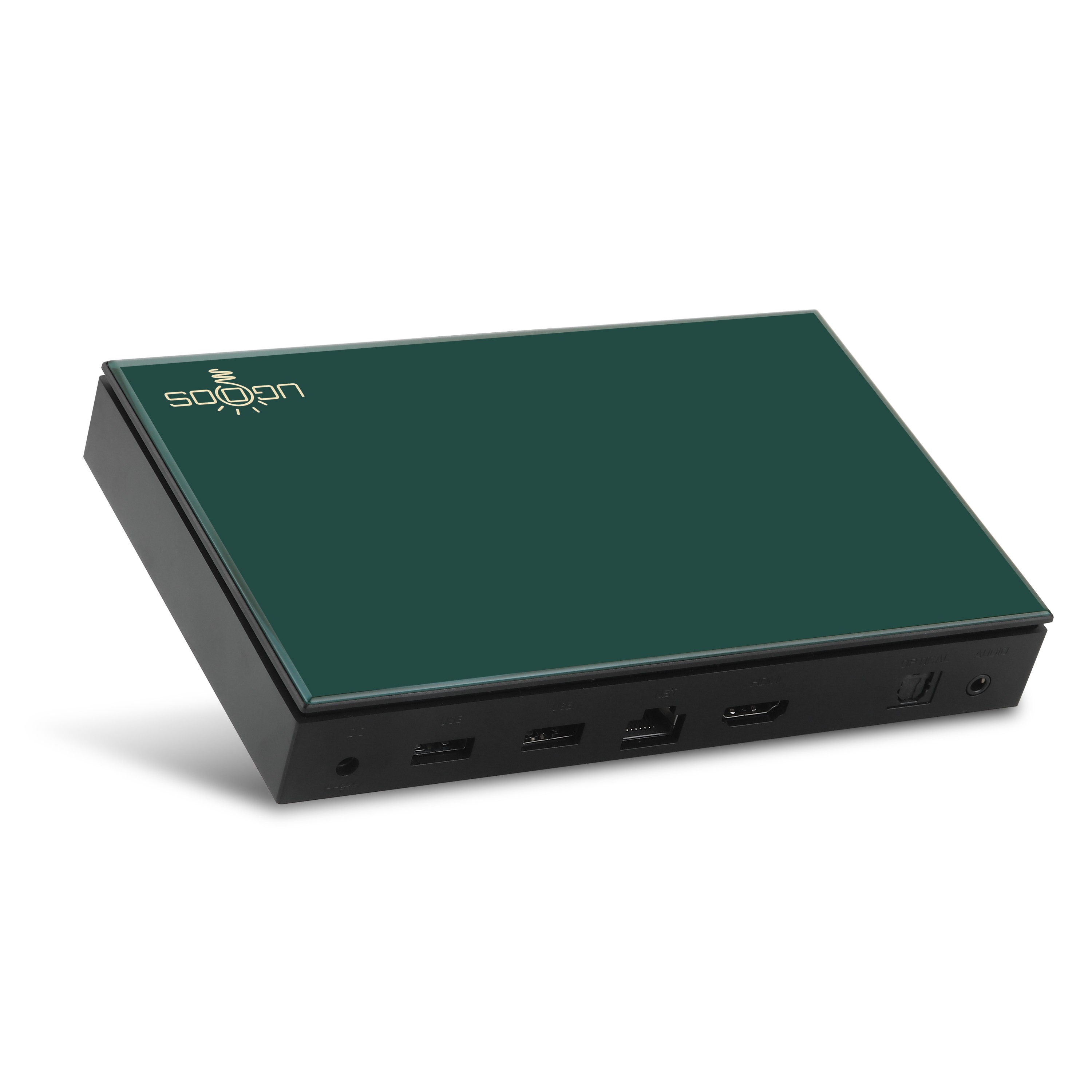

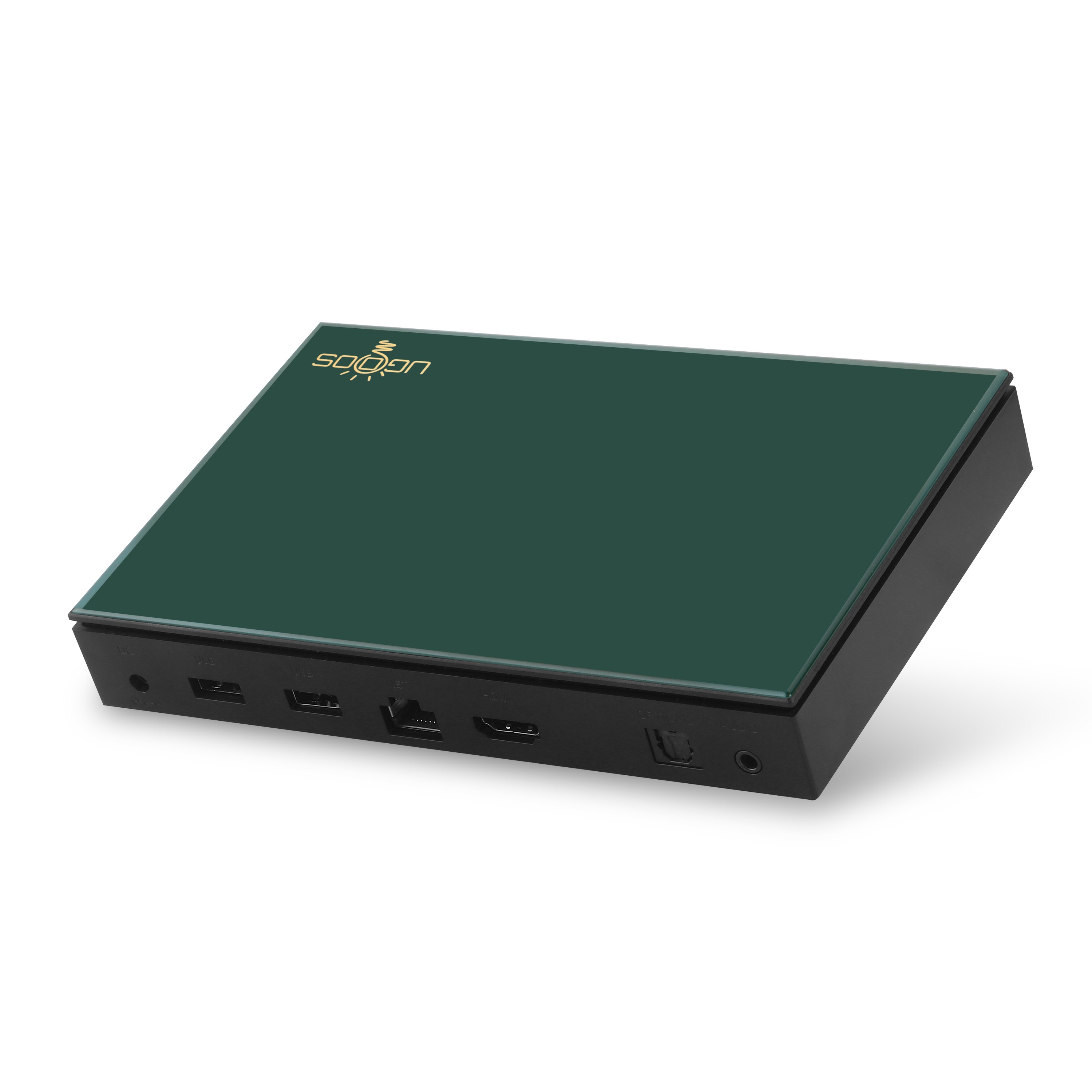

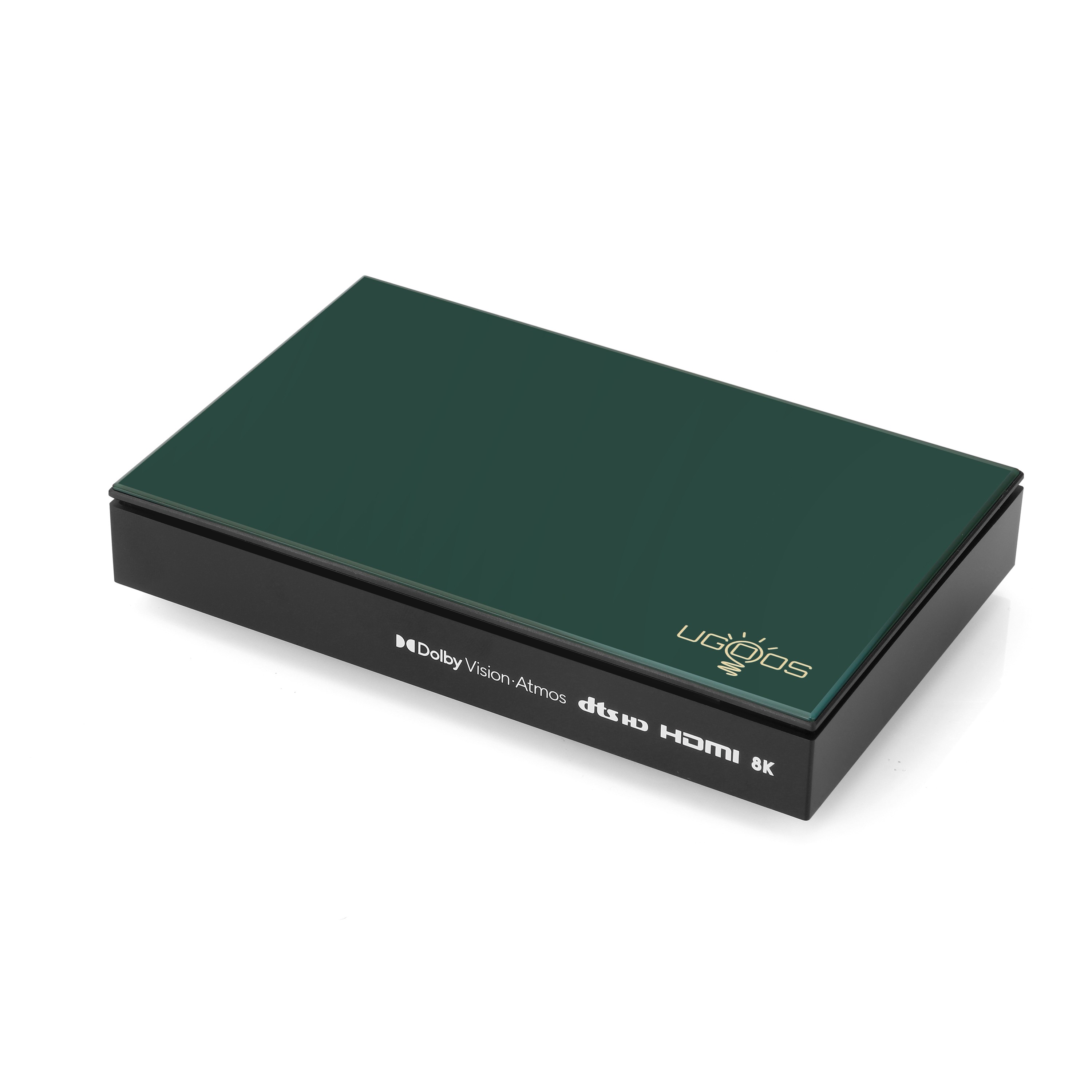

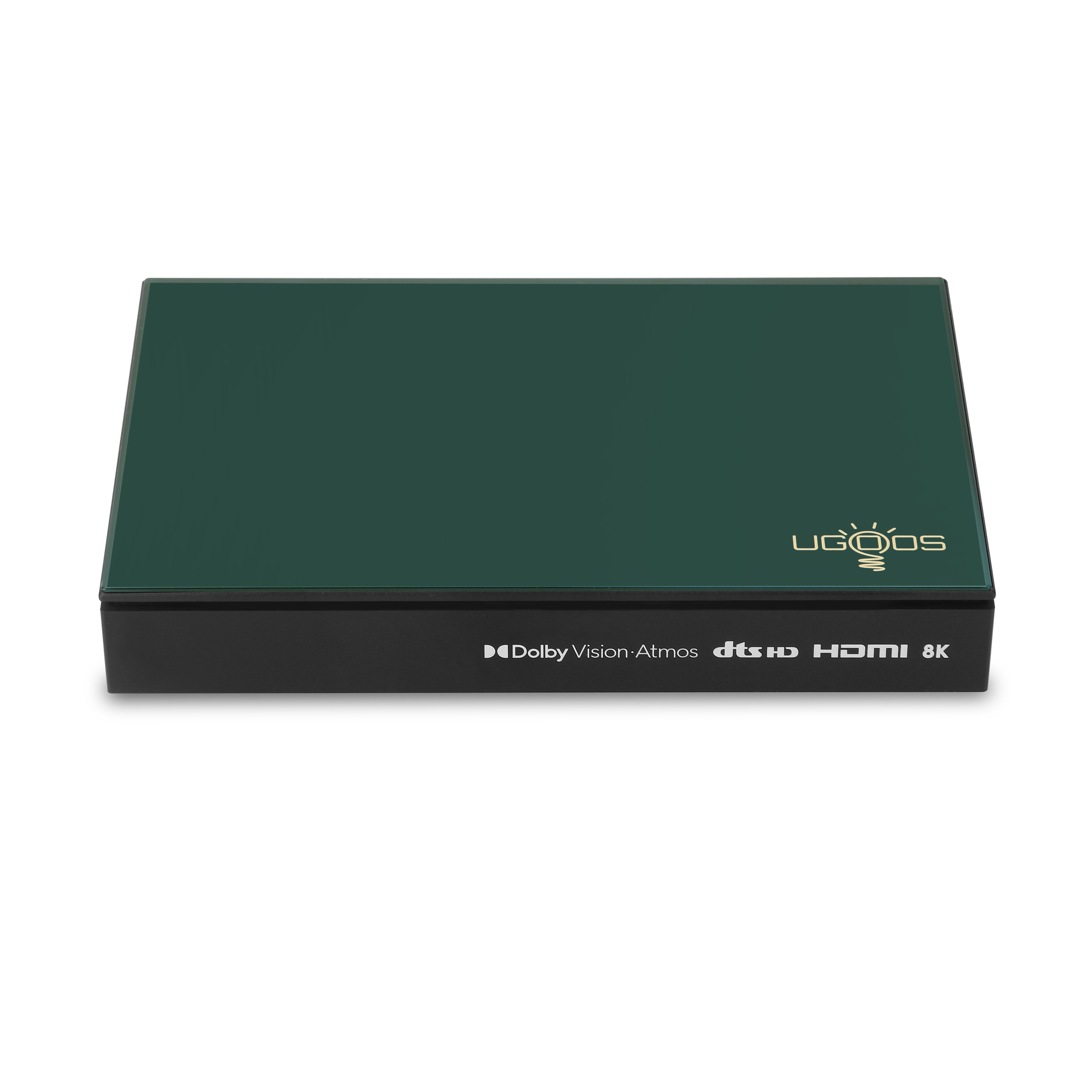

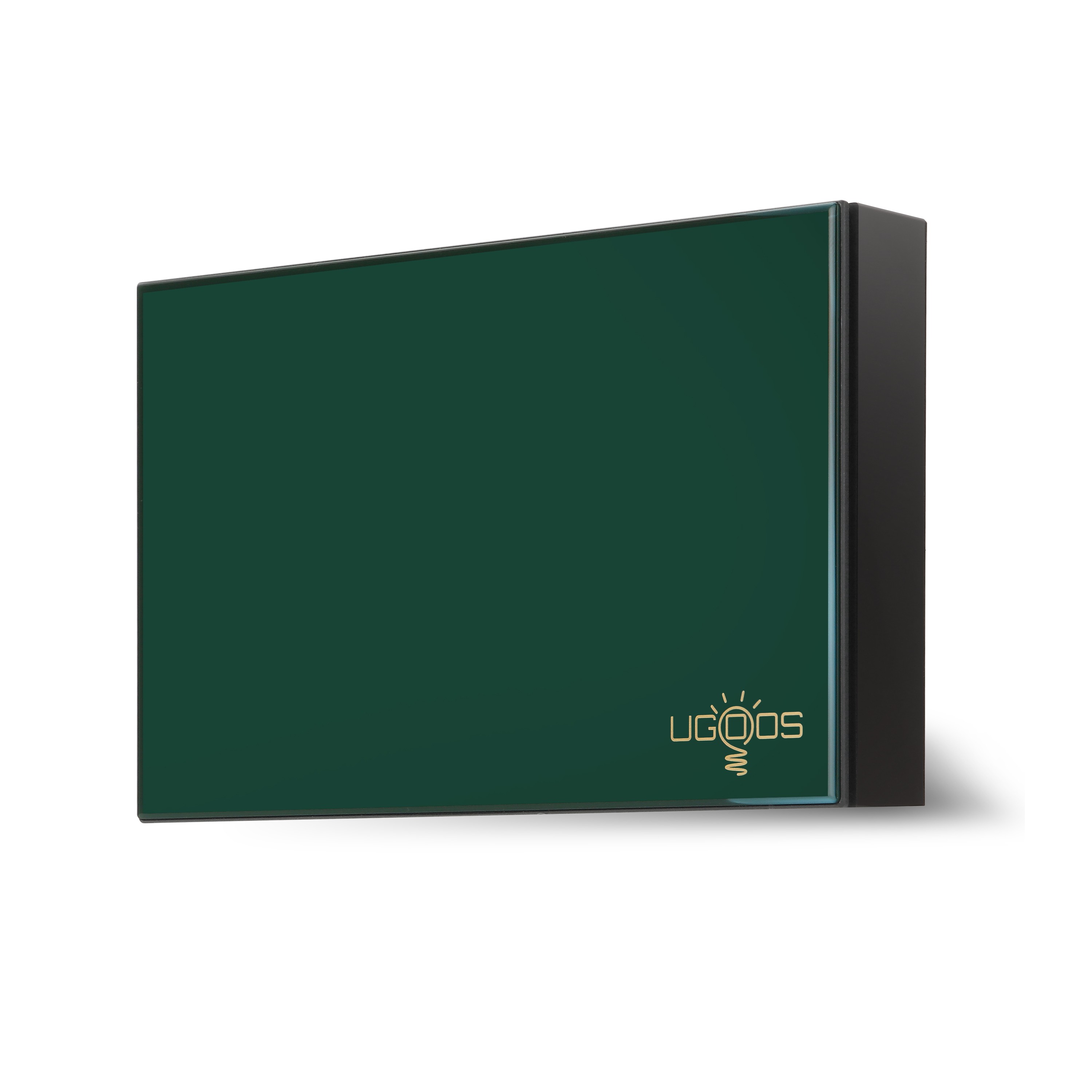

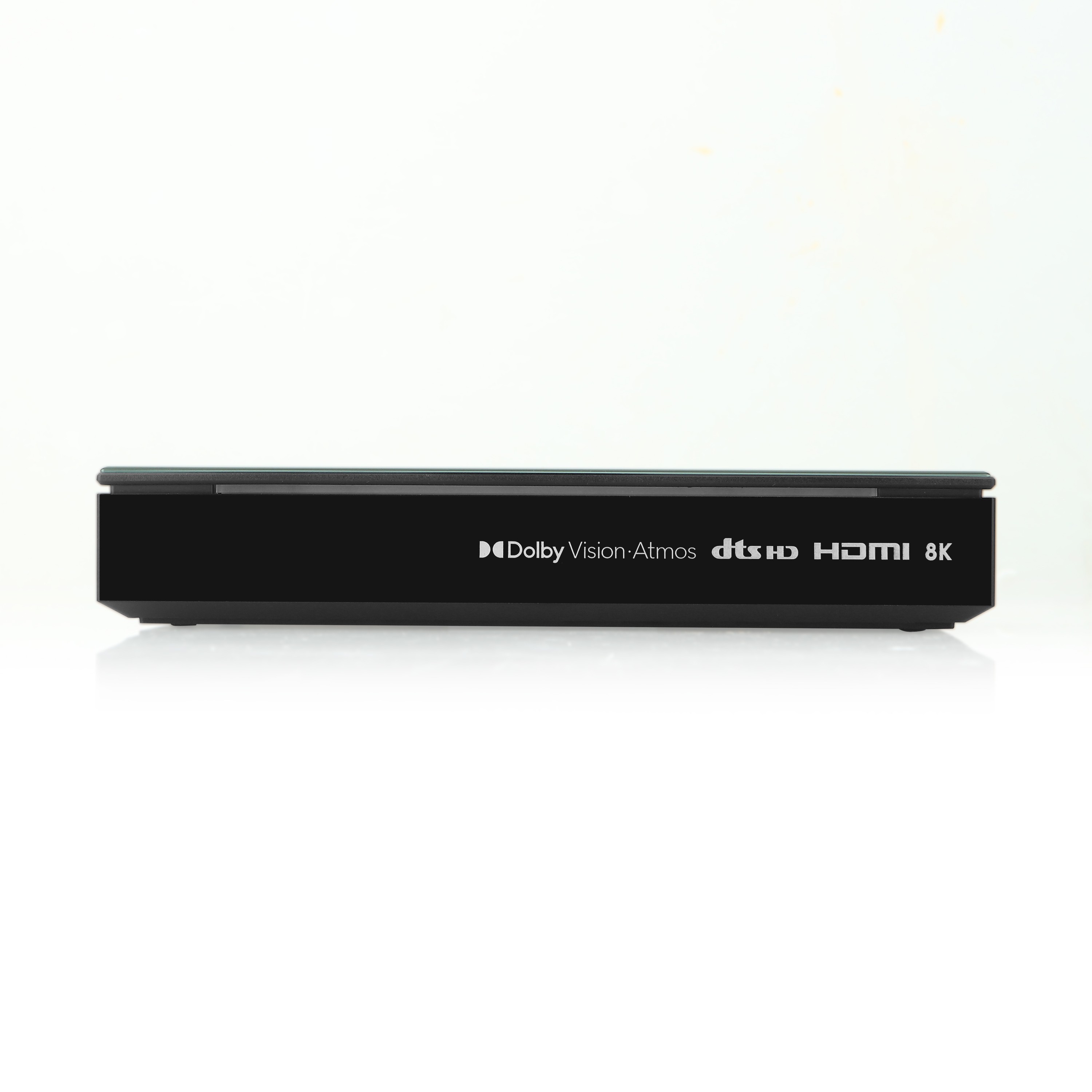

Ugoos SK1 Lite 4/64 GB

DESCRIPTION SPECIFICATION DOWNLOADS (4)

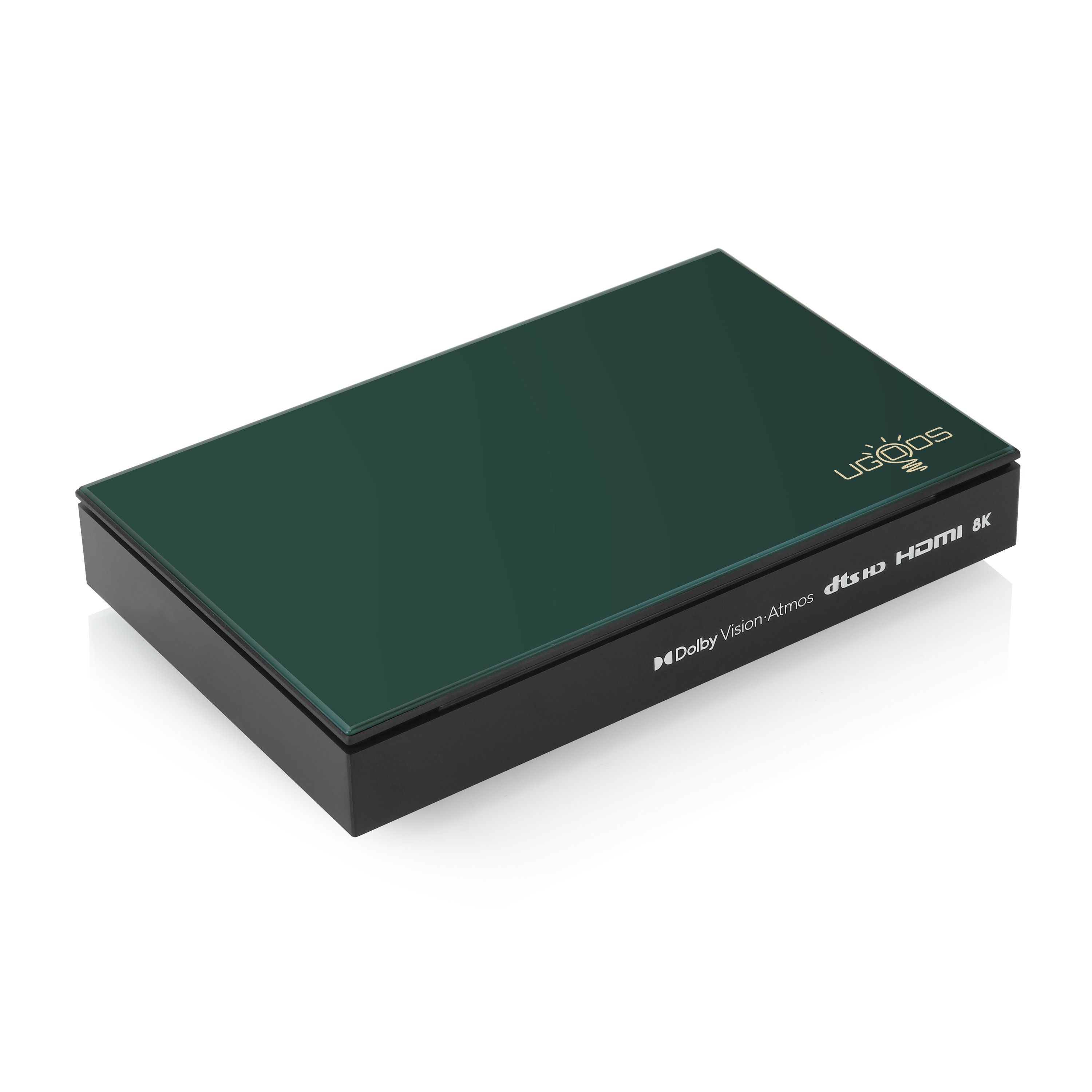

Ugoos SK1 Lite 4/64 GB

Like Ugoos SK1, but more efficient and with new color.

Same video decoding capabilities, both do certified 8K, Dolby Vision, and the same codec support.

Description:

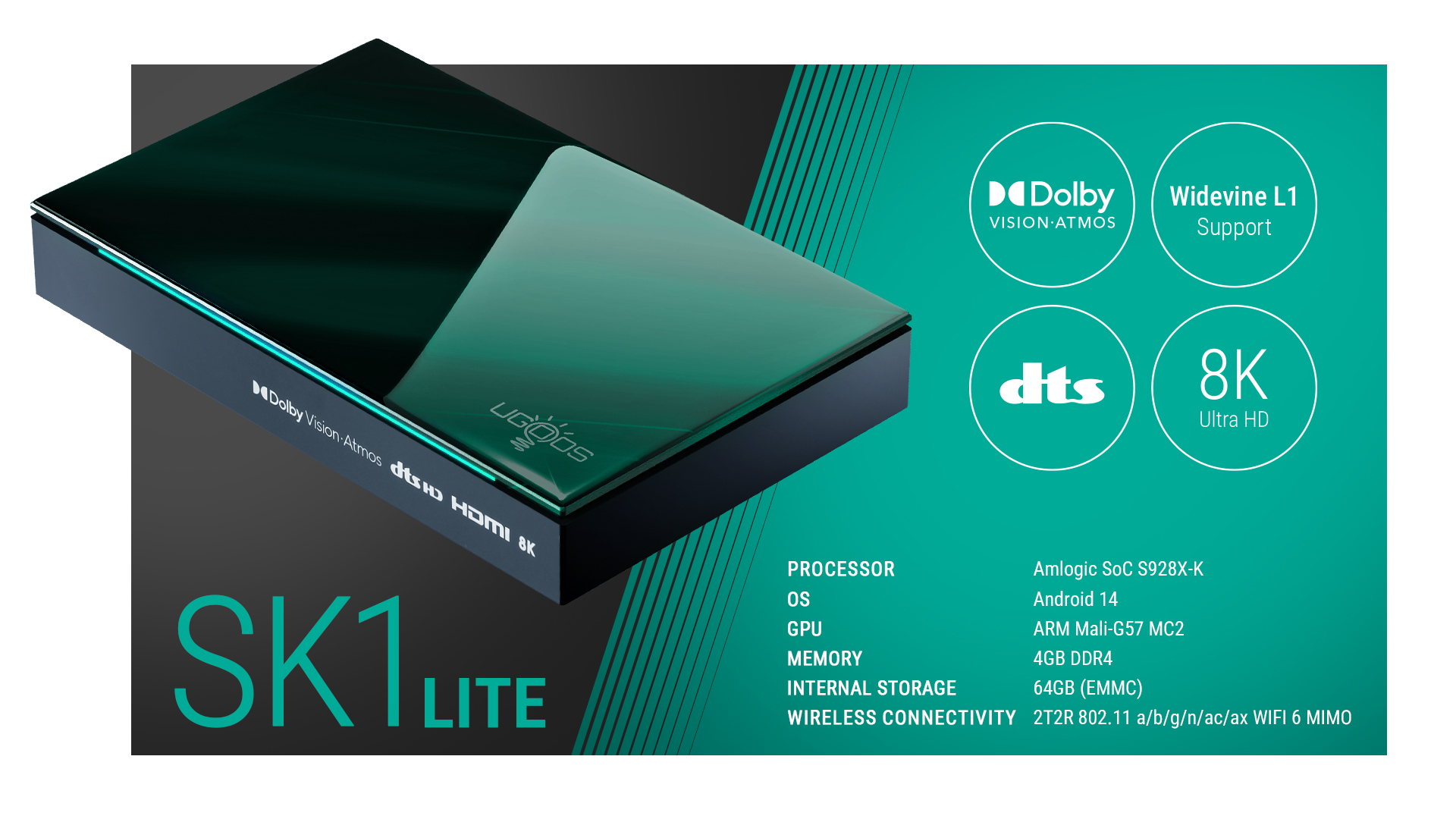

Hardware Spec:

Operation System	Android 14.0
Language	English, Chinese ...Multi-Language support

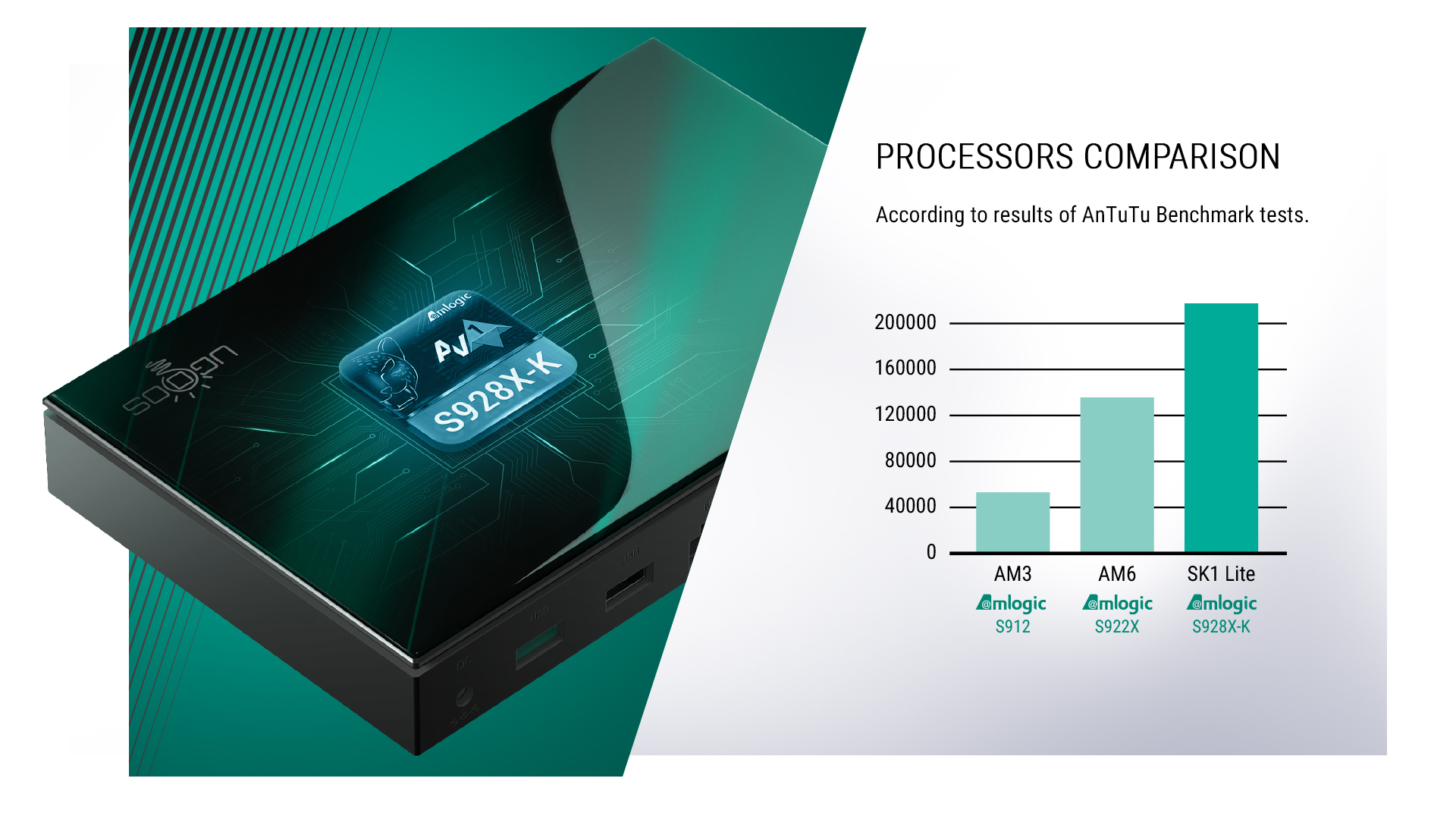

CPU	Amlogic S928X-K with 12nm 2.0G HZ，A big core ARM Cortex-A76 and Quad core ARM Cortex-A55 CPU
GPU	Mali G57 MC2
RAM	LPDDR4 4GB
Storage Capacity (Flash)	64GB （EMMC）
WIFI	Realtek 8852be(wifi6) 2.4G+5G complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 Access Points with MIMO standard up to 1200Mbps with dual stream in 802.11ax

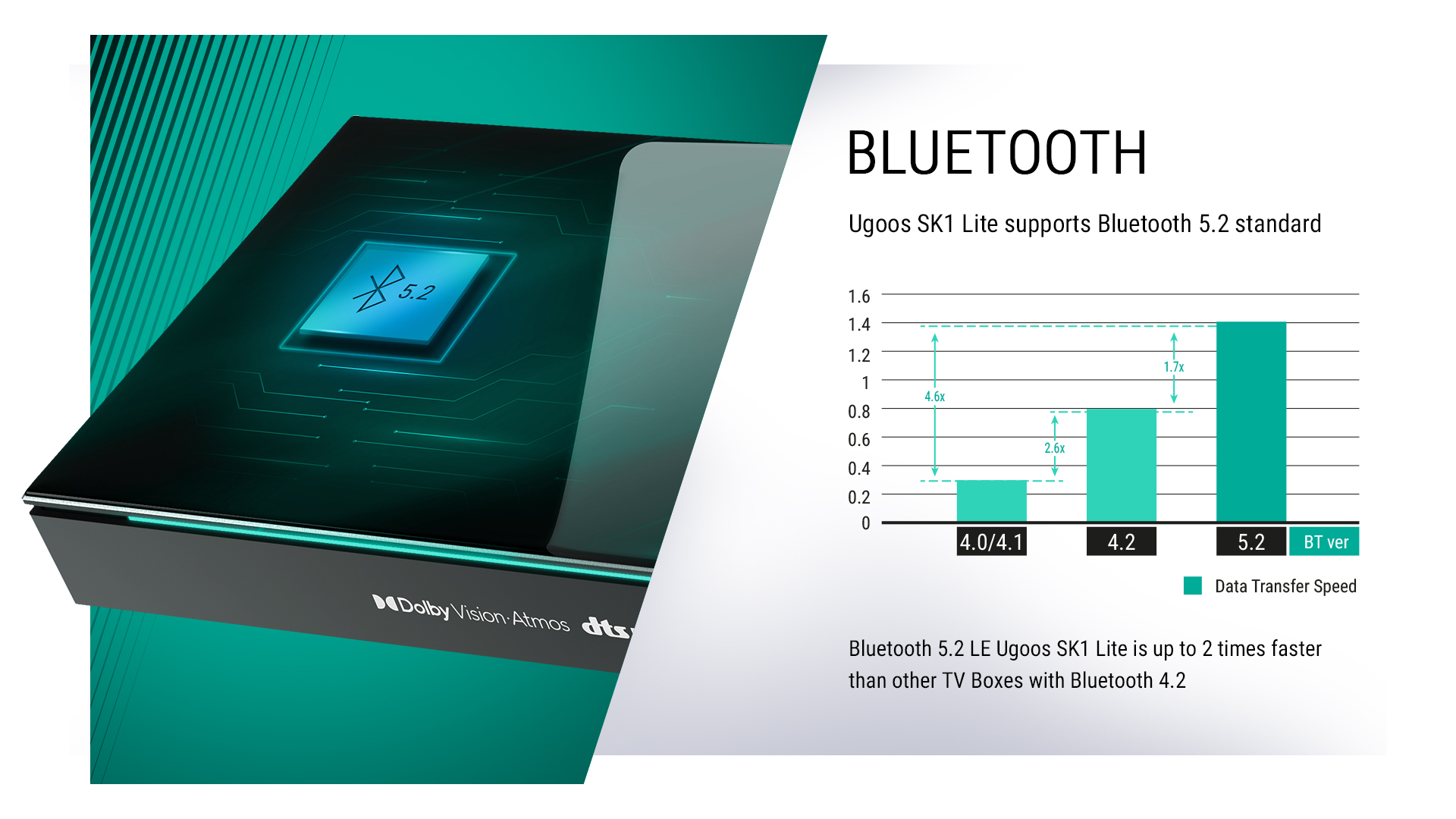

Bluetooth	Bluetooth 5.2 with LE technology
Power Supply	DC Power adapter 12V/2.0A
HDR	HDR10, HDR10+, HLG
Licenses	Widewine L1 Support, Dolby Audio, Dolby Vision, DTS Audio

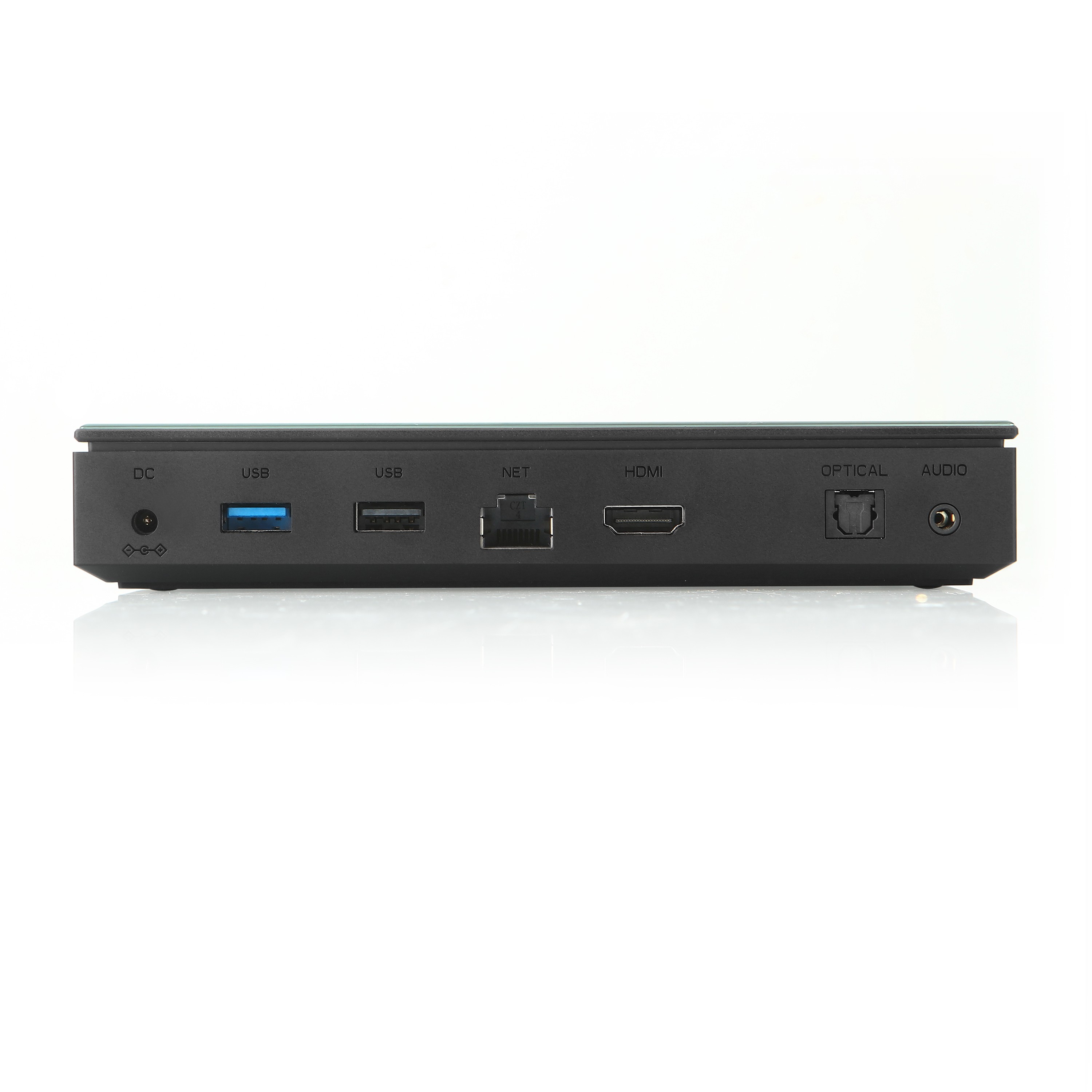

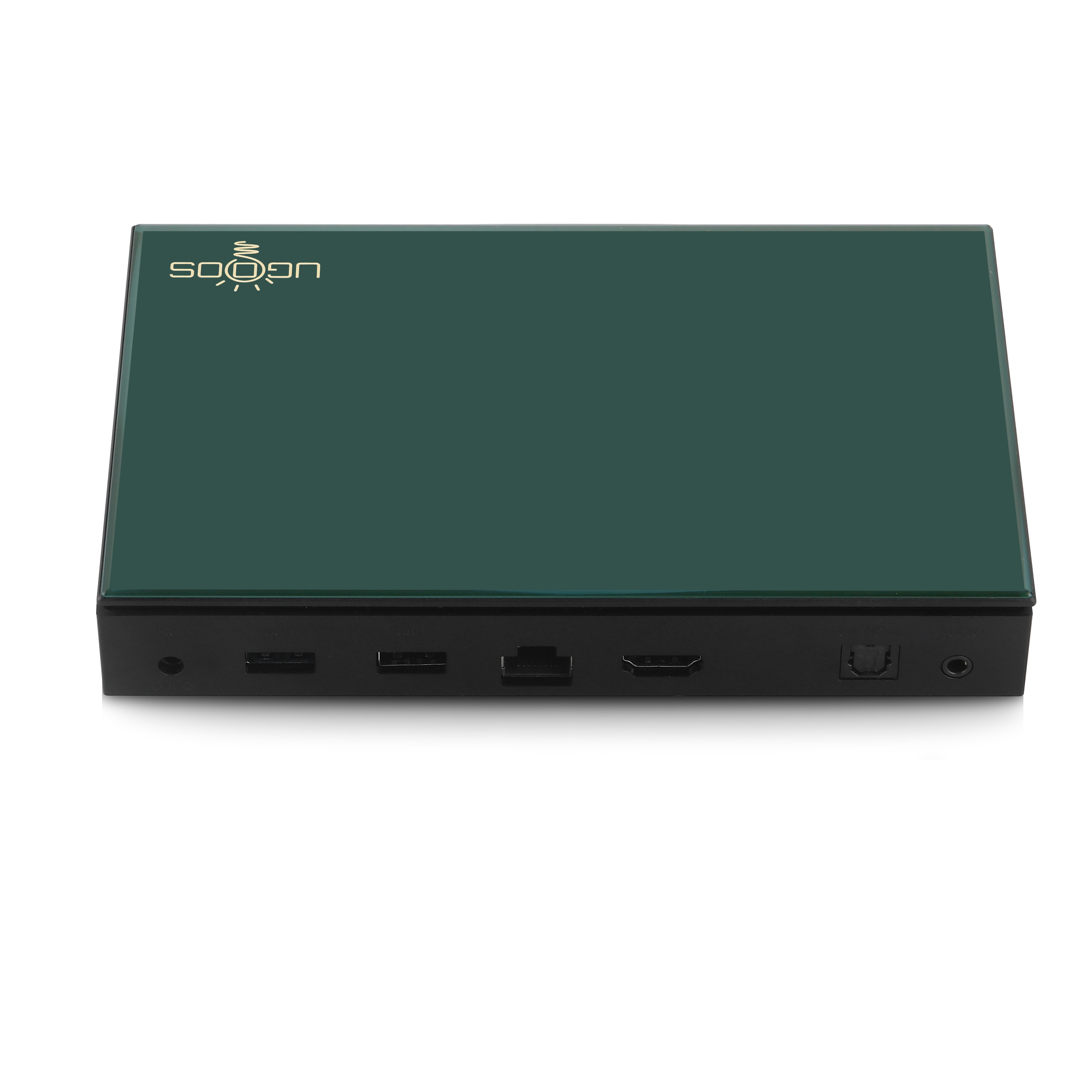

Interfaces:
HDMI Output	HDMI 2.1a Type-A 8Kx4K max resolution
USB Port	1 USB 3.0 OTG & 1USB 2.0
Optical Output	1*SPDIF
Audio Output	3.5mm R/L Audio output
Led Work Light	Support
Network	1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface)
Media Parameters:
Audio Container	Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS Truvolume, Dolby Audio Optional, DTS Optional and programmable with 7.1/5.1 down-mixing
Audio Out	Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC	− AV1 MP-10@L6.1 up to 8Kx4K@60fps − VP9 Profile-2@6.1 up to 8Kx4K@60fps − H.265 HEVC MP-10@L6.1 up to 8Kx4K@60fps − AVS3 Phase 1 up to 8Kx4K@60fps − AVS2-P2 Profile up to 8Kx4K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension	Support Google Play & APK install
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol

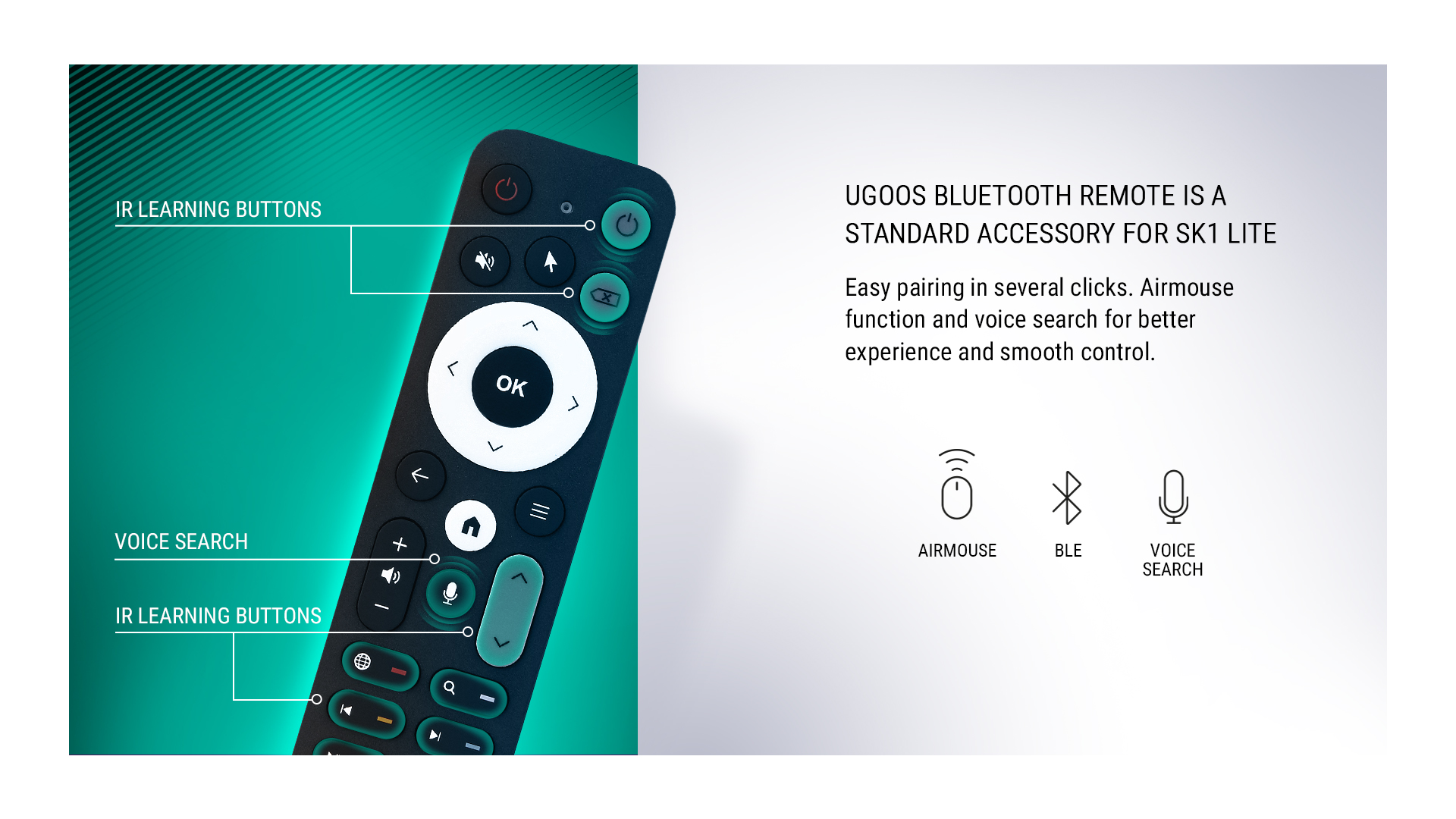

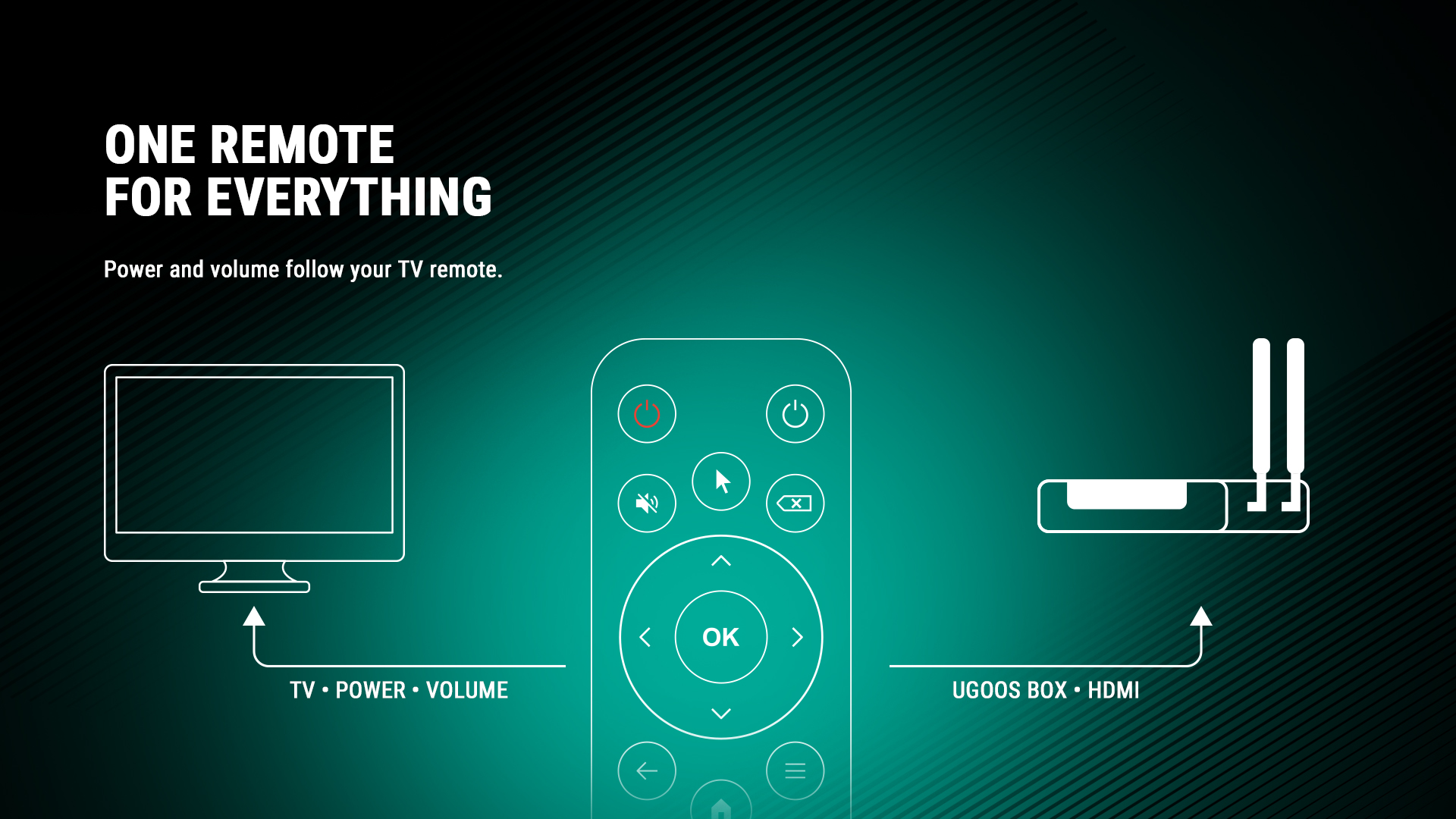

Remote Control	UR-02 remote with Voice+Gyro
Other Parameters:
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC

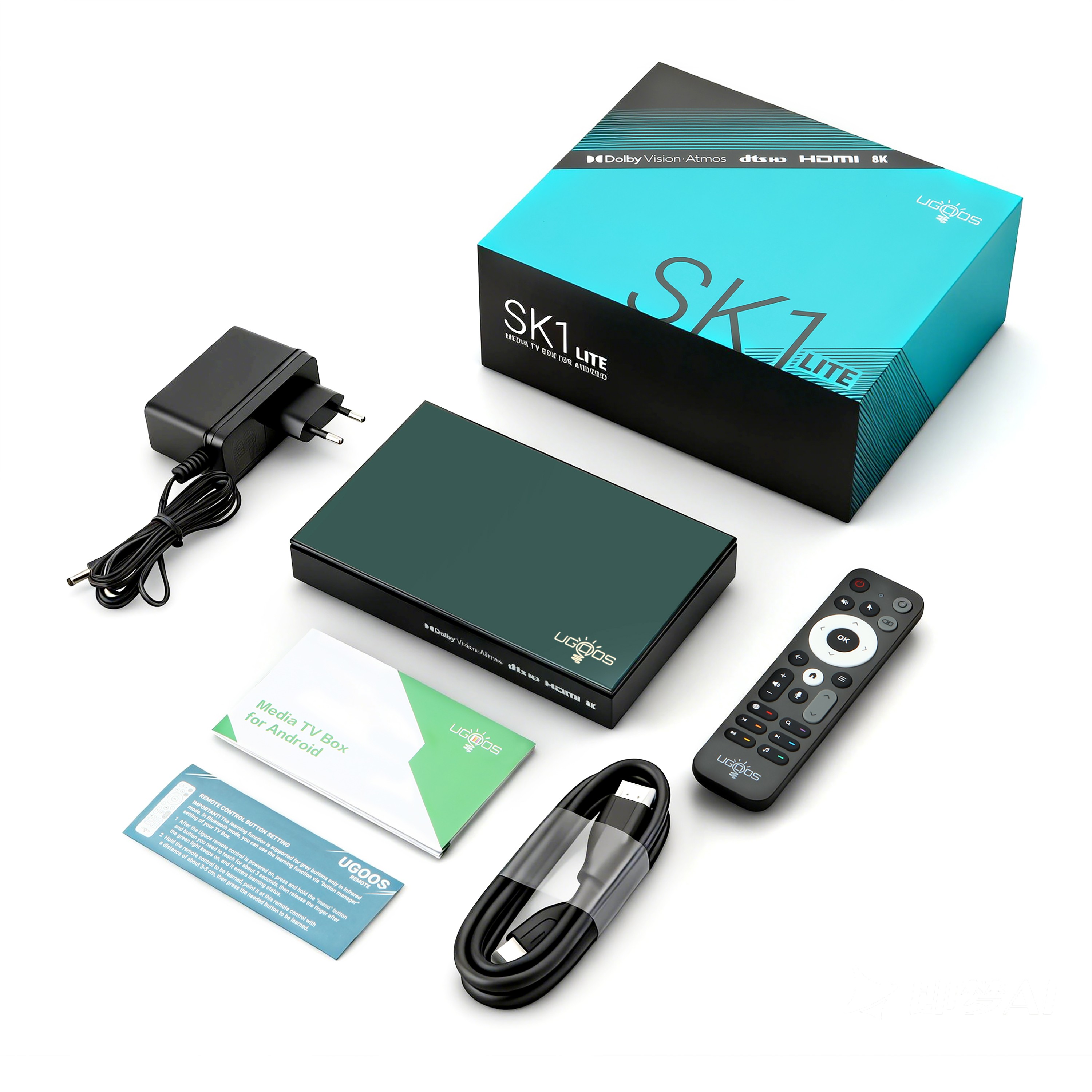

Package:
Dimensions	16.9X10.8x3 CM
Net Weight	1030g
Gift Box Size	20.5x16.7x7.9 CM

Downloads:

pdf

Ugoos AM8/AM8Pro/SK1/SK4 Reflashing Instruction

The instruction explains how to use software and firmware file to reflash your Ugoos AM8/AM8Pro/SK1

2026-08-07 11:10:57

Download 500 KB

Android 14 Ugoos SK1/SK1 Lite Firmware v. 2.0.9

1. Fixed some system crashes
2. Fixed abnormal HDR colors
3. Some AI scaling fixes
4. Focus fixes in TvSettings, Launcher3
5. Magisk setting fixed
6. Added hide panels button to navigation bar, added swipes setting for showing bars
7. Some other system changes

2026-05-11 10:52:09

Download 1.19Gb

Android 11 Ugoos SK1/SK1 Lite Firmware v. 1.4.1

1. New ddr types supported

2026-04-08 15:17:03

Download 770Mb

Android 14 Ugoos SK1/SK1 Lite Firmware v. 2.0.8

1. Rework of network shares (CIFS, NFS)
2. Added ability to disable Play Protect
3. Added NTP server setting
4. Fixed some audio passthrough issues
5. Fixed PCM format setting in manual surround mode
6. Fixed some system crashes
7. Fixed support of some TVs
8. Fixed file access on external storages
9. Fixed work of some applications after connecting keyboard
10. Fixed notification preference in TvSettings
11. Fixed focus visibility in Launcher3
12. Updated Magisk
13. Many other system changes

2026-04-08 15:07:46

Download 1.08Gb
