Ugoos AM8

DESCRIPTION SPECIFICATION DOWNLOADS (7)

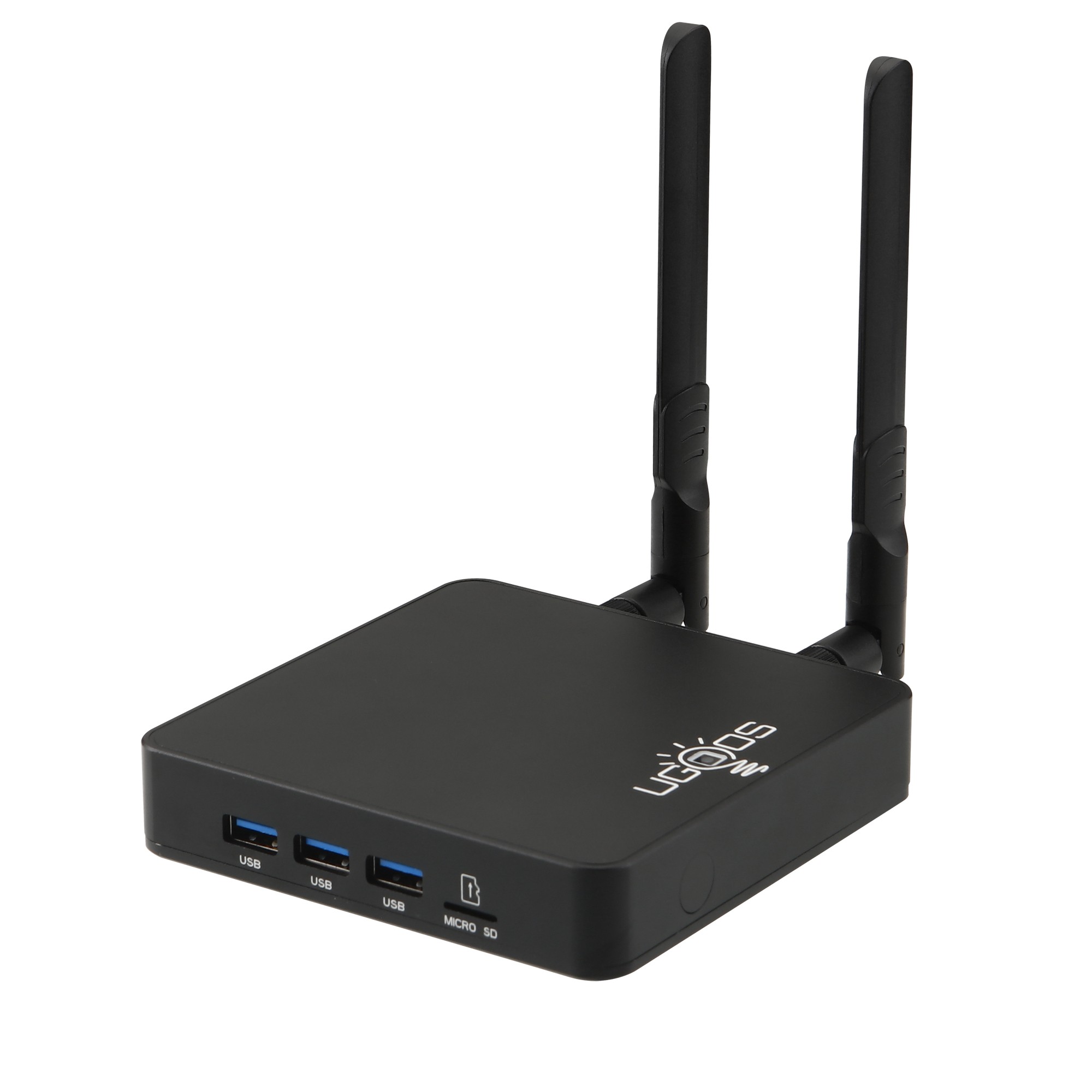

Ugoos AM8

Ugoos Brand AM8 with 4Gb LPDDR 4 & 32Gb Storage. Android 11.0 Amlogic S928X-J Smart TV Box is available for order.

Description:

Hardware Spec:

Operation System	Android 11.0
Language	English, Chinese ...Multi-Language support
CPU	Amlogic S928X-J 12nm 2.016G HZA with ARM Cortex-A76 and Quad-core ARM Cortex-A55 CPU
GPU	Mali G57 MC2
RAM	LPDDR4 4GB
Storage Capacity (Flash)	32GB （EMMC）
WIFI	AP6276P(WIFI6) 2.4G+5G+6G the wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 Access Points with MIMO
Bluetooth	Bluetooth 5.3 with LE technology
The Extended Storage	TF Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply	TYPE-C 12V/1.67A
HDR	Support

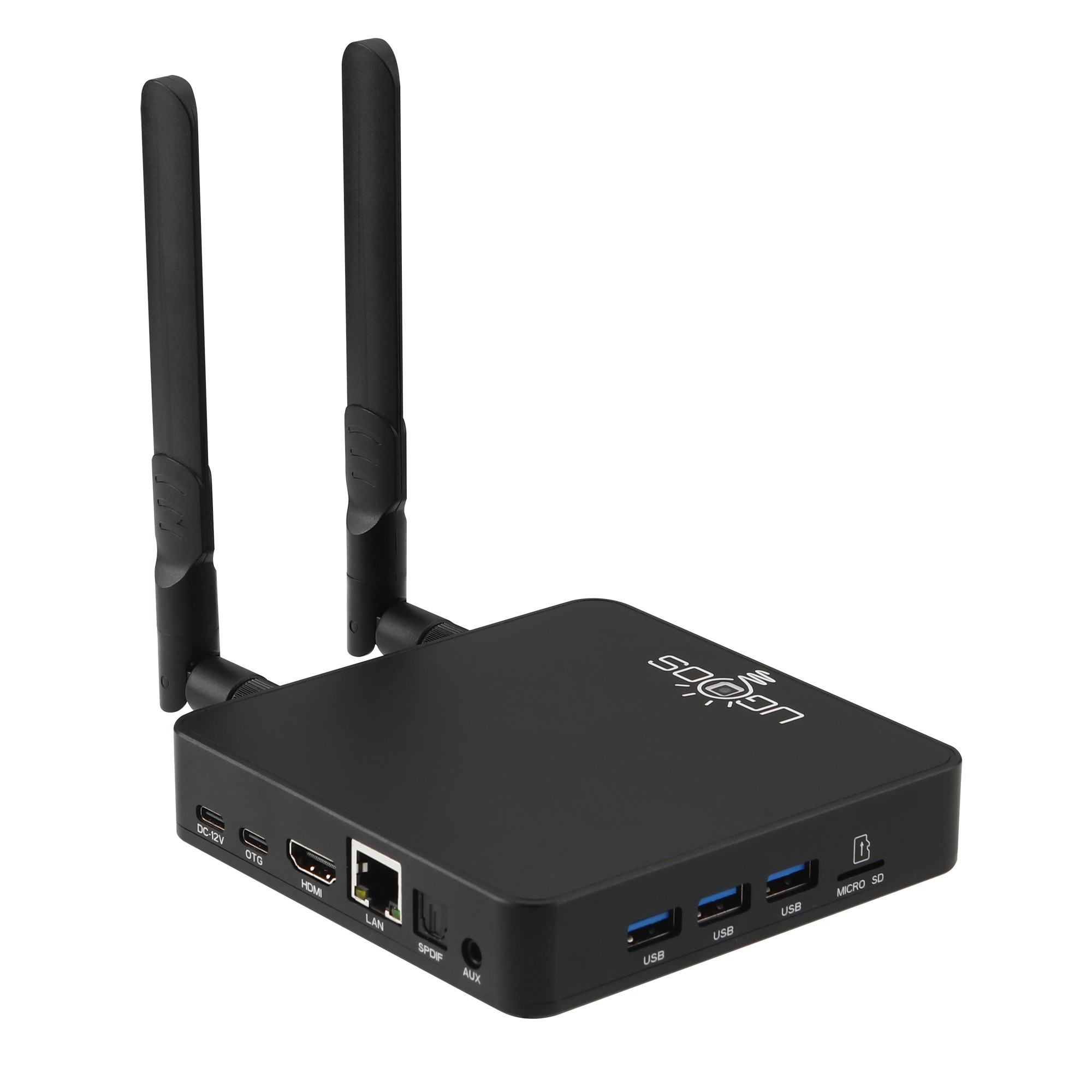

Interfaces:
HDMI Output	HDMI 2.1a Type-A 8Kx4K max resolution
USB Port	USB A HOST 3.03 USB TYPE-C OTG 2.01
Optical Output	1*SPDIF
Led Work Light	Support
Network	1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface)
Media Parameter:
Audio Container	Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS Truvolume, Dolby Audio Optional, DTS Optional and programmable with 7.1/5.1 down-mixing
Audio Out	Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC	− AV1 MP-10@L6.1 up to 8Kx4K@60fps − VP9 Profile-2@6.1 up to 8Kx4K@60fps − H.265 HEVC MP-10@L6.1 up to 8Kx4K@60fps − AVS3 Phase 1 up to 8Kx4K@60fps − AVS2-P2 Profile up to 8Kx4K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension	Support Google Play & APK install
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol
Remote Control	BT remote with Voice+Gyro
Other Parameters:
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC
Package:
Dimensions	11.5X11.5x2.4 CM
Net Weight	300g
Gift Box Size	19.2x19.2x7 CM

Downloads:

Android 11 Ugoos AM8/AM8 Pro Firmware v. 1.4.0

1. Improved Samba server stability
2. Added ability to take bug reports from settings (About page), quick settings on the top panel and as a menu button option
3. Added long press event for Home button
4. Added ATV applications support to Launcher3
5. Added ATV applications to select in automatic frame rate feature
6. Added network and VPN names to hardware monitor
7. Added UI mode setting for applications
8. Added ability to disable media file scanning for CIFS and NFS clients
9. Fixed issues with some applications
10. Some other system changes

2024-11-08 09:03:33

Download 776.4Mb

Android 11 Ugoos AM8/AM8 Pro Firmware v. 1.3.8

1. Added some expert video picture settings: AI, super scaling, noise reduction
2. Fixed manual audio format settings
3. Fixed some issues with high-resolution audio playback
4. Fixed audio mode information for hardware monitor
5. Allowed E-AC3 passthrough for S/PDIF
6. Fixed HLG for VP9
7. Hide AOSP keyboard when pressing DPAD_UP button
8. Fixed wake-up issue with BT remote
9. Fixed connection loss issue with UR02
10. Fixed color mode error for non-DV content (SK1)
11. Some other system changes

2024-08-29 08:48:43

Download 738.7Mb

pdf

Ugoos AM8/AM8Pro/SK1 Reflashing Instruction

The instruction explains how to use software and firmware file to reflash your Ugoos AM8/AM8Pro/SK1

2024-07-31 07:05:49

Download 500 KB

Android 11 firmware V. 1.3.5 for Ugoos AM8 Series

1. Added Dolby Vision mode setting
2. Dolby Vision enabled for 8K resolutions and 100-120Hz display modes
3. Improved fix of black screen issue after HDR and DV playback
4. Added setting to disable volume regulator in applications
5. Added split screen function to recent applications window
6. Fixed focus issues in some applications
7. Added brightness setting for power indicator
8. Automatic detection of default density based on framebuffer size
9. Fixed reboots on some VP9 streams
10. Some video codec updates
11. Some system AFR function fixes
12. Magisk updated to version 27.0
13. Some other system changes

2024-03-27 09:58:36

Download 718.3Mb

Android 11 firmware V. 1.3.2 for Ugoos AM8

1. Fixed boot when power is applied
2. Fixed some Bluetooth issues
3. Fixed boot problem with 2160p 120Hz display mode
4. Allowed transfer of all file types via Bluetooth
5. Added frequency switching policy for automatic frame rate function
6. Added video picture settings
7. Added ability to open video picture settings using Menu button
8. Magisk updated to version 26.3
9. UI work optimized
10. Some other changes

2023-11-03 05:52:02

Download 724.3Mb

pdf

Ukrainian user manual
