X5m Pro

DESCRIPTION SPECIFICATION DOWNLOADS (0)

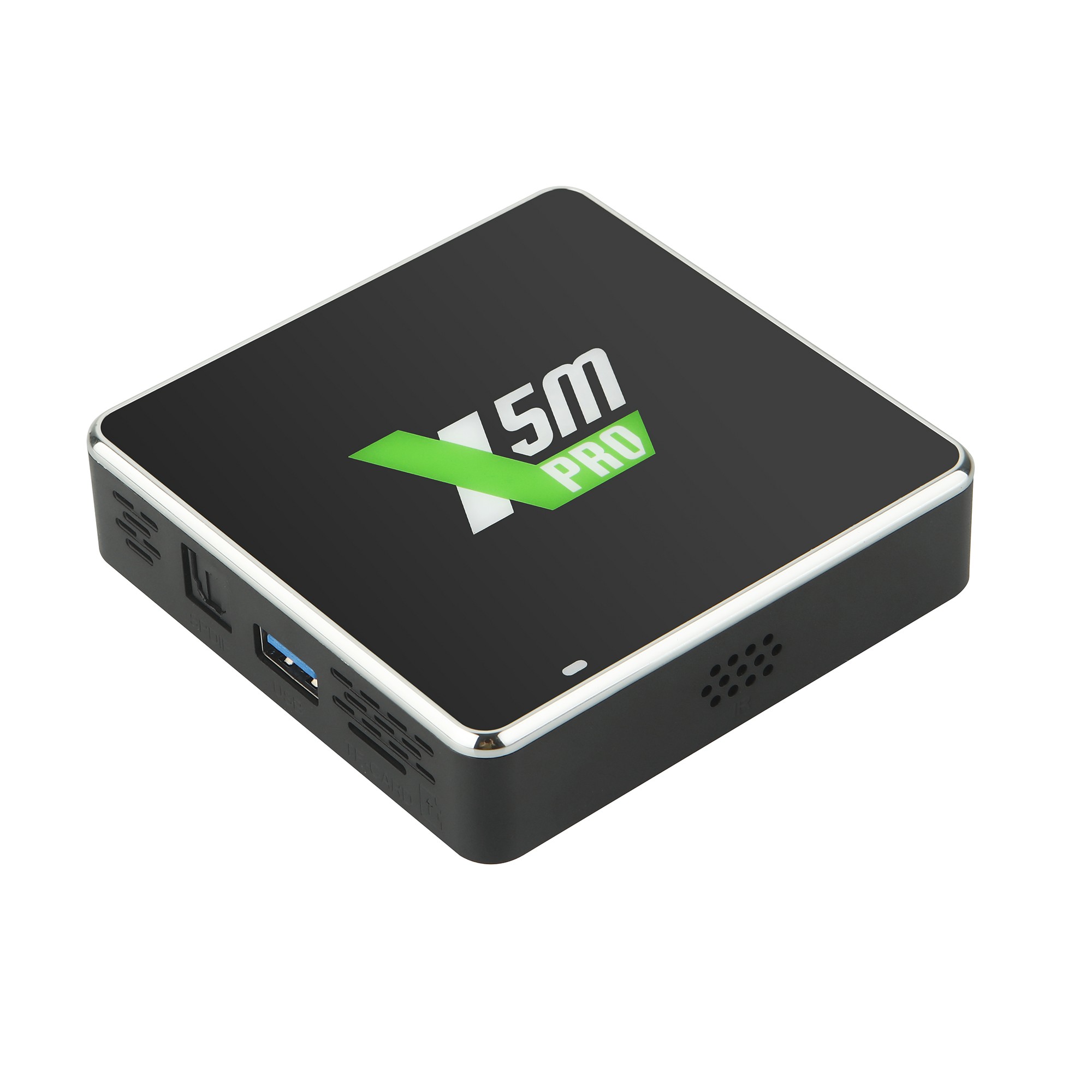

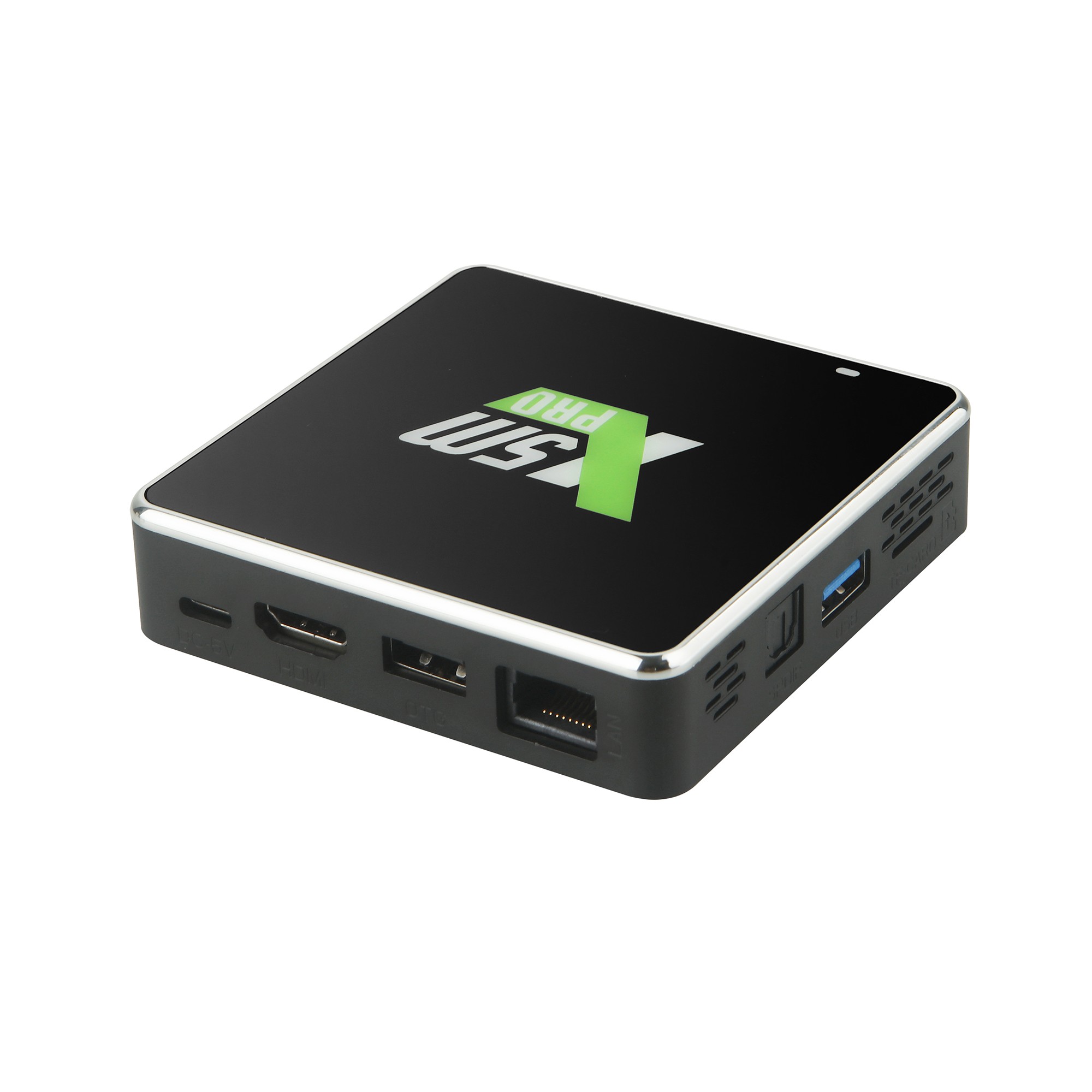

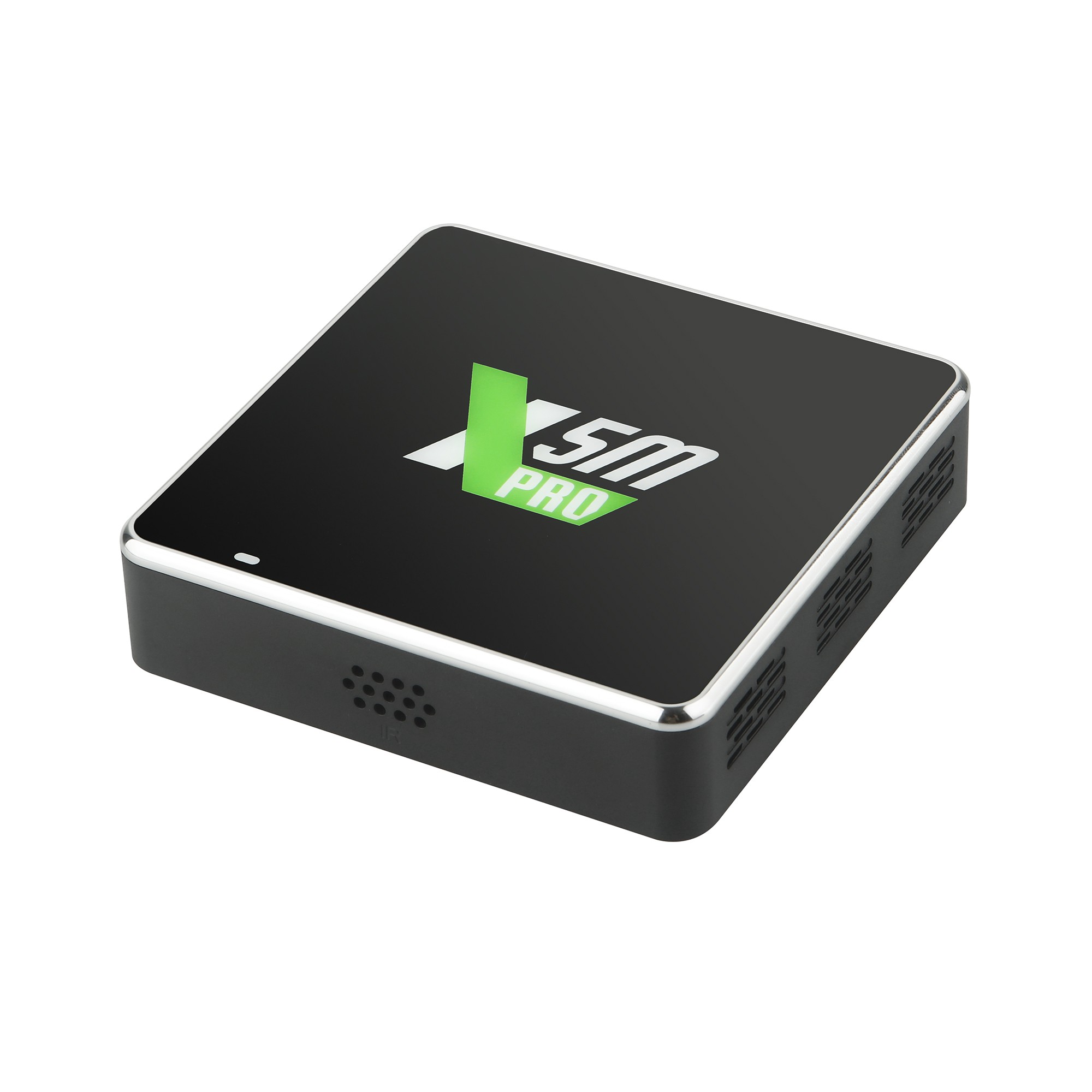

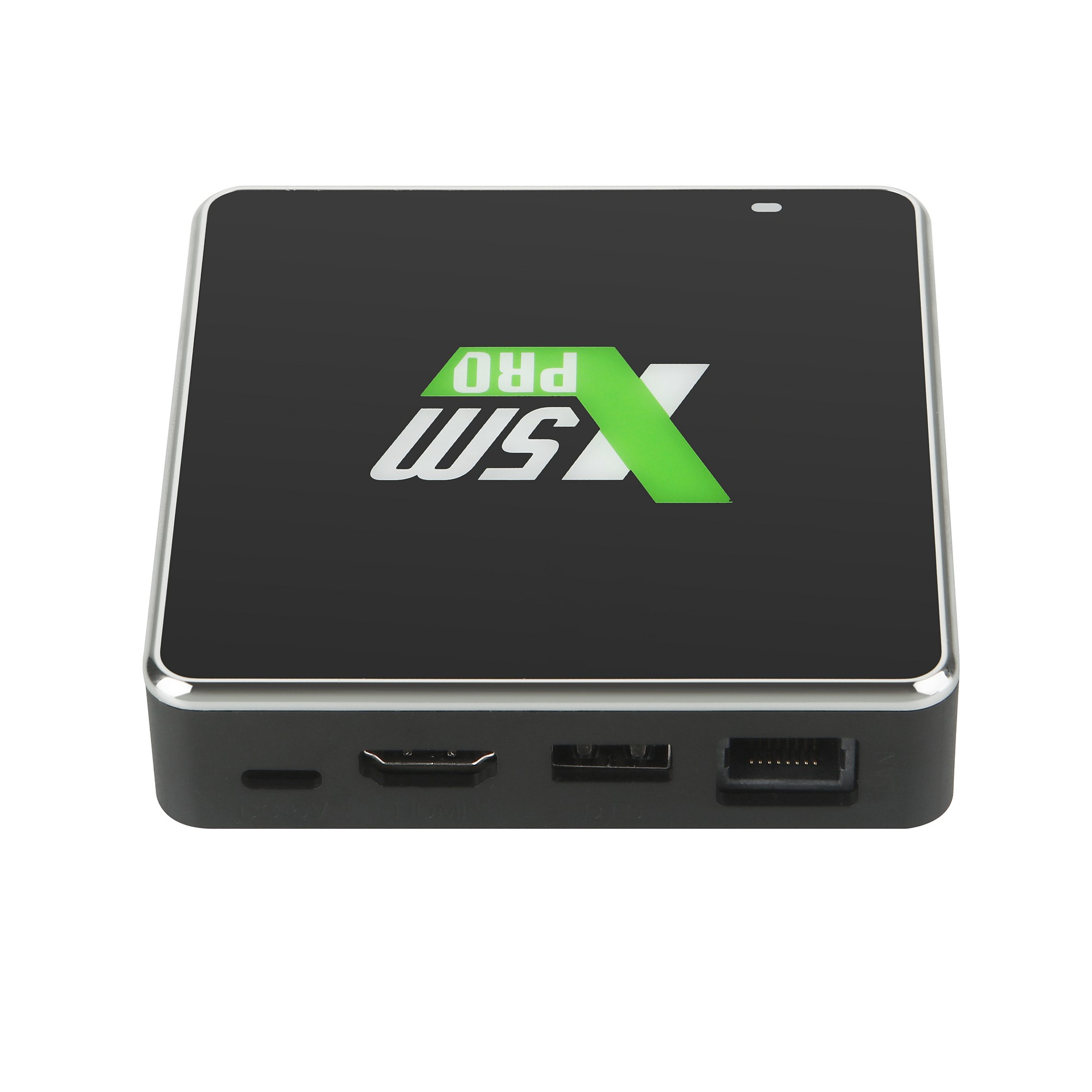

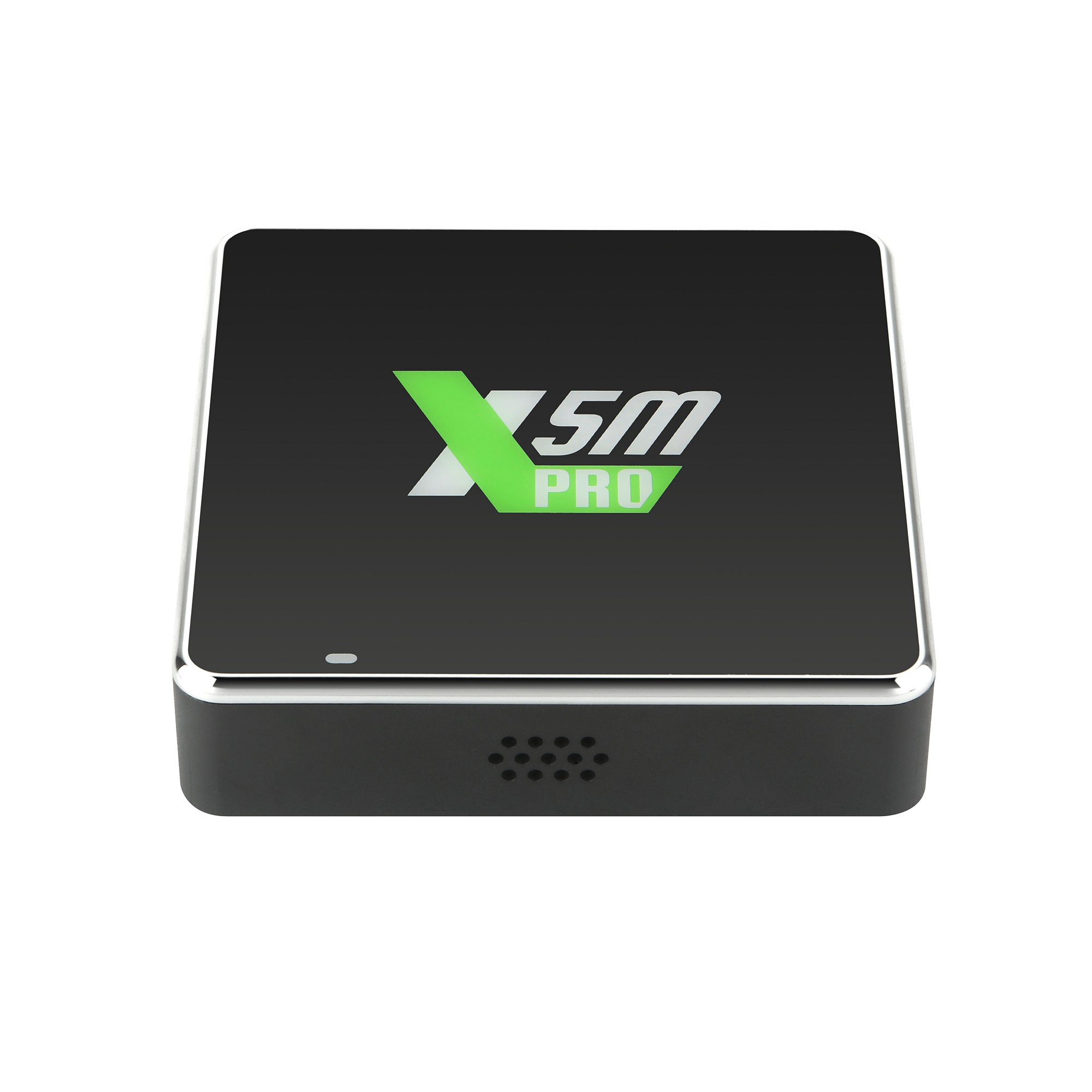

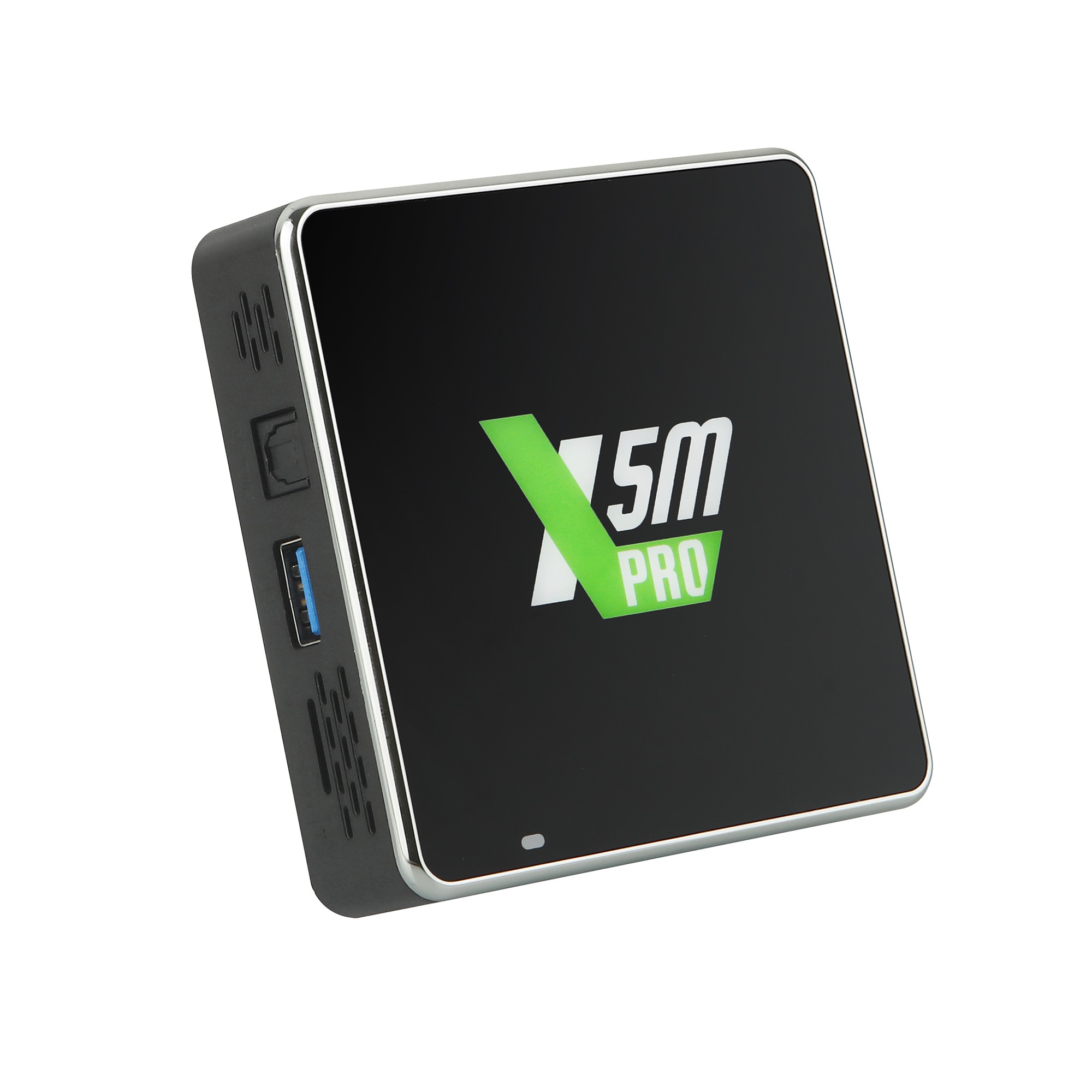

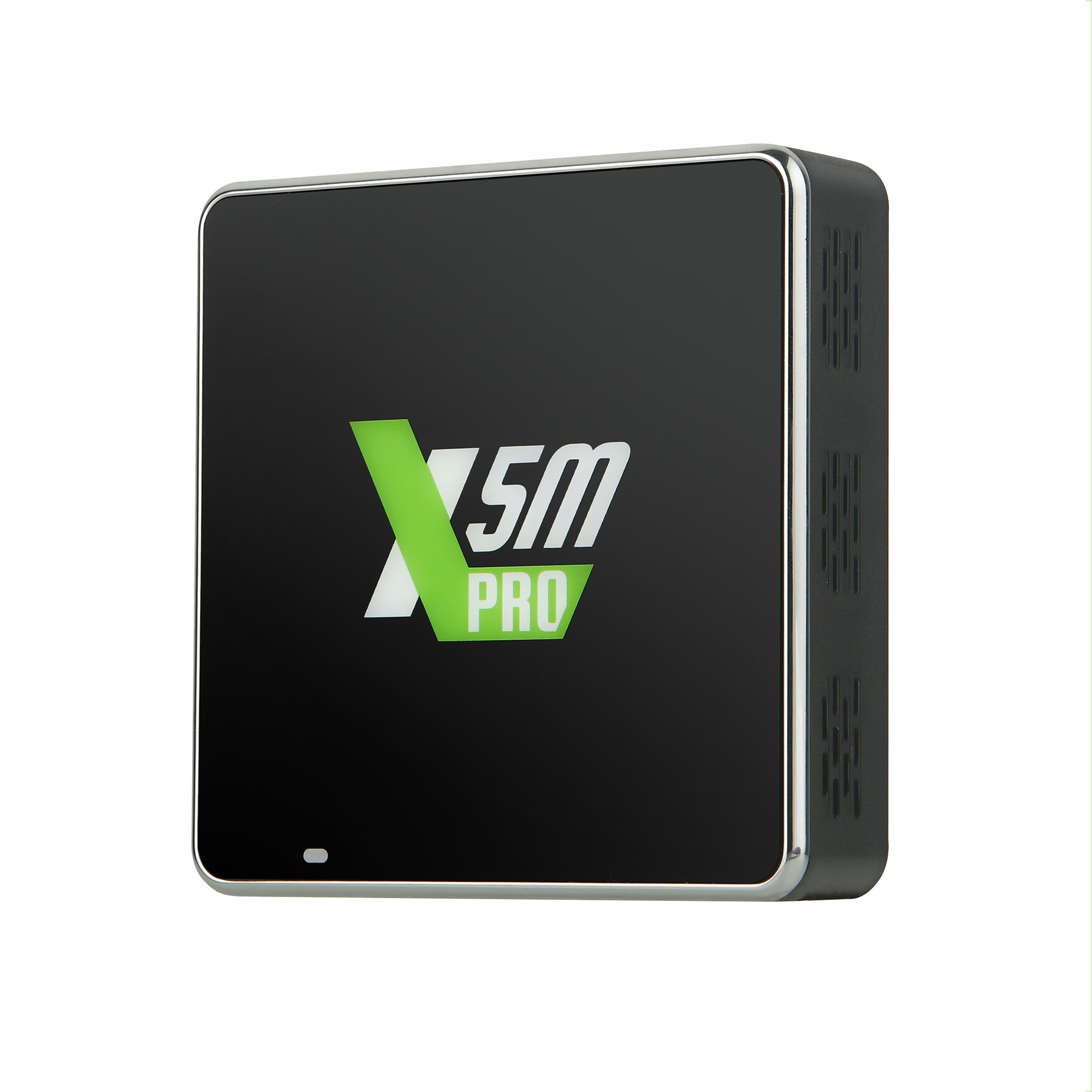

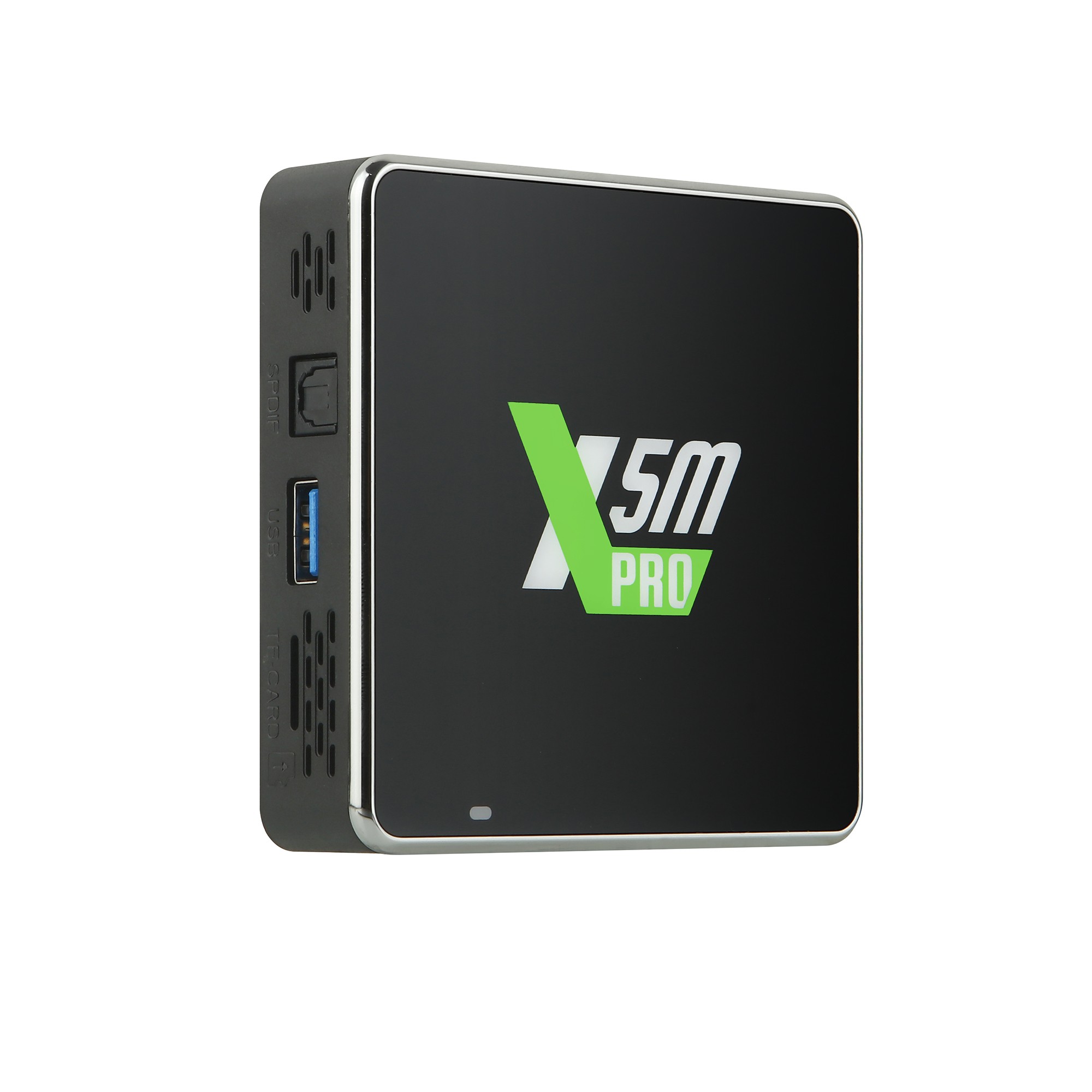

X5m Pro

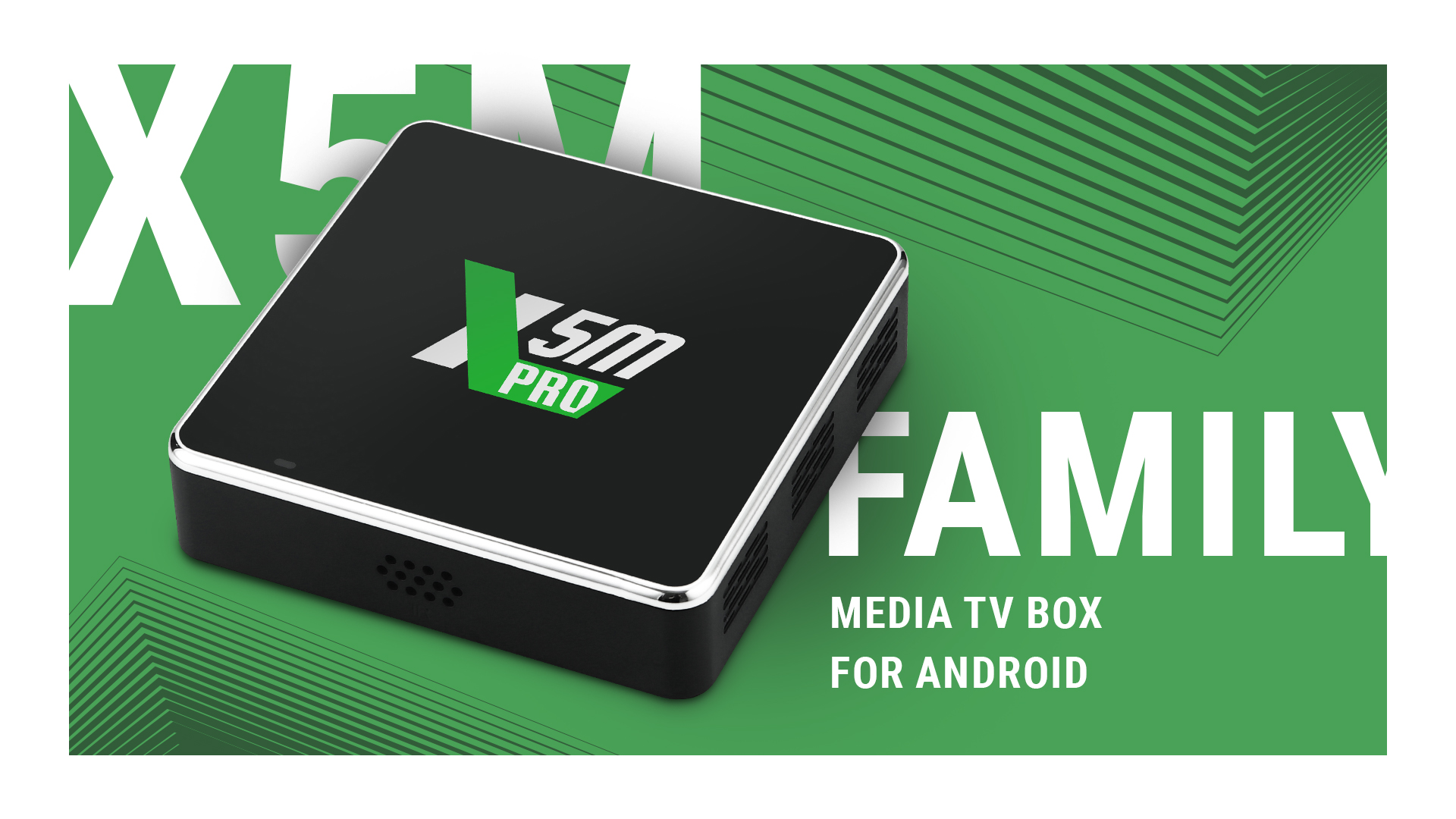

The X5m Pro represent the Fifth Generation of Ugoos X series!

Amlogic S905x5m based device combines all advantages of previous generations and brings new solutions and enhanced technologies.

Description:

Hardware Spec:

Operation System	Android 14.0
Language	Multi-Language support

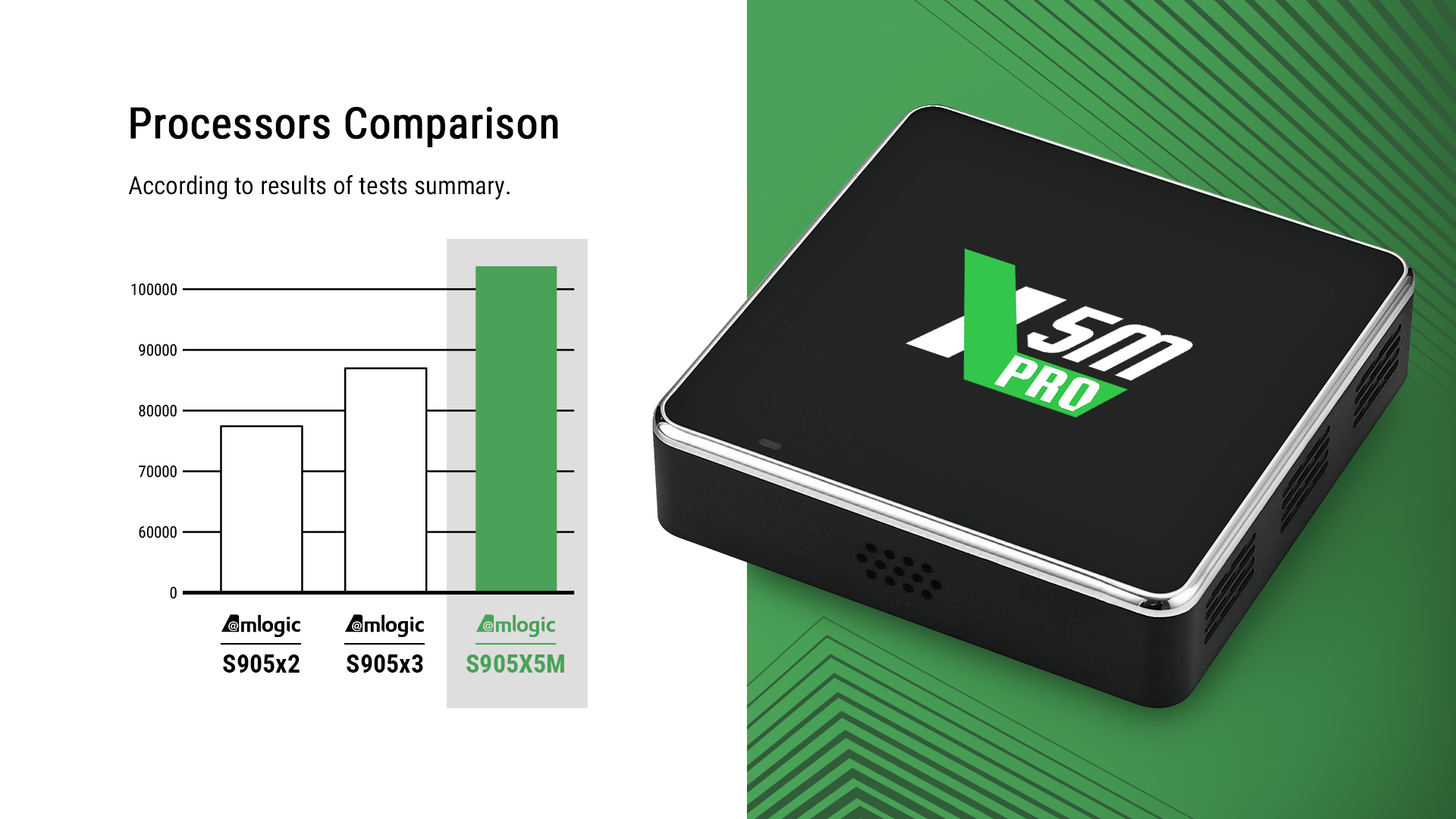

CPU	Amlogic S905x5m ARM Cortex-A55 CPU
GPU	Mali G310 V2
RAM	LPDDR4 4GB
Storage Capacity (Flash)	32GB （EMMC）
WIFI	2.4G/5G 802.11a/b/g/n/ac/ax 2T2R

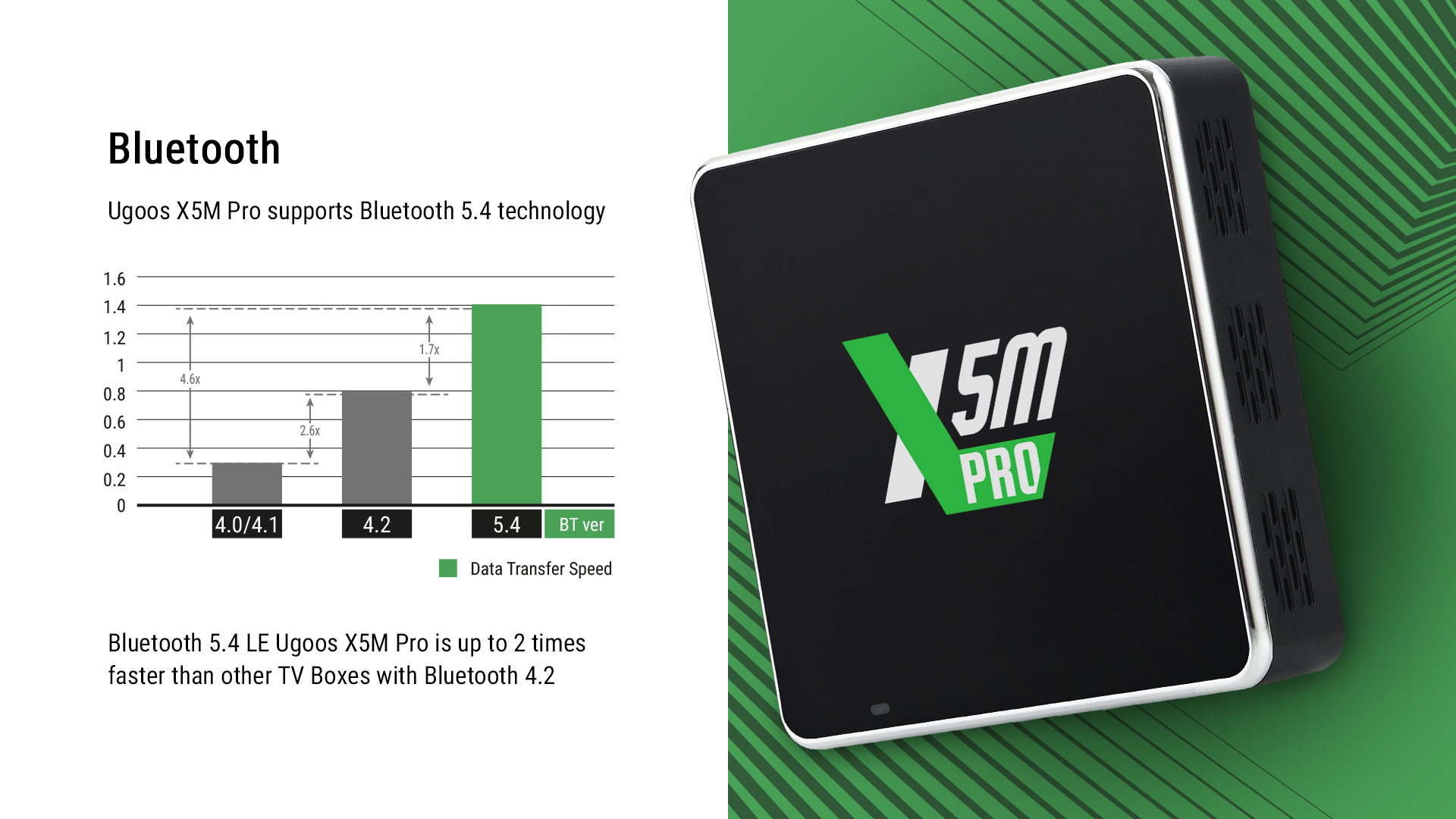

Bluetooth	Bluetooth 5.4 Module
The Extended Storage	TF Card (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply	TYPE-C 5V/2.5A
HDR	Support
CEC	Support
RTC	Support

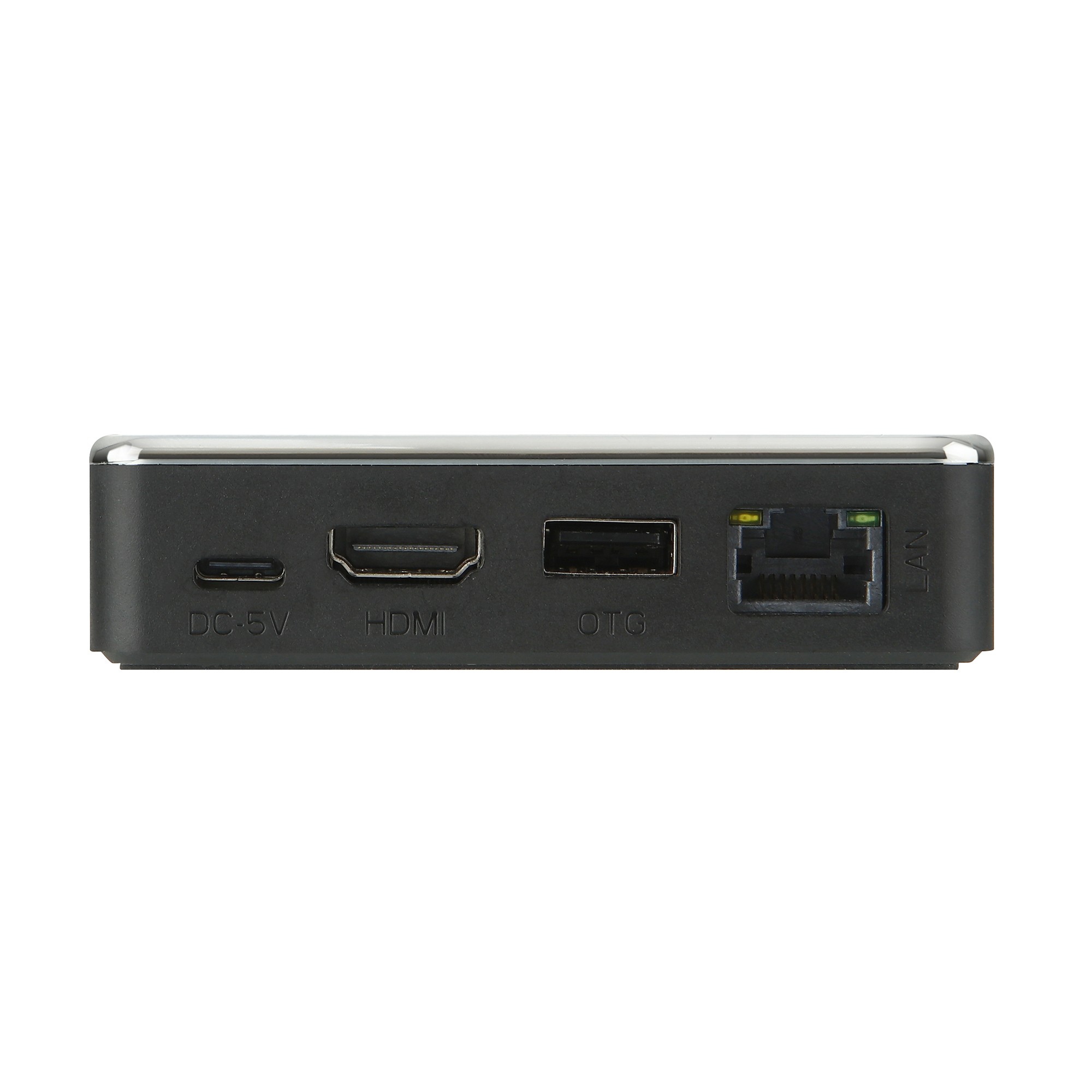

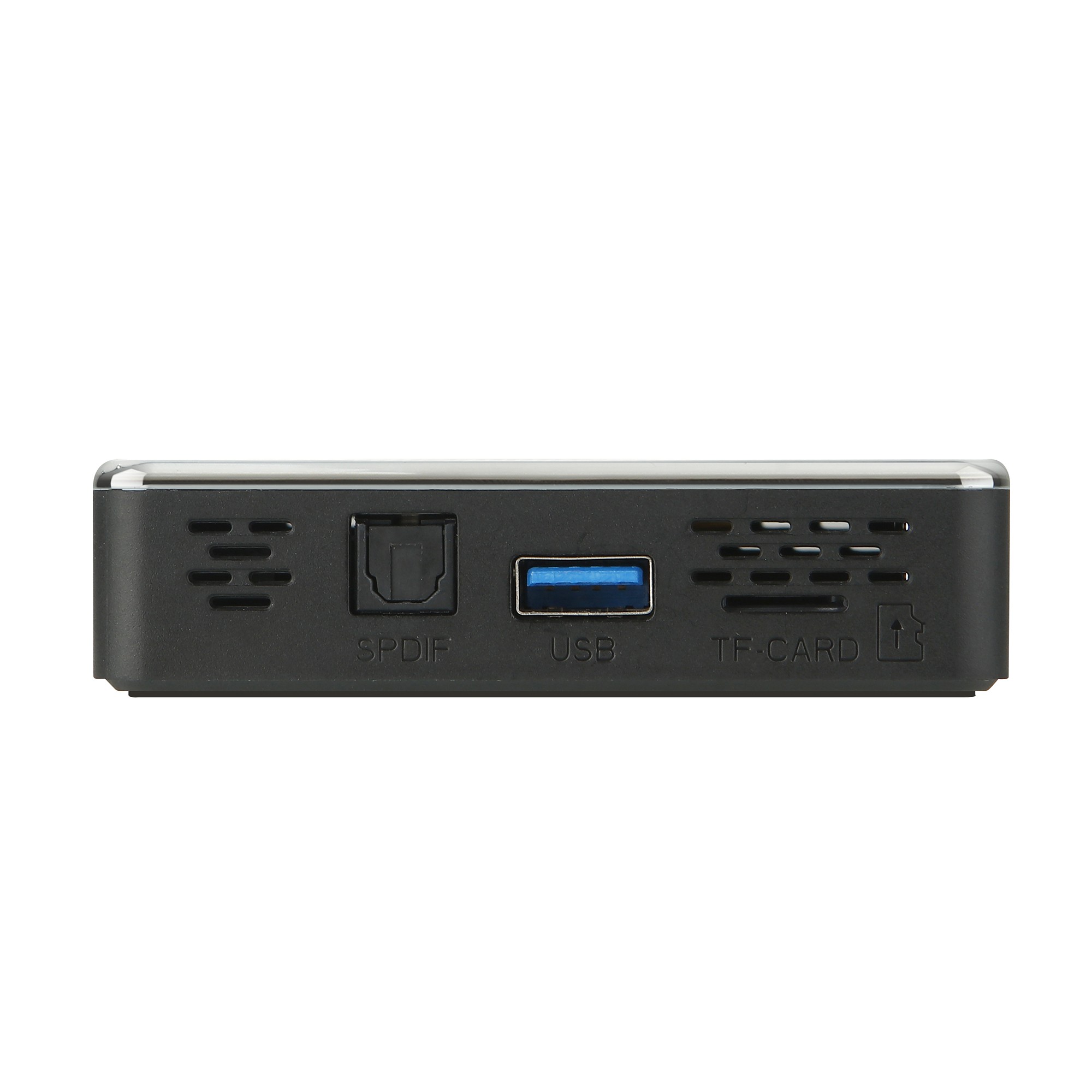

Interfaces:
HDMI Output	HDMI(1.4 and 2.1b) supports maximum 4K@60fps output(HDCP2.2)
USB Ports	1USB 2.0 OTG + 1USB 2.0 host
Optical Output	1*SPDIF
Led Work Light	Support

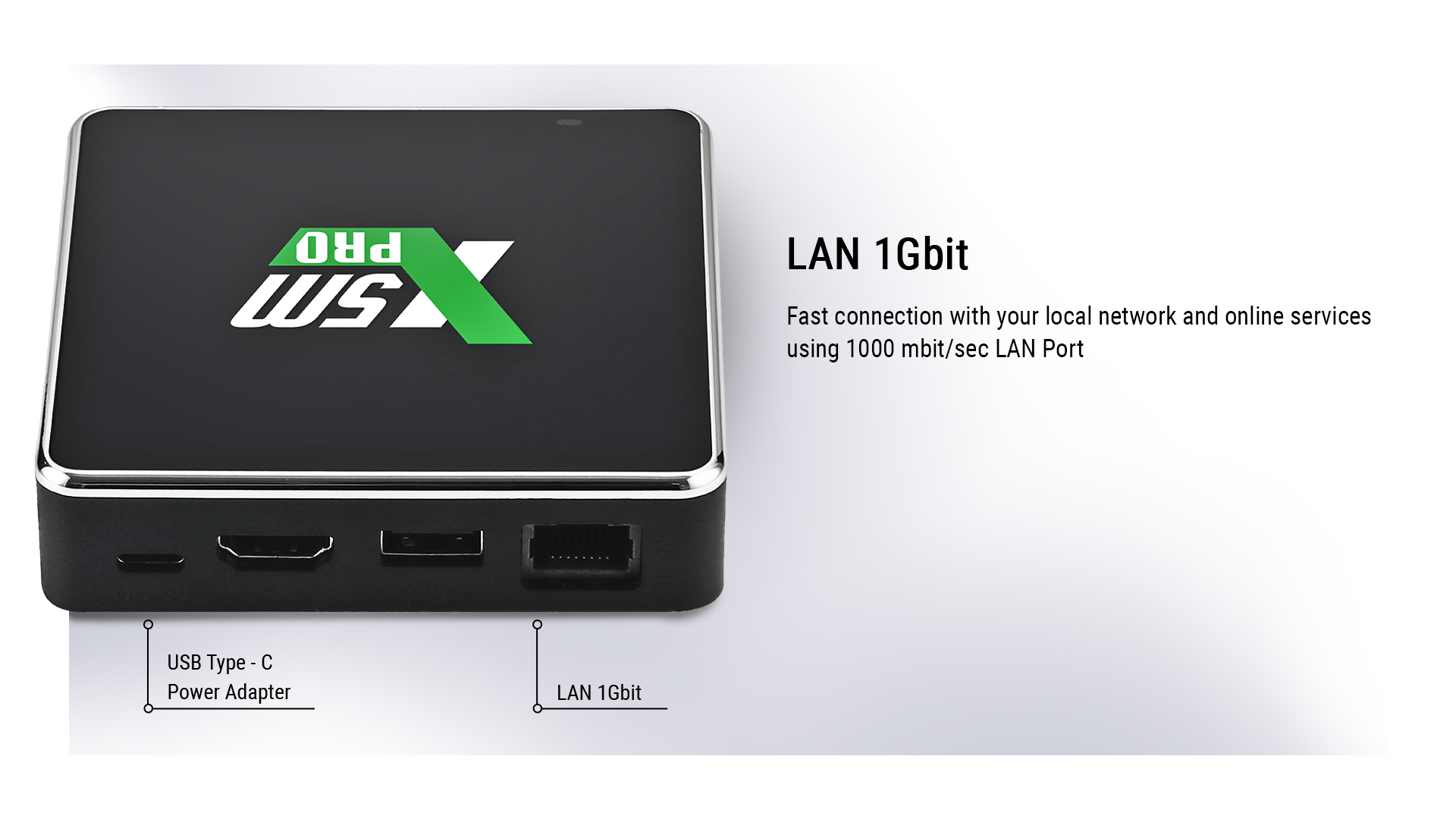

Network	1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface)
Media Parameters:
Audio	Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable 7.1/5.1 Built-in SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC
Video Output	Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4KX2K
Video CODEC	− AV1 MP-10@L5.1 up to 4Kx2K@60fps − VP9 Profile-2 up to 4Kx2K@60fps − H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps − AVS2-P2 Profile up to 4Kx2K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension	Support Google Play & APK install
Other Parameters:

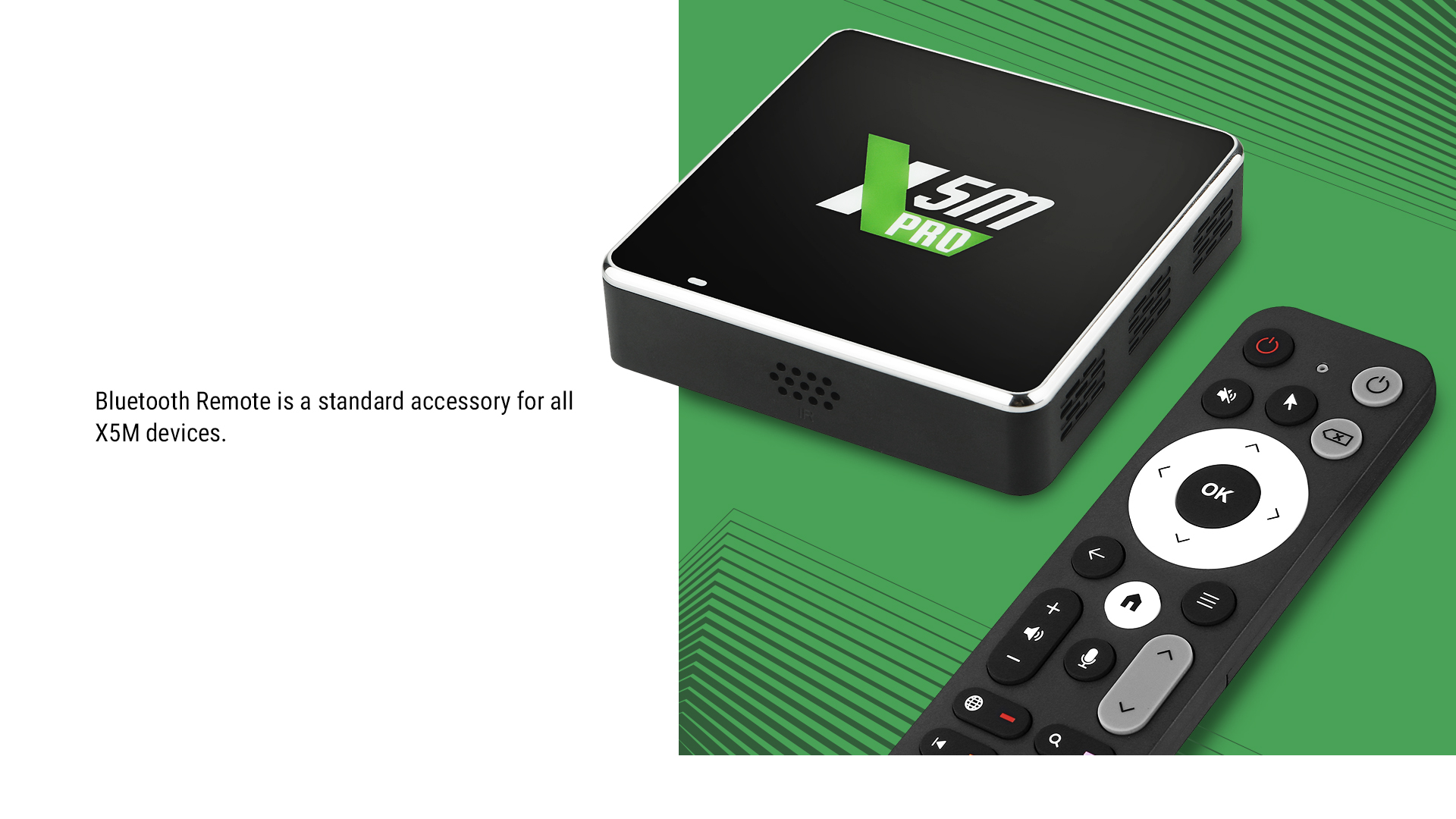

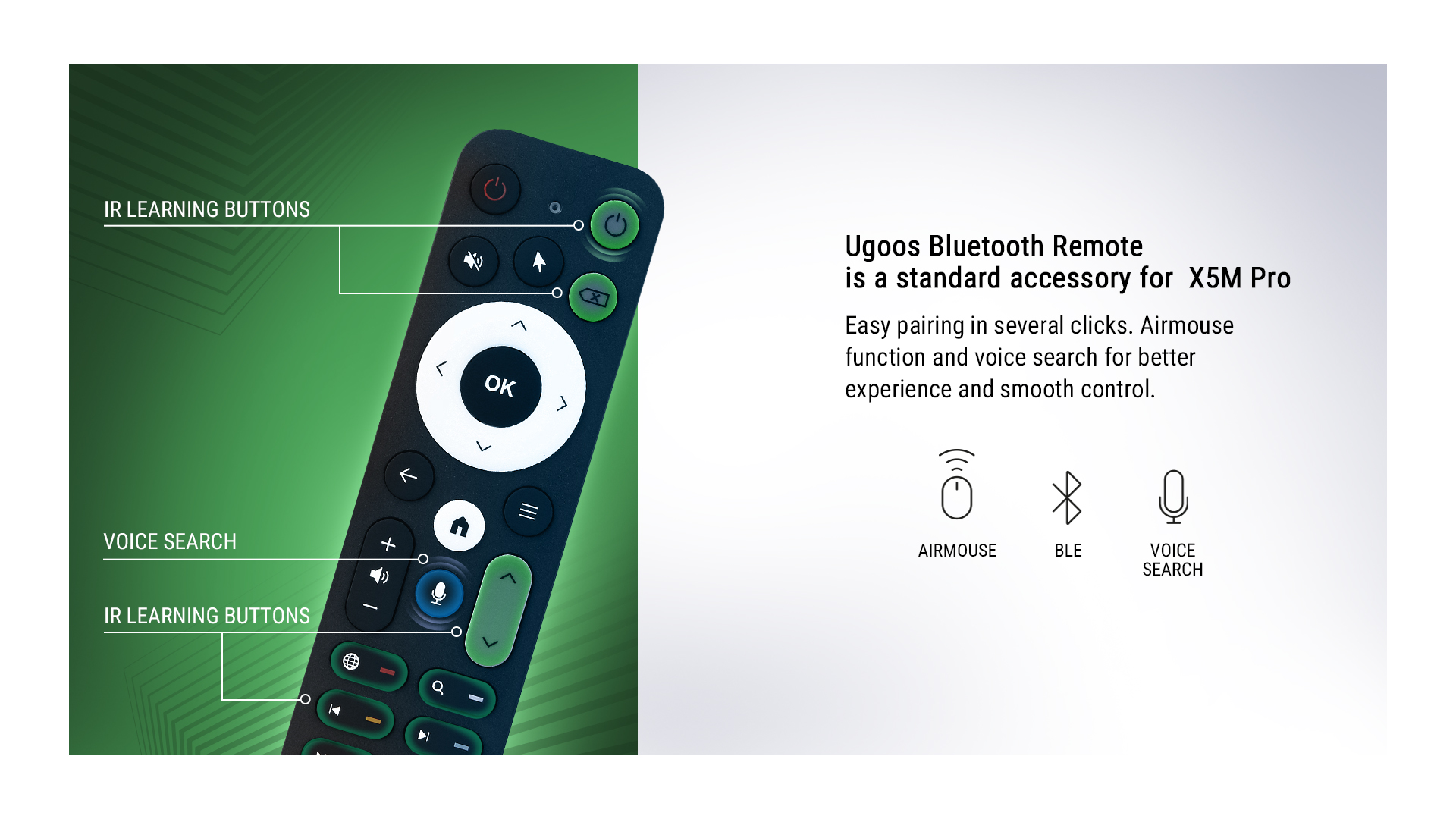

Remote Control	BT remote with Voice+Gyro
Humidity Environment	5%-90%(No condensation）
Certificates	CCC, CE, FCC, Wi-Fi

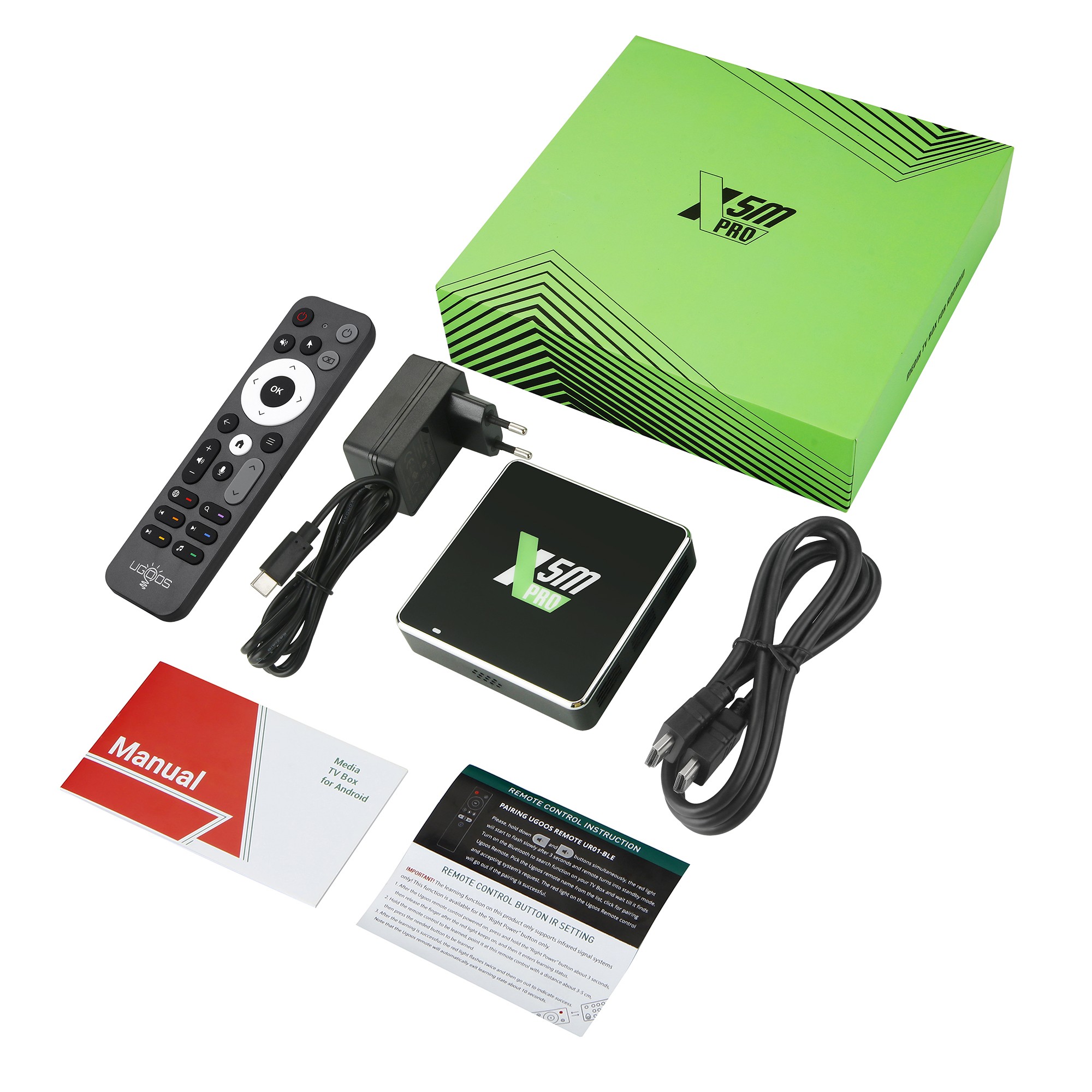

Package:
Dimensions	8.8X8.8x2.2 CM
Gift Box Size	18.7x18x4.8 CM
