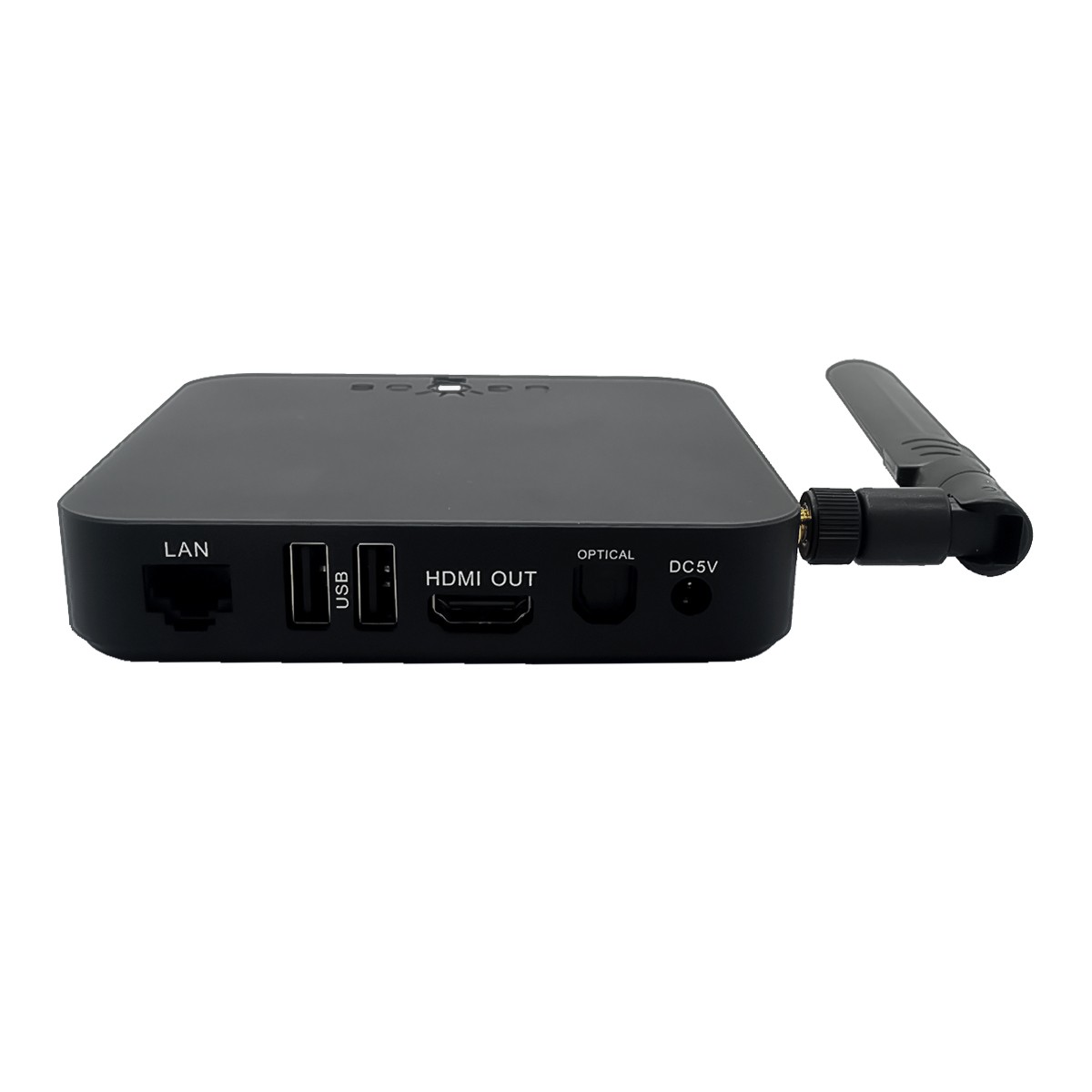

1.8GHz 2G+16G Android 4.4.2/5.1.1 Quad Core RK3288 Smart TV Box
Ugoos Brand UT3S Box - New 1.8GHz 2G+16G Android 4.4.2/5.1.1 Quad Core RK3288 Smart TV Box with High Quality Firmware, Dual band 2.4/5Ghz WIFI, Bluetooth 4.0. H.265 Hardware Playback and 4K Output Support.
Hardware Specs: | |
Operation System | Android 4.4/5.1.1 (Linux Ubuntu or Dualboot is optional) |
Language | Chinese,English...Multi-Language support |
Chipset | RK3288 28nm Cortex-A17 Quad core 1.8ghz |
GPU | Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 4Kx4K output |
SDRAM | DDR3 2GB (optional:1GB/2GB) |
Nand Flash | 16GB Nand Flash(optional:8/32/64GB) |
Storage Extension | Support Micro SD(TF), Up to 32GB |
Network | 2.4GHz/5GHz WiFi 802.11 b/g/n and 802.11 a/c. Support LAN 100M/1000M Base-T |
Bluetooth | 4.0 |
Power Supply | DC 5V/3A |
Interface: | |
HDMI | 1 x HDMI Out (A type Female), HDMI2.0, Support 4K×2K decode output |
USB Port | 4 x USB Host |
Data Output | 1 x SPDIF |
Card Reader | 1 x Micro SD card (MMC card) reader |
AV Out | 1 x 3.5mm Headphone Jack |
Network | 1 x RJ45 LAN Port |
Power Supply | 1 x DC Jack(2.1mm) |
Antenna | External DualBand WiFi Antenna |
Media Parameter: | |
Audio Container | Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc Audio formats.Muliti -EQ mode,Support Synchronized lyrics and full-page lyric display. |
Audio Out | HDMI Data Output |
Video Decoder | MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, |
Full video format decoding support. Support H.265 hardware decoding. Support format MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC |
|
Video Encoder | H.264, H.265, VP8, MVC(1080P) |
Resolution | HDMI output: Support 4Kx2K ( 3840*2160) |
H.264, H265 Data Rate: | Up to60Mbps |
Image Browser | Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8192x8192. |
Text-Reading | Support TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install). |
Software Extension | Support Google Play APK install |
DLNA,Wimo Protocol | Support DLNA,Wimo Protocol |
Remote Control | Support Smart phone remote control、2.4GHZ wireless air mouse/Remote controller. |
IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK install) |
Office Software | WORD/EXCEL/PDF(Depends on APK install) |
Certificate | CE, FCC |
Other Parameters: | |
Operation Temperature: | -10~40℃ |
Storage Temperature: | -20~50℃ |
Humidity Environment | 5%-90%(No condensation) |
Package: | |
Dimension | 116*115*22mm |
Net Weight | 285gm |
Carton Box Size | |
Gift Box Size | 155*145*85mm |
Gross weight | 815gm |
Android 7.1.2 firmware V4.0.0 BETA for Ugoos UT3/UT3s/UM3
2018-04-24 09:16:51
Download 1.4 GiBAndroid 5.1.1 FW V3.1.0 for UM3/UT3/UT3S/UT3+
2017-05-24 09:16:21
Download 443.8 MiBAndroid 5.1.1 Firmware V3.0.9 for UM3/UT3/UT3S/UT3+
2017-02-28 09:15:57
Download 511.51 MiBUgoos Kodi based on RKMC 16.1 fork 31.01.2016
2016-11-01 09:15:32
Download 69.01 MiBUgoos Kodi based on RKMC 16.1 fork
2016-07-14 09:15:11
Download 62 MiBAndroid 5.1.1 FW V3.0.7 for UT3
2016-07-14 09:14:45
Download 402.14 MiBAndroid 5.1.1 FW V3.0.7 for UT3s
2016-07-14 09:14:18
Download 403.19 MiBAndroid 5.1.1 Firmware V3.0.6 for UT3S
2016-05-24 09:13:51
Download 430.6 MiBAndroid 5.1.1 Firmware V3.0.4 for UM3/UT3/UT3S
2016-01-27 09:13:26
Download 0 Bvideo patch 23.976 fps testing
2015-08-07 09:12:57
Download 501 MiBV2.2.0 firmwares folder for UM3/UT3/UT3S
2015-08-07 09:12:22
Download 0 BDualboot firmware: Xubuntu 15.04/Android 4.4 firmware v.0.3.1 for UT3S
2015-07-31 09:11:45
Download 878 MiBThis app is intended for remote control your TV-box from phone or tablet pc.
2015-05-06 09:10:27
Download 19.7 MiB© 2009-2021, Ugoos Industrial Co, our Facebook page
