X4Q TV Box Family Series Devices based on Android 11

DESCRIPTION SPECIFICATION DOWNLOADS (5)

X4Q TV Box Family Series Devices based on Android 11

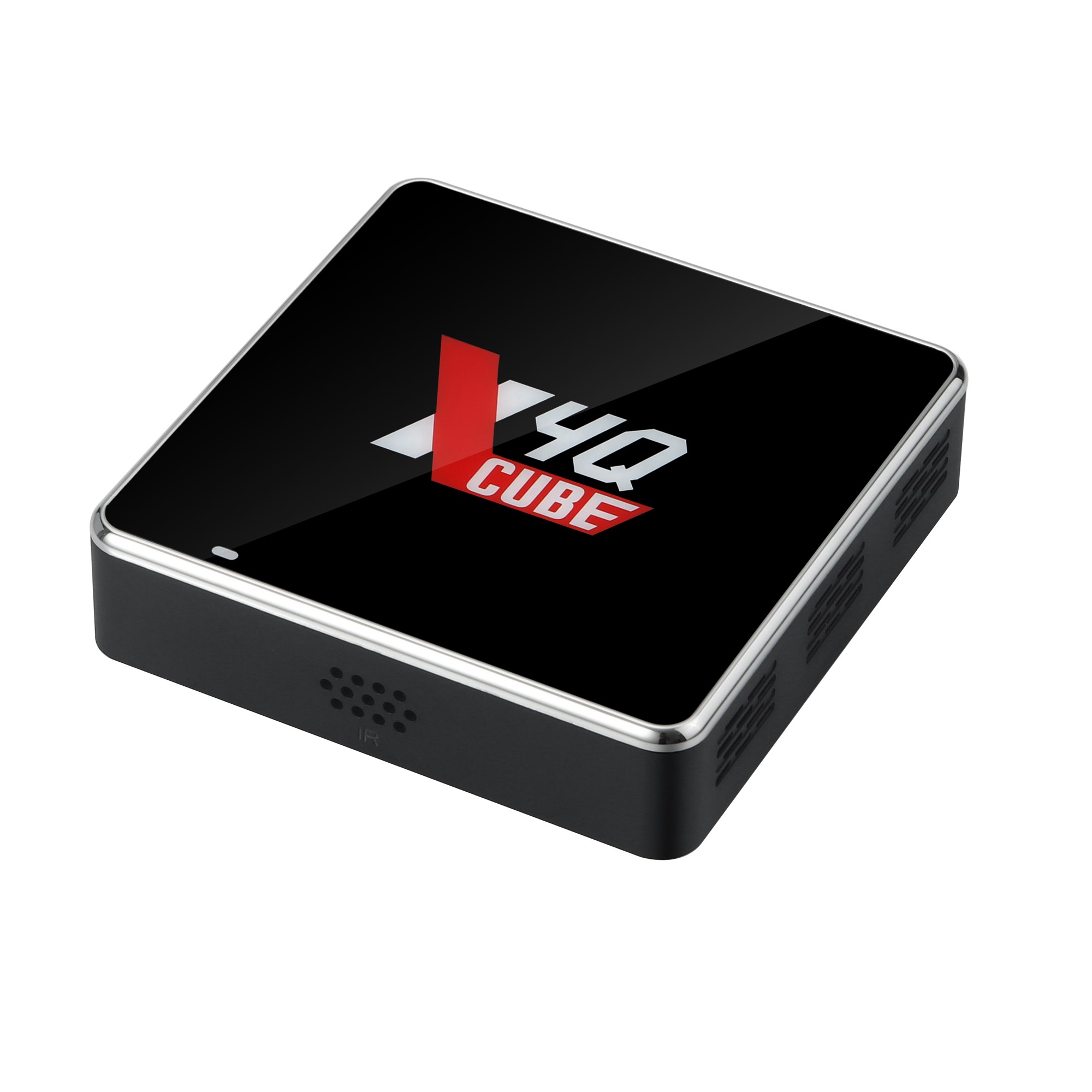

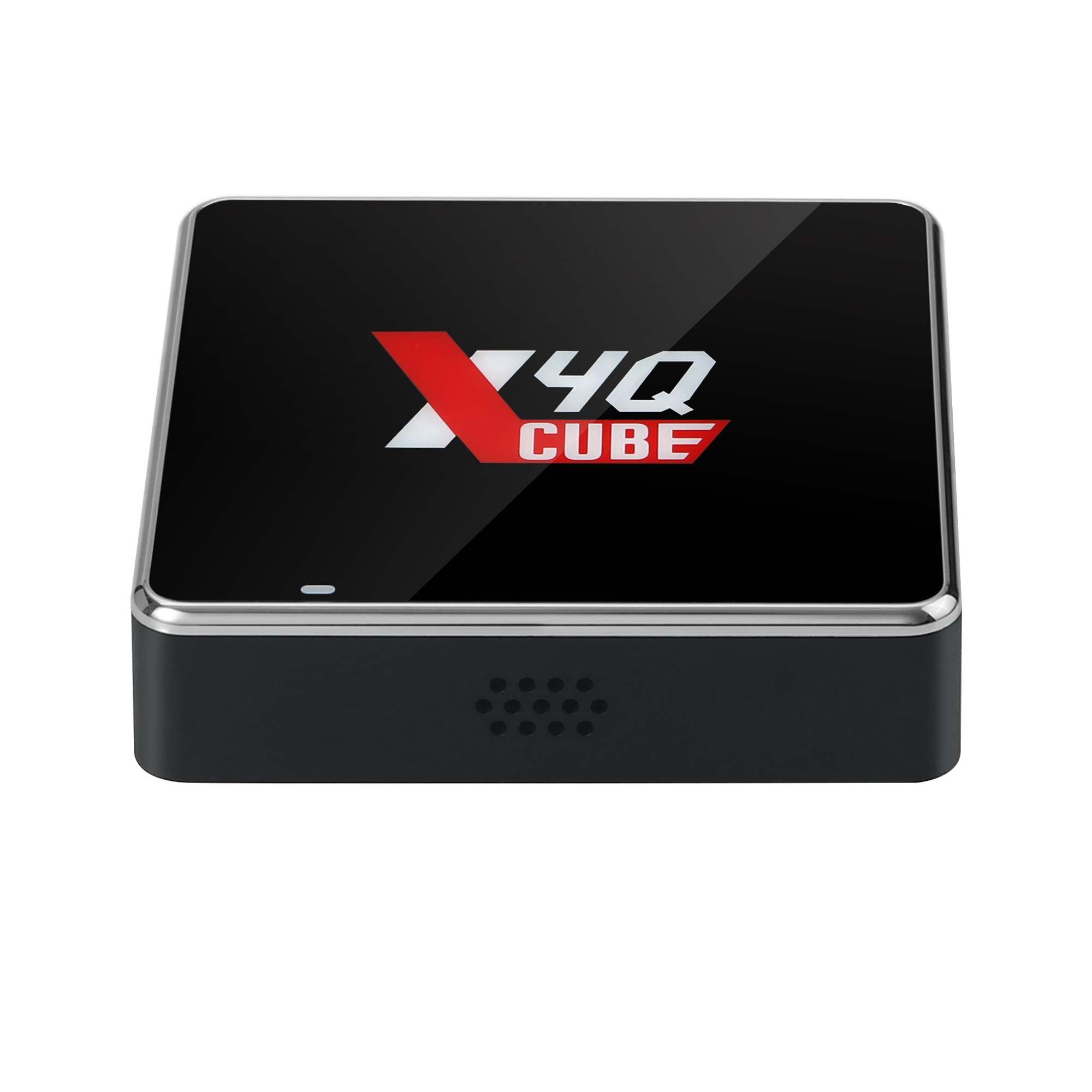

X4Q Cube 2G+16G Android 11 Amlogic S905X4 Smart TV Box

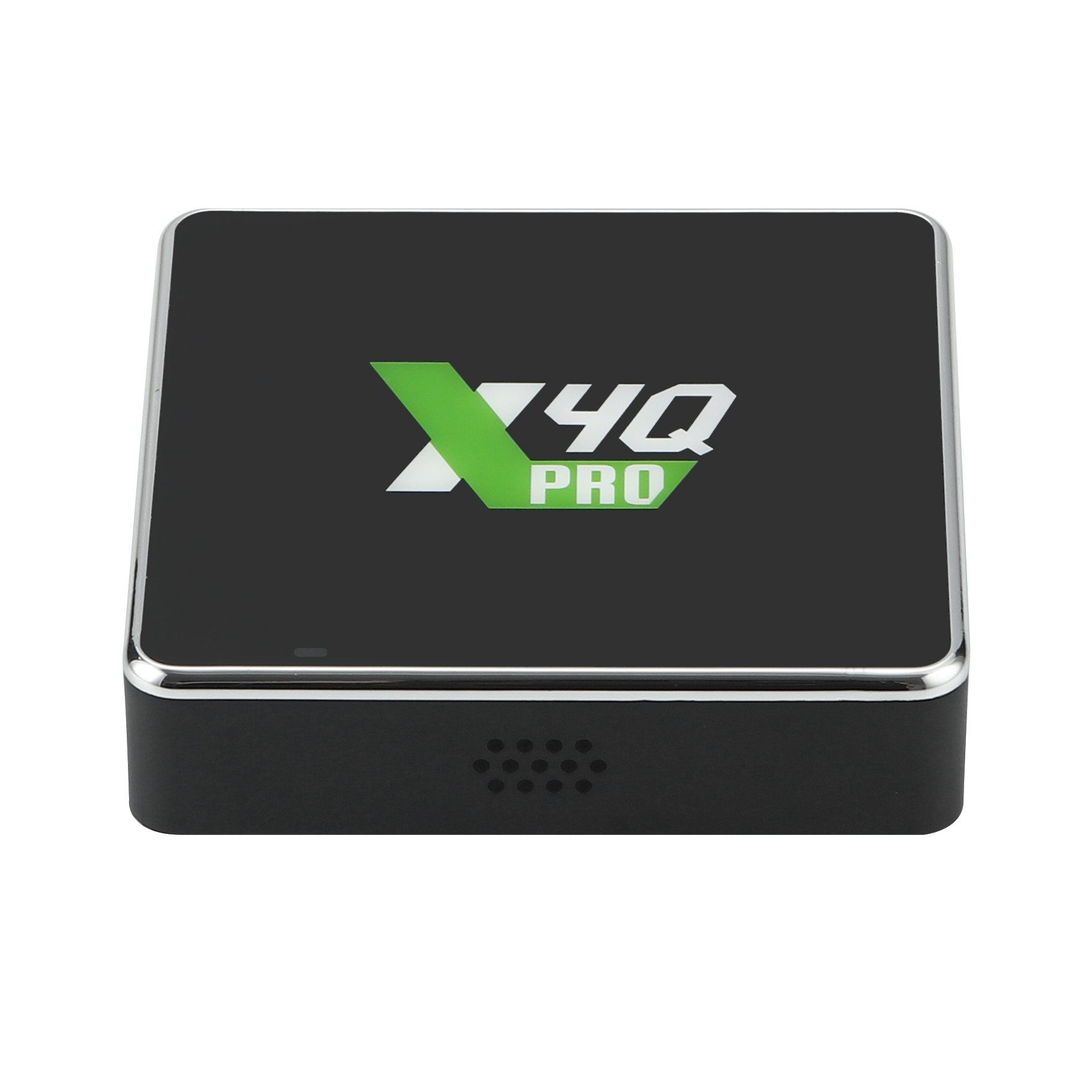

X4Q Pro 4G+32G Android 11 Amlogic S905X4 Smart TV Box

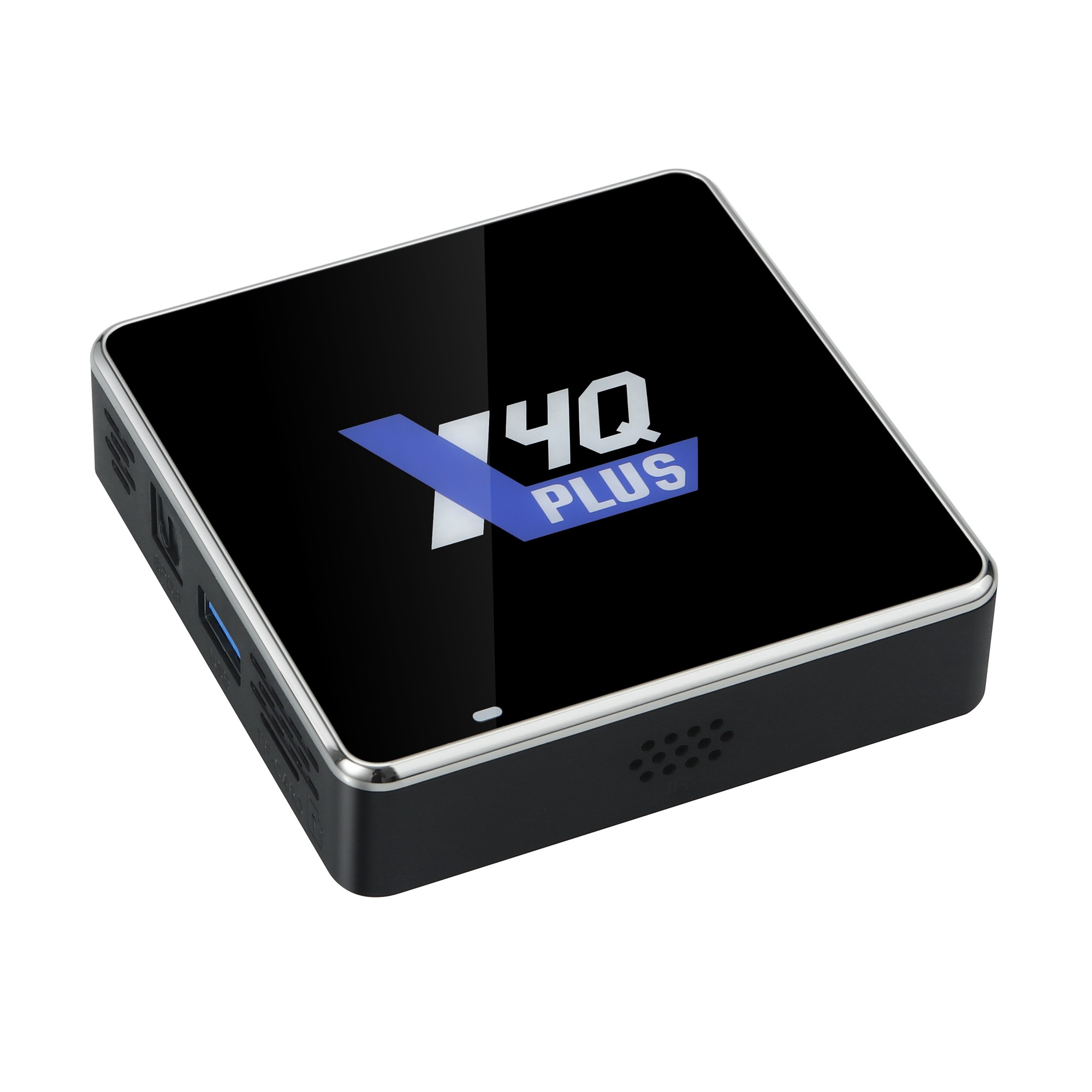

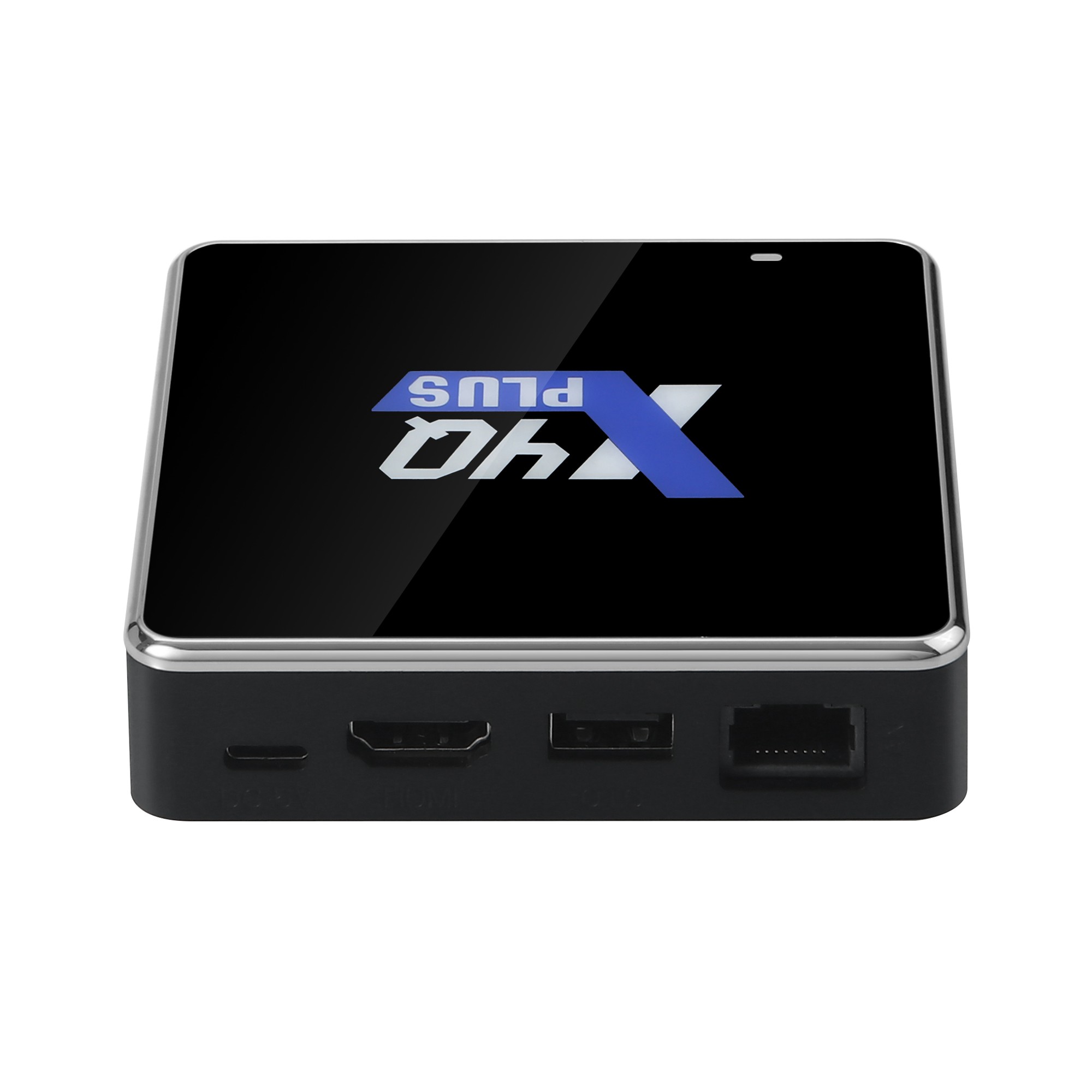

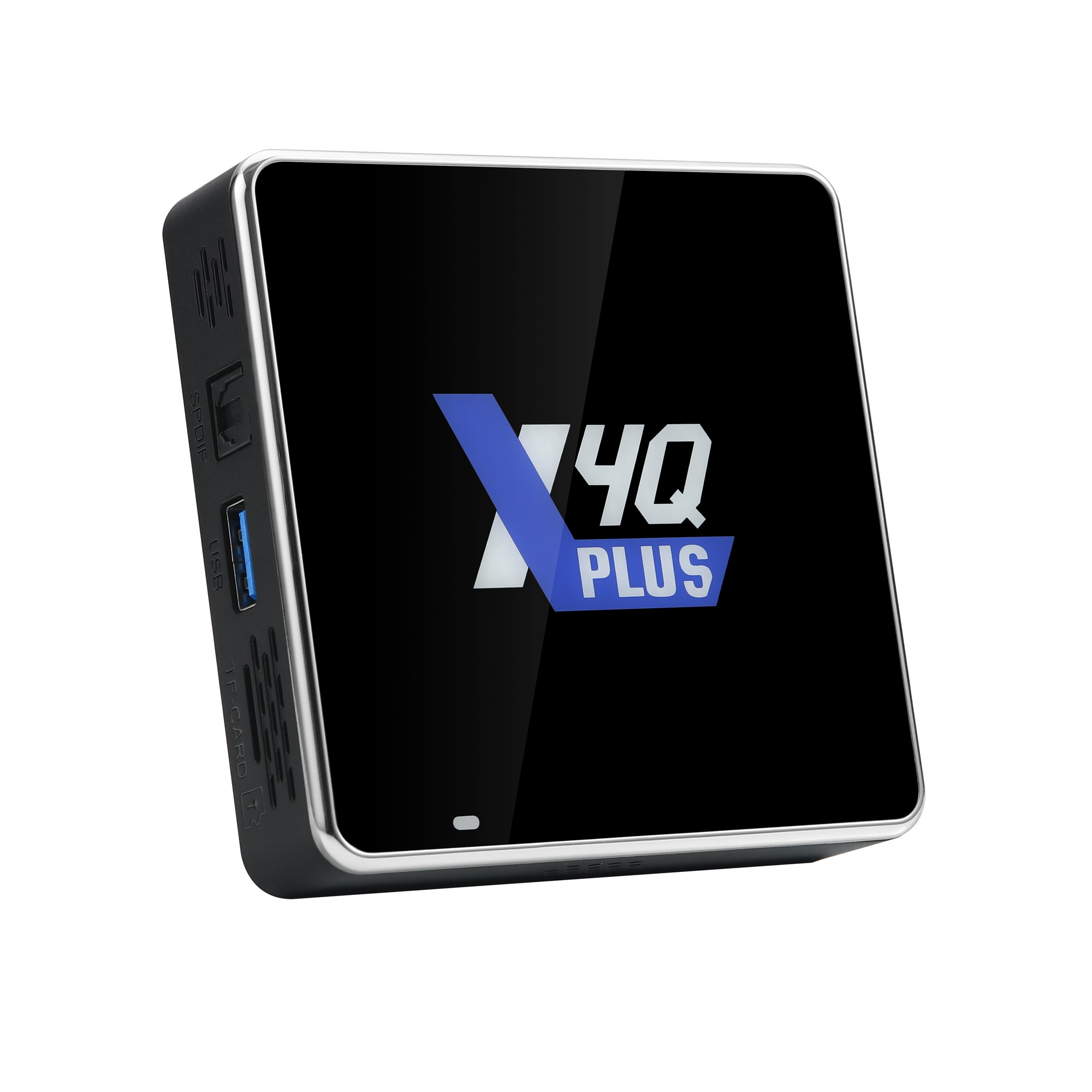

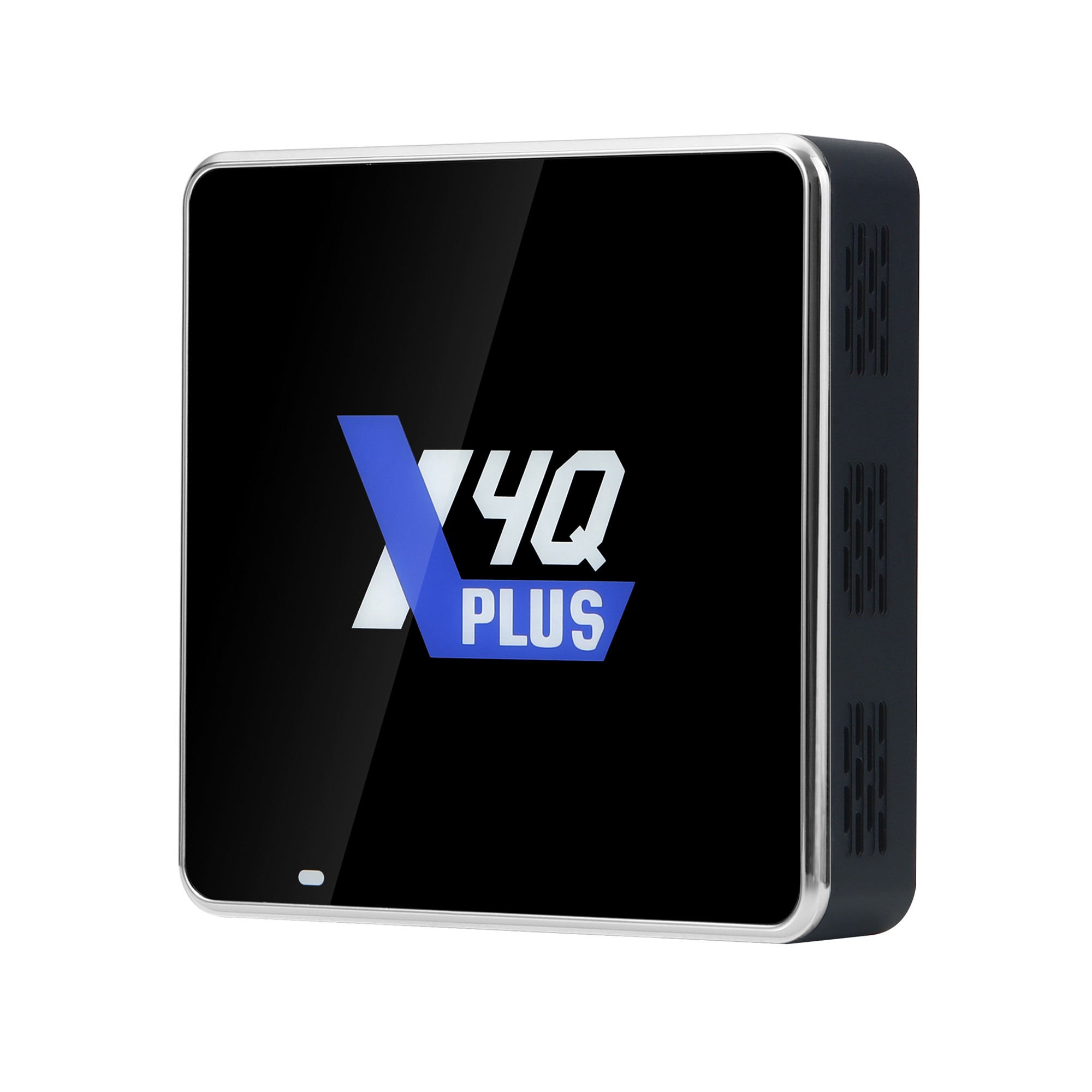

X4Q Plus 4G+64G Android 11 Amlogic S905X4 Smart TV Box

X4Q Extra 4G+128G Android 11 Amlogic S905X4 Smart TV Box

Description:

X4Q Family is a big rework of the X4 Family with following advantages:
1. Housing rework.

2. New WIFI & BT antenna formation.

3. Push pin with compression springs heatsink technology.

4. All X4Q devices come with Ugoos Bluetooth remote

5. Two SoC options for wide range of tasks

TV Box Family Series Devices based on Android 11

Hardware Spec:

Hardware Specs*:
Operation System	Android 11
Language	English, Chinese ...Multi-Language support
CPU	Amlogic S905X4 with Quad-Core Cortex-A55 12nm and Amlogic S905X4-J with Quad-Core Cortex-A55 12nm for X4Q Extra
GPU	ARM Mali-G31MP2 Open GL ES 3.2 Vulkan 1.0
SDRAM	LPDDR4 2GB or 4GB for X4Q Pro and X4Q Plus
Storage Capacity (Flash)	16GB (EMMC) or 32GB for X4Q Pro, 64GB for X4Q Plus and 128GB for X4Q Extra
WIFI	2.4G+5G The wireless module complies with IEEE 802.11 a/b/g/n/ac support 2T2R MiMO technology
Bluetooth	Bluetooth 5.1 with LE technology
The Extended Storage	TF Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply	DC 5V/2.5A via USB Type - C
HDR	Support
Interfaces:
HDMI Output	HDMI 2.0 Type-A Support maximum 4Kx2K@60fps 10Bit + 1080P60 10Bit
USB Ports	1USB 3.0 host, 1USB 2.0 OTG
Optical Output	1*SPDIF
Led Work Light	Support
Network	1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface)
Power Supply	1* USB Type - C Jack
Media Parameter:
Audio Container	MP3,AAC,WMA,RM,FLAC,OGG
Audio Out	Supports MP3, AAC, WMA, RM, FLAC, Ogg Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC	AV1 Video Codec Support – VP9 Profile-2 up to 4Kx2K@60fps – AV1 MP-10@L5.1 up to 4Kx2K@60fps – H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps – AVS2-P2 Profile up to 4Kx2K@60fps – H.264 AVC HP@L5.1 up to 4Kx2K@30fps – MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) – WMV/VC-1 SP/MP/AP up to 1080P@60fps – AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps – MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) – MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) – RealVideo 8/9/10 up to 1080P@60fps – Multiple language and multiple format sub-title video support – MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) – Supports JPEG thumbnail, scaling, rotation and transition effects – Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
Software Extension	Support Google Play & APK install
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol
Remote Control	Remote controller
IM Software	Support Skype/QQ/MSN/GTALK (Depends on APK ）
Office Software	WORD/EXCEL/PDF(Depends on APK install)
Other Parameters:
Humidity Environment	5%-90%(No condensation）
Certificate	CE, FCC
Package:
Dimensions	888822mm
Net Weight	550g

* Devices' parts or equipment may be changed without additional notification.

Downloads:

Android 11 firmware V. 1.2.4 for Ugoos X4Q Family

1. Added video picture settings: noise reduction, sharpness
2. Added setting for change number of volume regulator steps
3. Fixed some issues with high-resolution audio playback
4. Added support for some TrueHD streams in native video players
5. Fixed support of some DTS-HD audio tracks
6. Added support for DTS-HD audio passthrough in native video players
7. Added Uplayer v.0.2.0 as preinstalled application
8. Hide AOSP keyboard when pressing DPAD_UP button
9. Added UR02 update service
10. Video codecs update
11. GPU driver update
12. Improved Samba server stability
13. Added ability to take bug reports from settings (About page), quick settings on the top panel and as a menu button option
14. Added long press event for Home button
15. Added ATV applications support to Launcher3
16. Added ATV applications to select in automatic frame rate feature
17. Added network and VPN names to hardware monitor
18. Fixed slow playback after rewinding for some H.264 streams
19. Added UI mode setting for applications
20. Added ability to disable media file scanning for CIFS and NFS clients
21. Fixed issues with some applications
22. Some other system changes

2024-11-12 08:38:24

Download 705.7Mb

Android 11 firmware V. 1.2.0 for Ugoos X4Q Family

1. Automatic frame rate function:
    - fixed some rare system crashes
    - new frequency switching policy
    - fixed some problems with returning display mode
2. Fixed HDMI volume control when CEC disabled
3. Added setting to disable volume regulator in applications
4. Added split screen function to recent applications window
5. Fixed Gallery application crash
6. Automatic detection of default density based on framebuffer size
7. Removed Lock UI setting
8. Added support for 1080p 120Hz display mode
9. Fixed issue with resetting the display color mode
10. Added Dolby Vision mode setting (X4Q Extra)
11. Magisk updated to version 27.0
12. Some other changes

2024-04-22 07:05:26

Download 657,4 MB

Android 11 firmware V. 1.1.9 for Ugoos X4Q Family

1. Allowed transfer of all file types via Bluetooth
2. Added video picture settings
3. Added ability to open video picture settings using Menu button
4. Magisk updated to version 26.3
5. Some other changes

2023-11-02 07:33:08

Download 705.7Mb

Android 11 firmware V. 1.1.7 for Ugoos X4Q Family

1. Added option to turn off always visible Bluetooth
2. Fixed Bluetooth remote controller connection lost after shutdown by air mouse
3. Fixed text input by mouse in settings
4. Fixed focus reset in application selection window
5. Fixed support of some applications
6. Changed screen saver and energy saver timers setting
7. Now one-shot timer always resets after any power action
8. Added framebuffer size setting
9. Changed logic of lock UI size option
10. Added font and density settings
11. Fixed rare bug when new audio passthrough track can't be start
12. Fixed playback of FLAC and WAV audio tracks
13. Added PCM format setting for choose supported formats
14. Added AC3 decoder
15. Added USB audio settings
16. Added always SDR policy
17. Added new option: enhanced HDR to SDR
18. Some other changes for system stability

2023-05-11 08:17:00

Download 658,4 MB

Android 11 firmware V. 1.1.4 for Ugoos X4Q Family

1. Fixed random disconnect Bluetooth remote controller and some other problems
2. Added ability to set sleep timer once; added option to power menu
3. Fixed problem that caused color mode to reset after sleep
4. Fixed some HDMI hotplug errors
5. Fixed synchronization Google account problem

2022-12-21 14:03:16

Download 631.7 MB
